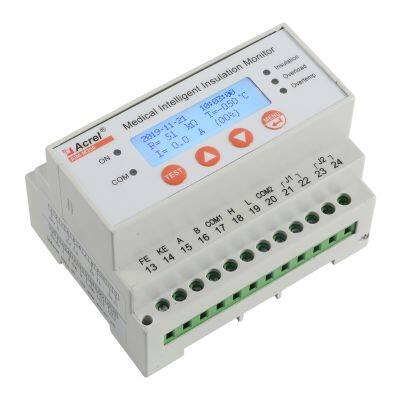

Acrel Hospital IT Insulation Monitor Has Rich Display and Alarm Indication Functions Friendly Interface and Easy Operation

Acrel Electric Co., Ltd

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Business Type:

Manufacturer

Year Established:

2003

Factory Size:

3,000-5,000 square meters

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

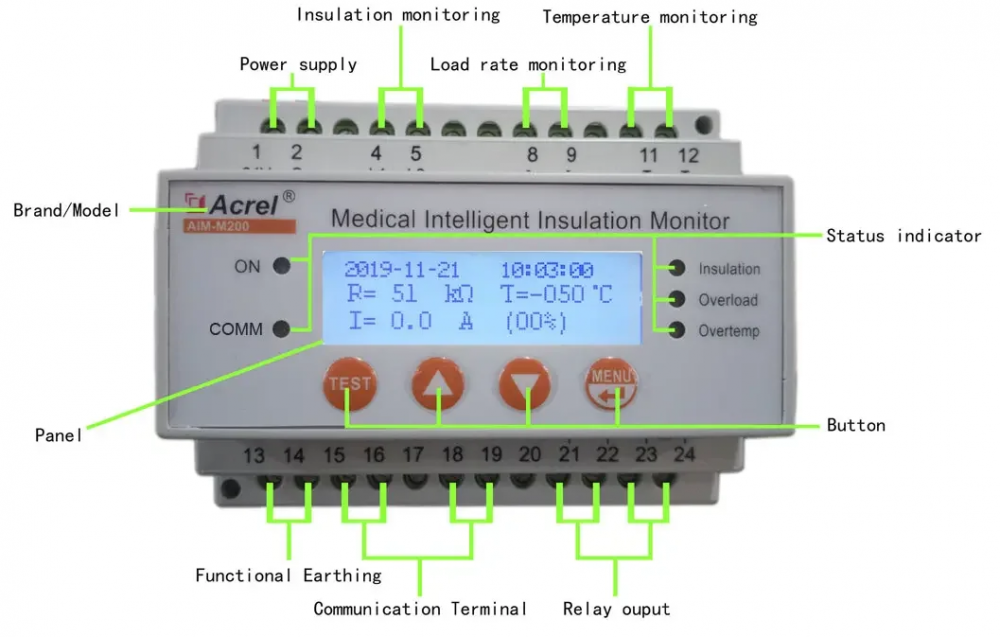

The AIM-M200 monitors the insulation resistance of medical IT system, At the same time, the load current and temperature of the IT

system transformer is monitored. In combination with ASG100, AIL100 series insulation fault locators and the appropriate measuring

current transformers, the AIM-M200 is designed to support insulation fault location

Parameters/Model		AIM-M10	AIM-M100	AIM-M200
Auxiliary power	Voltage	AC220V(±10%)		DC24V(±25%)
	Frequency	50/60Hz		—
	Power consumption	<5VA	<8VA	<3VA
Insulation monitoring	Insulation resistance measurement range	10~999kΩ
	Accuracy	0~±10%
	Alarm value range	50~999kΩ
	Response time	<2s
	Measuring voltage	<12V
	Measuring current	<50uA
Current Monitoring	Measurement value	2.1~50A
	Alarm value range	5~50A
	Accuracy	5%
	Display method	Value display	Percentage display	Value and percentage display
Temperature Monitoring	Sensor	PT100
	Measuring range	-50~+200℃
	Alarm value range	0~+200℃
Power output	24VDC	2W	None
Alarm Output	Output	1 relay	2 relay(programmable)	2 relay (not programmable)
	Contact Capacity	AC 250V/3A DC 30V/3A
Communications		1 RS485 , Modbus-RTU	2 RS485 , Modbus-RTU	1 RS485, Modbus-RTU
				1 CAN, custom protocol
Environment	Operating temperature	-10~+50℃
	Storage temperature	-20~+70℃
	Relative humidity	5%-95%,No condensation
	Altitude	≤2500m
Rated impulse voltage / pollution degree		4KV/3
EMC & EMR		IEC61326-2-4
