ChinaHome > Products > hospital IT insulation monitor > Acrel Using CAN bus technology, insulation faults of 8 circuits can be located Insulation fault locator AIL150-8

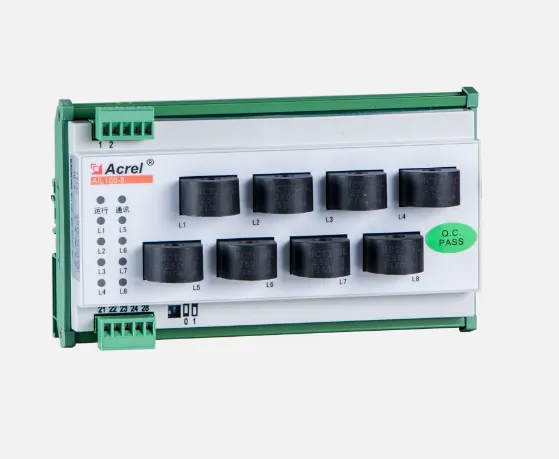

Acrel Using CAN bus technology, insulation faults of 8 circuits can be located Insulation fault locator AIL150-8
Negotiable
/ Piece
1 Piece(Min. Order)
- T/T L/C
You May Like
-
Acrel Accurately locate the circuit AIL150-4 Insulation fault locator where the insulation fault is located
-
Acrel for hospital operating room AID150 medical digital centralized alarm insulation display instrument indicator device
-
Multi channelpower meter AMC100-FA48 Monitor AC outlet 2channel three phase voltage and48 channel single phase full power parameters
-
Acrel panel AC energy monitoring device 1 channel RS485 communication Can be used in data centers, column cabinets, AMC100-FA30
-
Acrel AMC100-FAK48 Multi channel digital ac energy meter Widely used in data centers, column cabinets, etc.1channel RS485
-
Acrel AMC100-FAK30 AC multi circuit power meter 30 channels of active switch status detection, 1 channel of RS485 communication
Product Description

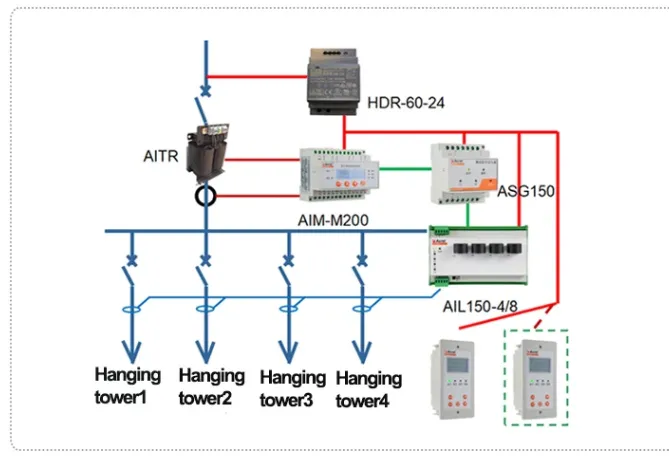

The insulation fault locator AIL150-4/-8 in conjunction with AIM-M200 medical intelligent insulation monitor and ASG150 test signal generator, are designed for insulation fault location in medical IT systems.The locating current generated by ASG150 are detected using the integrated measuring current transformers and evaluated by the insulation fault locators.
● Insulation fault location in AC IT systems
● AIL150-4: 4 measuring channels
● AIL150-8: 8 measuring channels
● LED indicators: On, Comm
● CAN bus
● Auxiliary power supply: DC24V
