Acrel AIM-M100 hospita IT Insulation monitor Dedicated to medical IT systems Alarm in time when failure occurs, easy to operate
Negotiable
/ Piece
1 Piece(Min.Order)
- 100 Piece / Pieces per Month
- T/T
You May Like
-
Acrel hospital IT Insulation monitor Has rich display and alarm indication functions Friendly interface and easy operation
-
Acrel AID10 Alarm and display instrument installed next to the information control panel in the operating or intensive care room
-
DIN Rail Power Meter DJSF1352-RN 0~1000V DC For DC Battery Charging Pile Solar PV LCD Display With RS485 CE Certificate
-
Acrel AID150 medical digital centralized alarm insulation display instrument indicator device for hospital operating room
-
Acrel AMC16Z-FAK48 Electric Muti Channel Monitoring Module Data Center Precision Cabinet
-
48 Circuit Monitoring Data Center Monitor Power Supply Management Server Multi Loop Energy Meter AMC16Z-FAK48
Product Description
AIM-M100 medical insulation monitoringdevice adopts advanced microcontrollertechnology with high integration, compact sizeconvenient installation,intellectualization.digitalization and networking.It is an idealchoice for insulation monitoring of isolationpower supply system in operating room andintensive care unit.

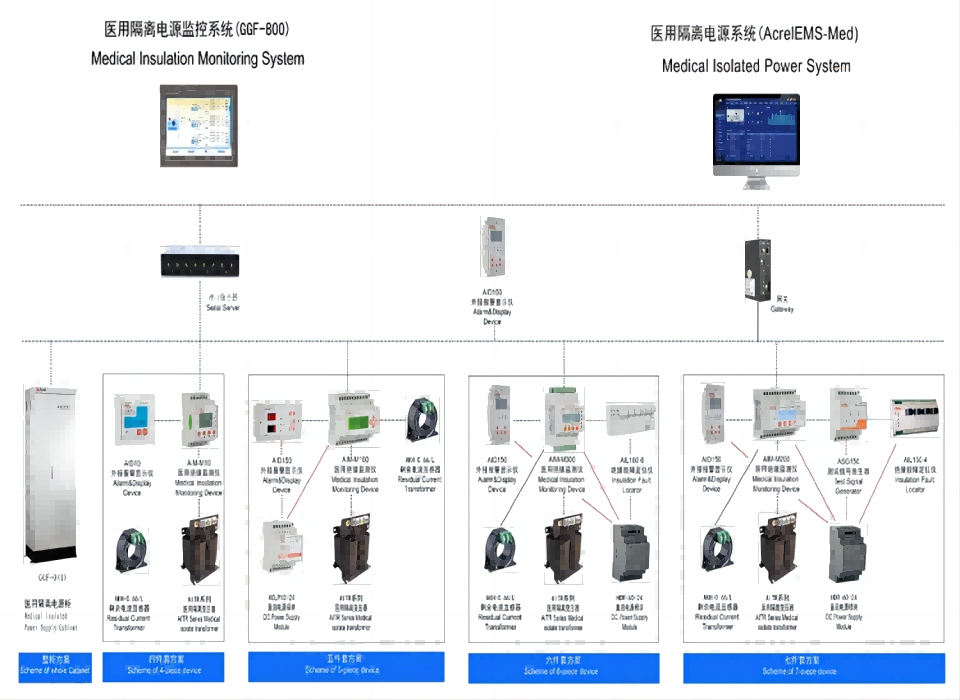

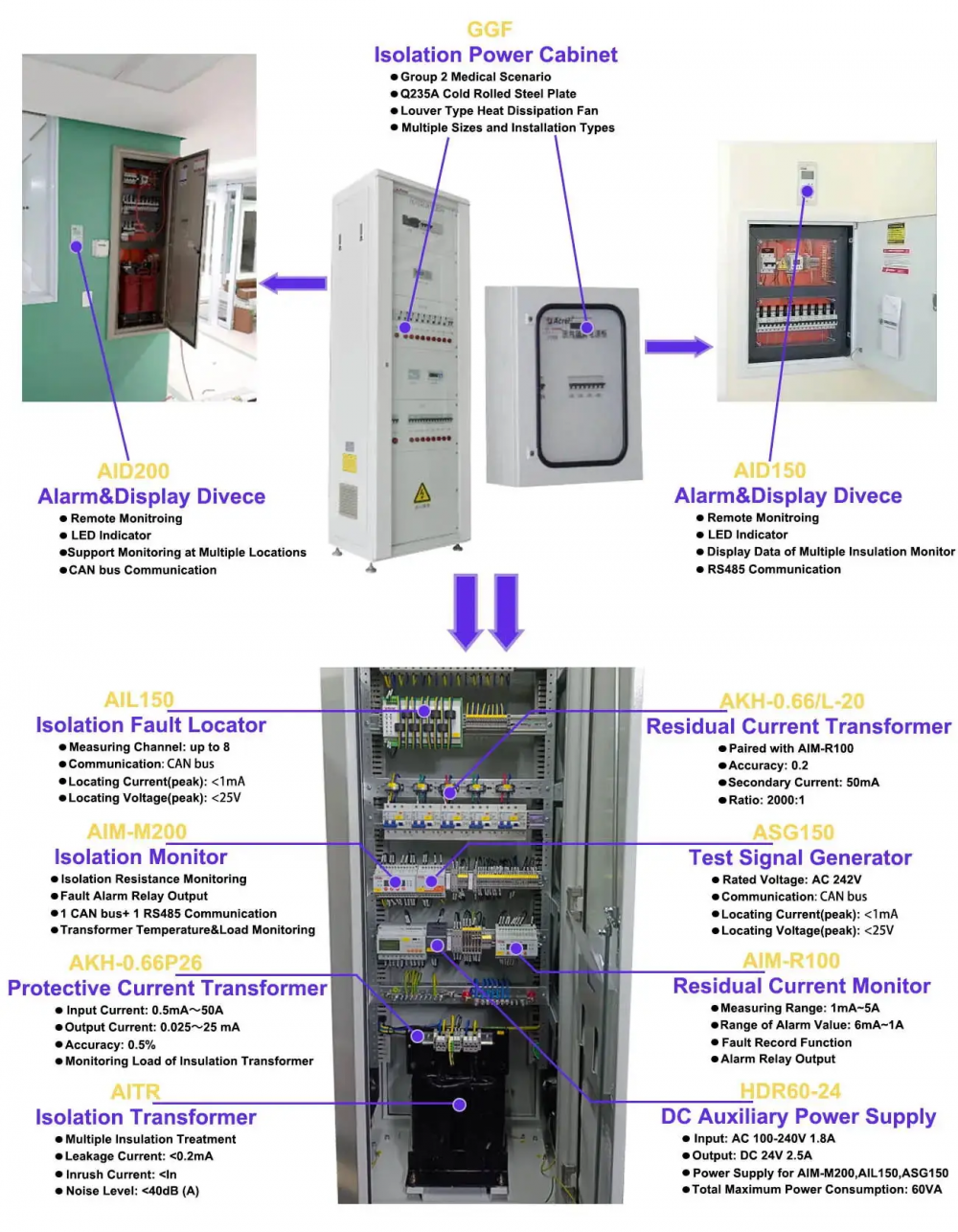

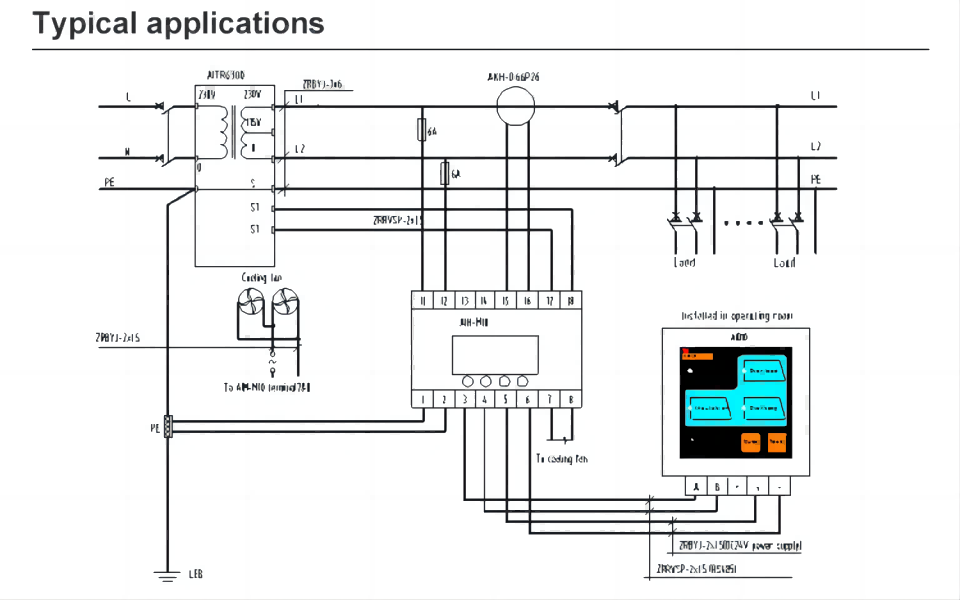

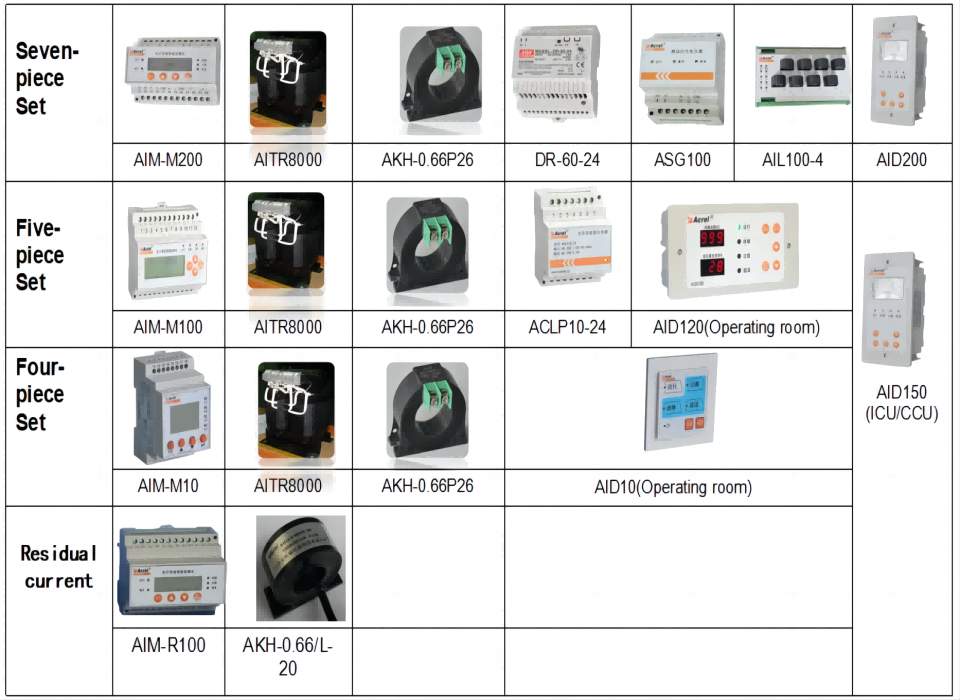

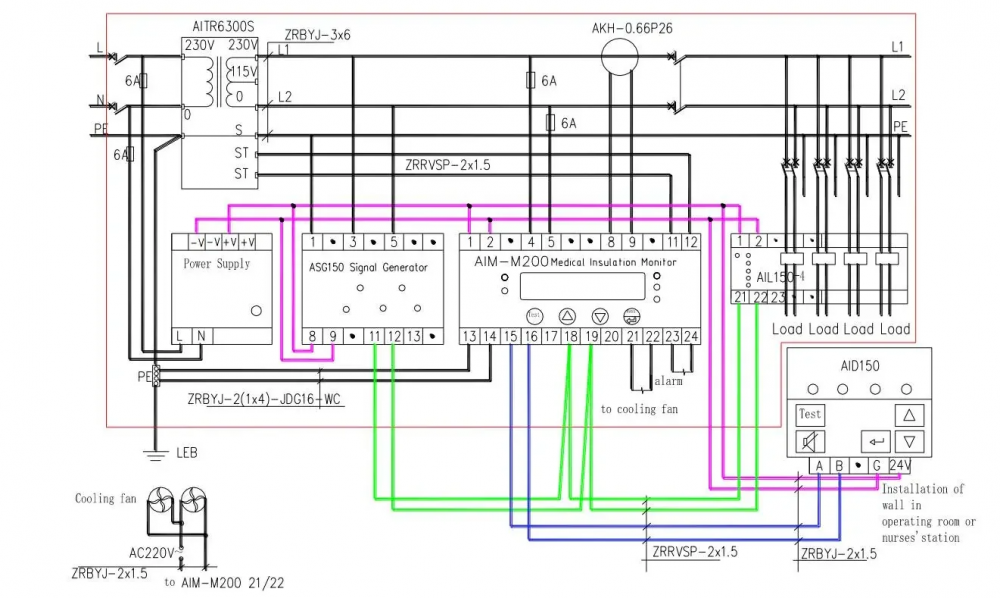

AIM-M100 is usually combined with AITRseries medical isolation transformerAKH-0.66P26 current transformer,ACLP10-24DC power supply module, AlD120/150 alarmand display device
Parameters/Model | AIM-M10 | AIM-M100 | AIM-M200 | |
Auxiliary power | Voltage | AC220V(±10%) | DC24V(±25%) | |
Frequency | 50/60Hz | — | ||
Power consumption | <5VA | <8VA | <3VA | |
Insulation monitoring | Insulation resistance measurement range | 10~999kΩ | ||
Accuracy | 0~±10% | |||
Alarm value range | 50~999kΩ | |||
Response time | <2s | |||
Measuring voltage | <12V | |||
Measuring current | <50uA | |||
Current Monitoring | Measurement value | 2.1~50A | ||
Alarm value range | 5~50A | |||
Accuracy | 5% | |||
Display method | Value display | Percentage display | Value and percentage display | |
Temperature Monitoring | Sensor | PT100 | ||
Measuring range | -50~+200℃ | |||
Alarm value range | 0~+200℃ | |||
Power output | 24VDC | 2W | None | |
Alarm Output | Output | 1 relay | 2 relay(programmable) | 2 relay (not programmable) |
Contact Capacity | AC 250V/3A DC 30V/3A | |||
Communications | 1 RS485 , Modbus-RTU | 2 RS485 , Modbus-RTU | 1 RS485, Modbus-RTU | |
1 CAN, custom protocol | ||||
Environment | Operating temperature | -10~+50℃ | ||
Storage temperature | -20~+70℃ | |||
Relative humidity | 5%-95%,No condensation | |||
Altitude | ≤2500m | |||
Rated impulse voltage / pollution degree | 4KV/3 | |||
EMC & EMR | IEC61326-2-4 | |||
