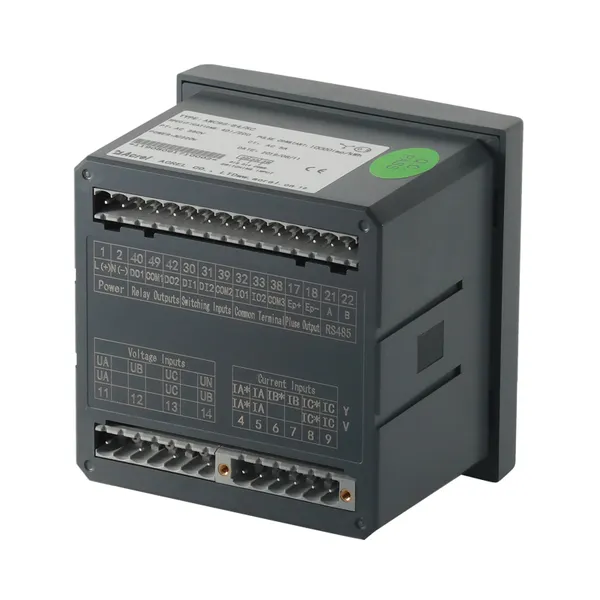

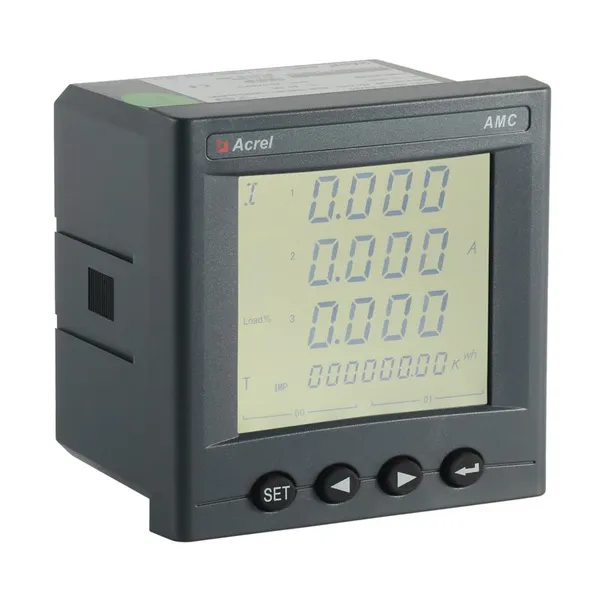

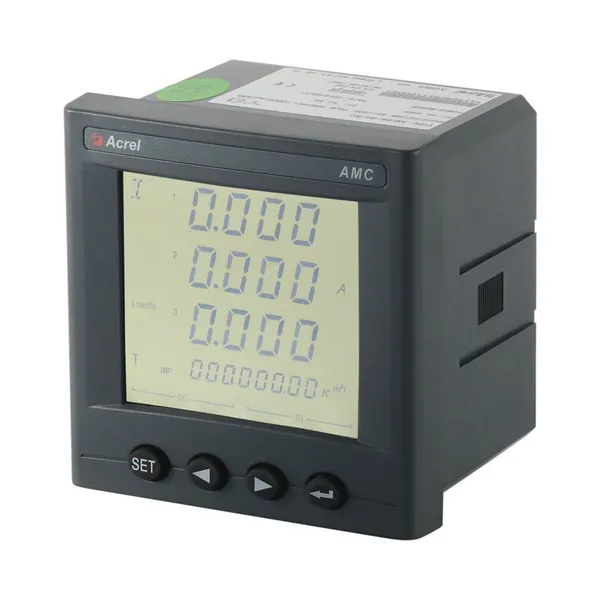

Acrel AMC96L-E4/KC2M With 2 Analog Output AC Smart Power Analyzer Three Phase LCD Display 4DI2DO RS485-Modbus/RTU Protocol
- T/T
You May Like
-
Acrel AC Smart Power Analyzer AMC96L-E4/KCSOE Three Phase LCD Display 4DI2DO RS485-Modbus/RTU Protocol
-
Acrel Motor Protector With RS485 ARD2M-K1 1 Series Integrates Protection, Measurement, Control, Communication, Operation and Mainte
-
Acrel Low Voltage Motor ControlleARD2M K1 5 Series Integrates Protection, Measurement, Control, Communication, Operation and Mainte
-
Acrel Smart Motor Protector ARD2M-25 Series Protect Timeout Start-up Overload Unbalance Short Circuit
-
Acrel Motor Protection Relay ARD2M-100 Series Protect Timeout Start-up Overload Unbalance Short Circuit
-
Acrel ARD2M-250 Blocking Motor Protector Series Protect Blocking Overload Unbalance Short Circuit
Product Description

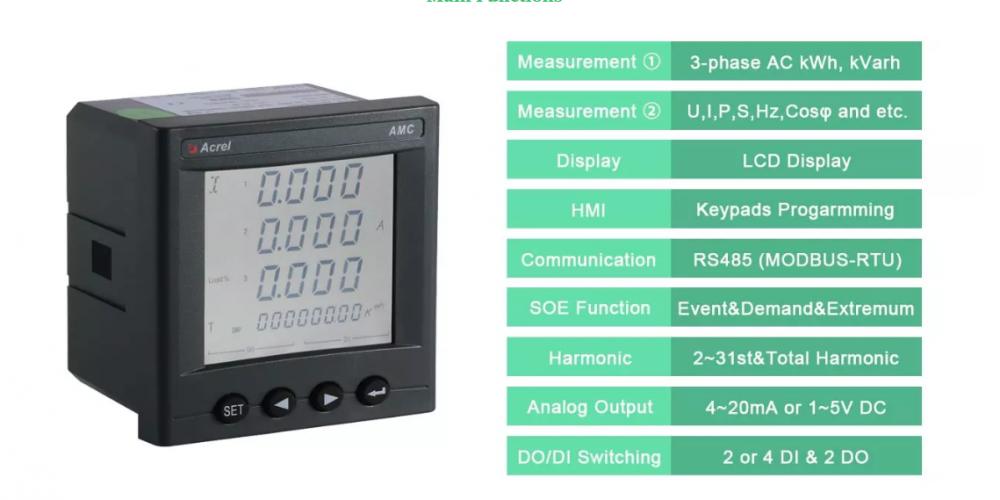

AMC series intelligent power collection and monitoring device is a smart meter designed for power moni
toring needs of power systems, industrial and mining enterprises, utilities, and intelligent buildings. It integrates
measurement of power parameters (such as single-phase or three-phase current, voltage, and active power).
Power, reactive power, apparent power, frequency, power factor) and power monitoring and assessment
management. At the same time, it has a variety of peripheral interface functions for users to choose: with RS485
communication interface, MODBUS-RTU protocol can meet the needs of communication network management;
4-20mA analog output can correspond to measured electrical parameters, meet DCS Such interface
requirements; with switch input and relay output can realize the function of "remote signal" and "remote

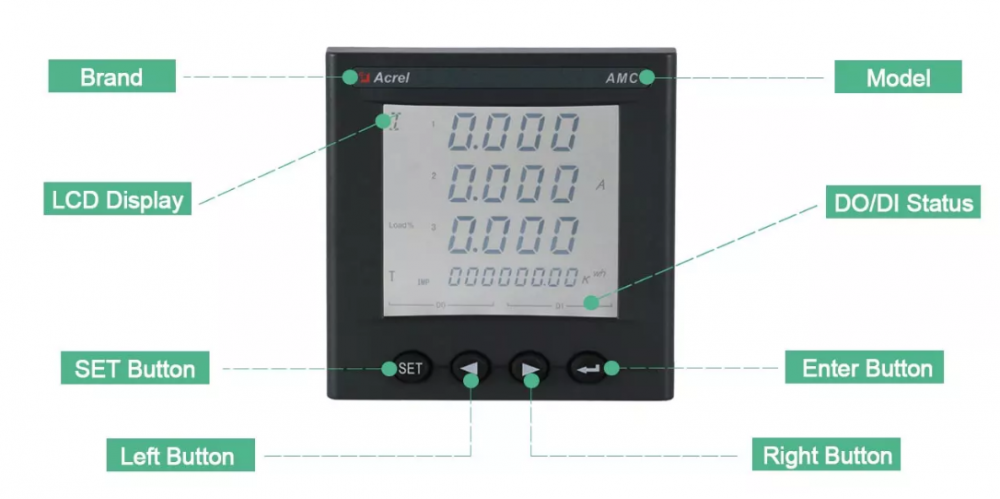

control" of circuit breaker switch. High-brightness LED/LCD display interface, parameter setting and control
through buttons, ideal for real-time power monitoring systems. Can directly replace conventional power
transmitters and measuring instruments. As an intelligent, digital front-end acquisition component, the

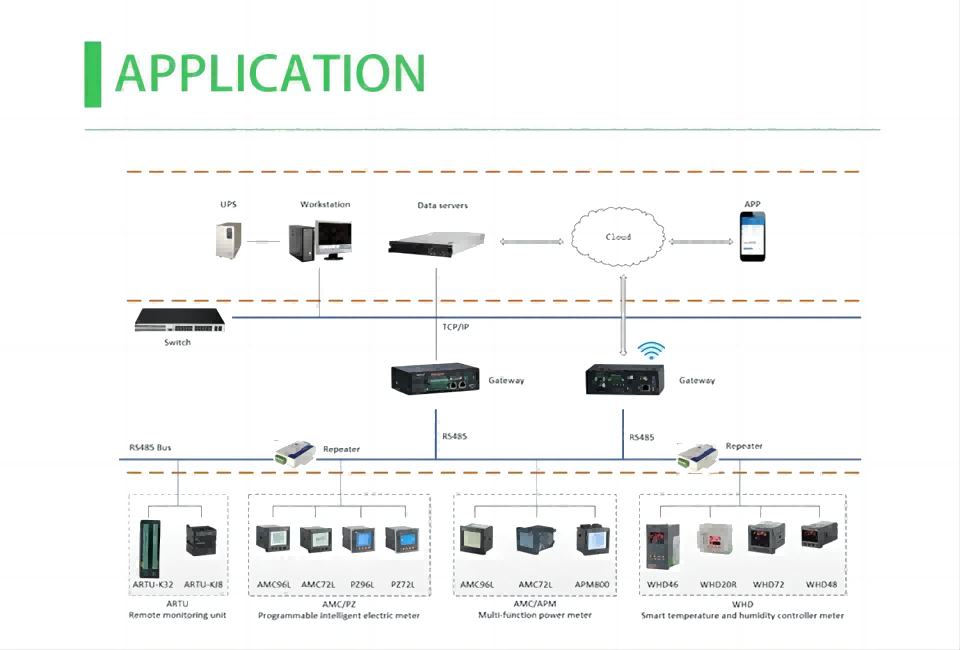

instrument has been widely used in various control systems, SCADA systems and energy management systems
