Acrel AC Single Phase Ammeter Display LED With RS485 Communication AMC48-AI/C Panel Mounted

Acrel Electric Co., Ltd
Acrel AC Single Phase Ammeter Display LED With RS485 Communication AMC48-AI/C Panel Mounted thumbnail-1
Acrel AC Single Phase Ammeter Display LED With RS485 Communication AMC48-AI/C Panel Mounted thumbnail-2
Acrel AC Single Phase Ammeter Display LED With RS485 Communication AMC48-AI/C Panel Mounted thumbnail-3
Acrel AC Single Phase Ammeter Display LED With RS485 Communication AMC48-AI/C Panel Mounted thumbnail-4
Acrel AC Single Phase Ammeter Display LED With RS485 Communication AMC48-AI/C Panel Mounted photo-1

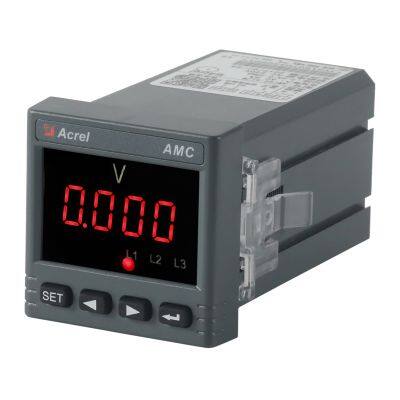

Acrel AC Single Phase Ammeter Display LED With RS485 Communication AMC48-AI/C Panel Mounted photo-2

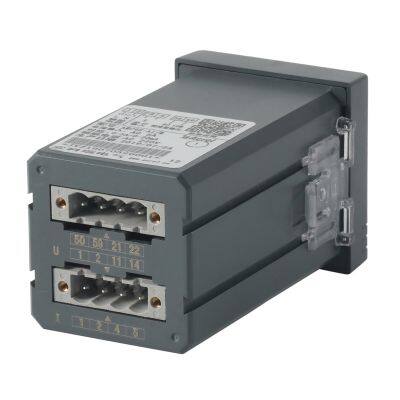

Acrel AC Single Phase Ammeter Display LED With RS485 Communication AMC48-AI/C Panel Mounted photo-3

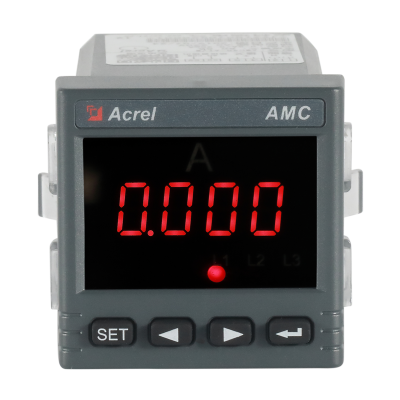

Acrel AC Single Phase Ammeter Display LED With RS485 Communication AMC48-AI/C Panel Mounted photo-4
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2003
Factory Size:
3,000-5,000 square meters
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

AMC Series programmable intelligent single phase meters, adopting AC sampling technology, can measure current of single-phase grid indirectly. It can be used for local display, and connecting industrial control device to form measurement and control system.

Using AC sampling technology, it can directly or indirectly measure the power, power, voltage, current and frequency of a single-phase or three-phase power grid. It can be used for local display, and can be connected with industrial control equipment to form a measurement and control system.

The instrument can have RS-485 communication interface and adopt Modbus-RTU protocol, with analog output, relay alarm output and switch input/output.

Function & Parameter
Voltage
Reference current
AC1A or 5A
Consumption
＜0.5VA
Frequency
45-60Hz
Accuracy class
Error ± 0.5%
Display
LED
Function
Communication
RS485, Modbus-RTU compatible protocol
Analog
DC4~20mA, DC0~20mA( load1kΩ）etc.
Power supply
Voltage range
AC220V ± 10%
consumption
＜5VA
Operation temperature
-10 ºC~+55 ºC
Storage temperature
-25 ºC ~+70 ºC
Insulation resistance
≥100MΩ
Option function
/C: RS485 Communication (Modbus-RTU)
/M: 1 analog output (programmable 4-20mA)
Power frequency withstand voltage
Between power supply set of terminals and signal Input, output set of terminals 2kV/1min (RMS)
Altitude
≤ 2500m
Relative humidity
≤93%RH, no condensation, without corrosive gas

Product Tags: AC single phase ammeter , single phase ammeter , AC energy meter
