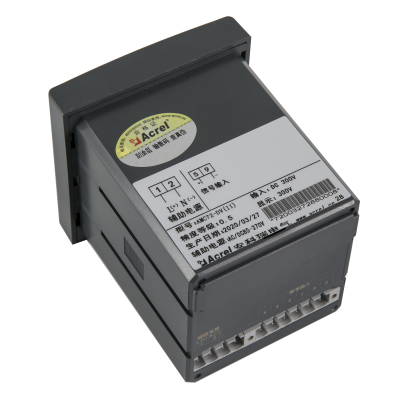

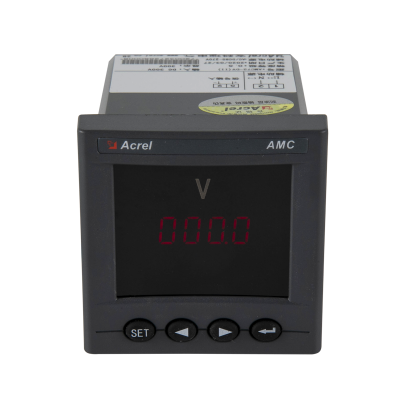

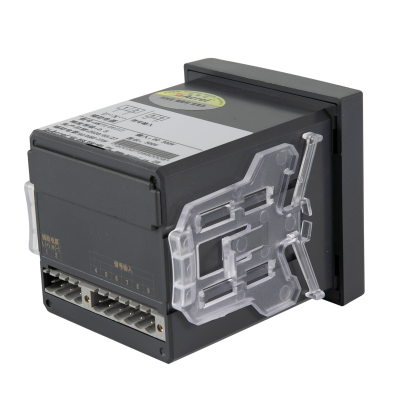

Home > Instruments & Meters > Meter for Electricity > Energy Meter & Power Meter > Acrel DC Programmable Voltmeter AMC72-DV Primary Voltage 300V LED Display
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Acrel AC Single Phase Ammeter Display LED With RS485 Communication AMC48-AI/C Panel MountedNegotiableMOQ: 1 Piece -
Acrel AMC48L-AV3 AC Digital Three Phase Voltmeter LCD Display Panel Mounted Small Size 48*48mmNegotiableMOQ: 1 Piece
-
Acrel AMC72-AI/C With RS485 Communication LED Display Single Phase Ammeter Panel MountedNegotiableMOQ: 1 Piece
-
Acrel AMC72L-AI/C Single Phase Energy Meter AC LCD Display With RS485 Communication Panel Mounted Cut Out 67*67mmNegotiableMOQ: 1 Piece
-
Acrel AC Three Phase Ammeter LCD Display AMC72L-AI3/C With RS485 Communication Cut Out 67*67mmNegotiableMOQ: 1 Piece
Accuracy Class
0.5
AMC seres meters adopt AC sampling technology, which can measure the curent yvoltace,power, power factor and electric energy parameters in the power grioseparately. t can set the magnification through the panel membrane switch. The meters have RS485 communication interface, adopt Modbus protocol also canconvert the power signal into a standard DC analog signal.
Technical parameters | Value | |||
Input | Connection | Single phase-2-wire,3-phase-3-wire,3-phase-4-wire | ||
Frequency | 45-65Hz | |||
Voltage | Rating:single-phase:AC100V、400VT hree-phase:AC3×57.7V/100V(100V)、3×220V/380V(400V)、3×380V/660V(660V)(96sizeonly) Note：72 profile not suitable for high voltage applications | |||
Overload:1.2foldrating{continuous):2foldratingfor1second | ||||
Power consumption:<0.5VA | ||||
Current | Rating:ACIA、5A | |||
Overload:1.2 fold rating(continuous);10fold rating for 1second | ||||
Power consumption:<0.5VA | ||||
Output | Electric energy | Output mode:open-collect or photo-coupler pulse | ||
Pulse constant:10000 imp/kWh(settable)，see wiring diagram for details； | ||||
Communication | RS485 port,Modbus-RTU protocol, DLT645 protocol (versions 07 and 97)，baud rate1200~38400 | |||
Function | Switching input | Dry contact input,built-in power supply; | ||
Switching output | Output mode:Relay normally open contact output | |||
Contact capacity:AC250V/3A、DC30V/3A | ||||
Analog output | 1-5V,4-20mA | |||
Accuracy class | Frequency:0.05Hz,Current,Voltage:0.2class,Reactive power:l.0class,Reactive Electric energy:l.0class, active power:0.5class, active electric energy:0.5class,2-31th harmonic measurement:±1% | |||
Power supply | AC/DC85-265V | power consumption≤10VA | ||
Security | Powerfrequencywithstandvoltage | Between Power supply// Switching Output// Current Input// voltage Input and Transmitting// Communication// Pulse Output// switching input AC2kV 1min;Between Power supply、switching output、Current Input、voltage Input AC2kV1min;Between Transmitting、Communication、Pulse Output、switching inputAC1kV1min; | ||
Insulationresistance | Input、Output end to machine enclosure>100MΩ | |||
Environment | Temperature | work:-25°C~+65°C storage:-40°C~+80°C | ||
Humidity | ≤93%RH Non-condensing | |||
Altitude | ≤2500m | |||
