Acrel AMC48L-AV3 AC Digital Three Phase Voltmeter LCD Display Panel Mounted Small Size 48*48mm
Negotiable
/ Piece
1 Piece(Min. Order)
- T/T
You May Like
-
Acrel AMC72-AI/C With RS485 Communication LED Display Single Phase Ammeter Panel Mounted
-
ADW300-WF/C Multi Function IoT 3-phase Wireless Smart Energy Meter Iot Based Smart Energy Meter For Building Factory Grids
-
Acrel ADW300 Wireless 3 Phase Wifi Smart Energy Meter With 3 Pcs 400A Ct Sensor Electricity Monitoring IoT Device MQTT RS485
-
Acrel Rs485 MQTT 4 Channels NTC Temp Sensors Monitoring Energy Meter 3 Phase Wireless IOT WiFi Power Meter
-
Acrel Wifi IOT Wireless Smart Three Phase Energy Meter Rs485 Modbus-RTU MQTT Power Consumption Online Monitoring
-
Wifi IOT Wireless 3 Phase Smart Energy Meter Rs485 Modbus-RTU MQTT With 3 Pcs AC 0-100A Current Transformer Input
Product Description
AMC Series programmable intelligent single phase meters, adopting AC sampling technology, can measure current of single-phase grid indirectly. It can be used for local display, and connecting industrial control device to form measurement and control system.
Using AC sampling technology, it can directly or indirectly measure the power, power, voltage, current and frequency of a
single-phase or three-phase power grid. It can be used for local display, and can be connected with industrial control equipment to form a measurement and control system.

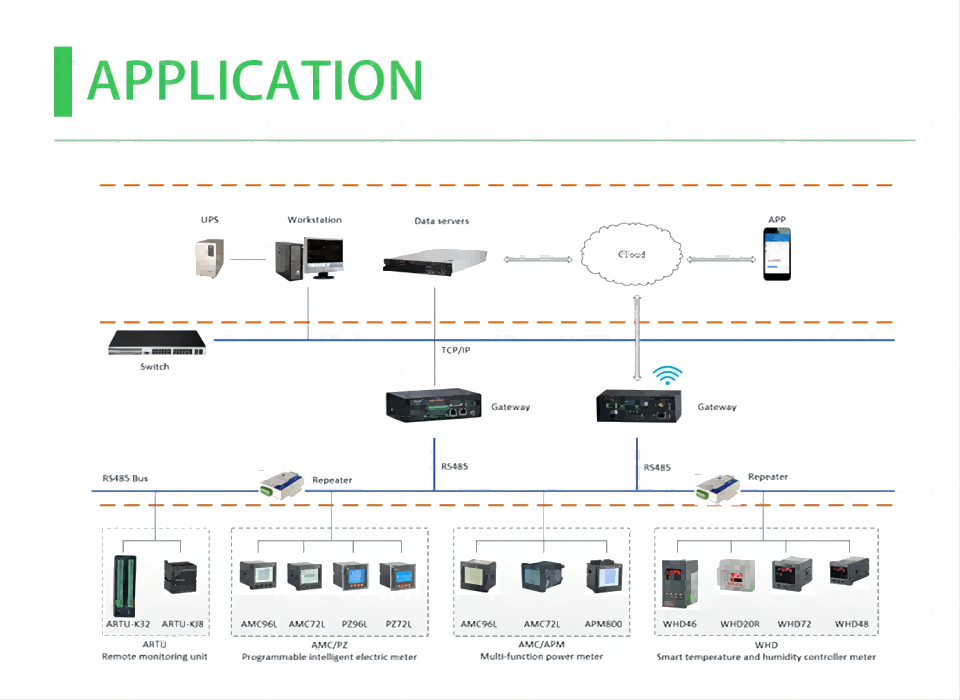

The instrument can have RS-485 communication interface and adopt Modbus-RTU protocol, with analog output, relay alarm output and switch input/output.
Items | Value | |
Input | Nominal value | AC voltage: AC 100V, 220V, 380V; AC current: AC1A, 5A |
DC voltage:1000V、300V; DC current:75mV, 10V, 0-20mA, 4-20mA, 5A, 10A | ||
Over load | Voltage: 1.2 times continuous, 2 times continuous 1 second; Current: 1.2 times continuous, 10 times continuous 1 second | |
Frequency | 45~65Hz | |
Power consumption | Power consumption of each voltage, current Input circuit is less than 0.5VA | |
Accuracy class | Frequency 0.05Hz,other 0.5 class | |

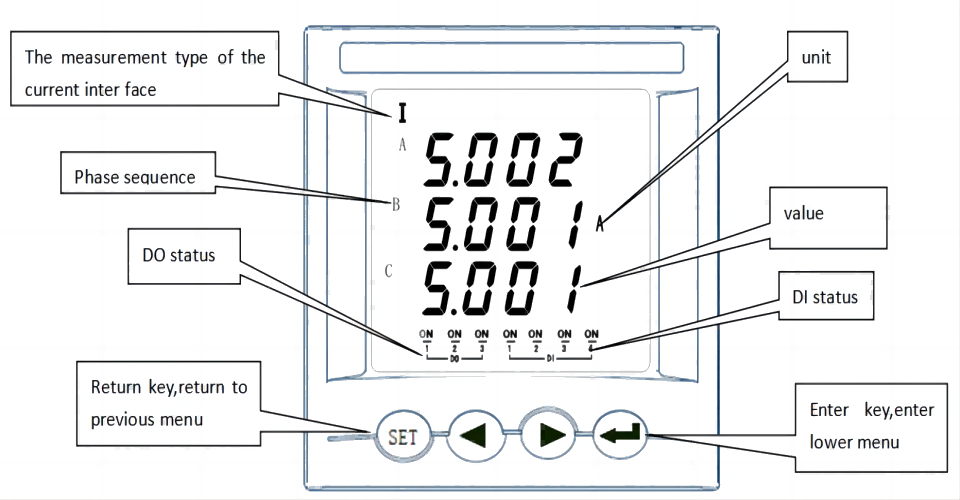

Function | Display | LED or LCD display |
Communication | RS485, Modbus-RTU compatible protocol | |
Alarm | 1 channel passive relay ,1A/30VDC, 1A/250VAC | |
Analog | DC4~20mA,DC0~20mA( load<500Ω，DC0~5V（load>1kΩ）etc. | |
Pulse | Output mode： photocoupler pulse with 1 channel collector open circuit | |
Pulse constant: 15000 imp/kWh | ||
Power supply | Voltage range | AC220V±10% |
Power consumption | <5VA | |
Insulation resistance | ≥100MΩ | |
Power frequency withstand voltage | Between power supply set of terminals and signal Input, output set of terminals 2kV/1min (RMS) | |
Mean time between failures | ≥ 50000h | |
Environment | Temperature | Operation: -10 ºC~+55 ºC Storage: -25 ºC ~+70 ºC |
Humidity | ≤93%RH, no condensation, without corrosive gas | |
Altitude | ≤ 2500m | |
