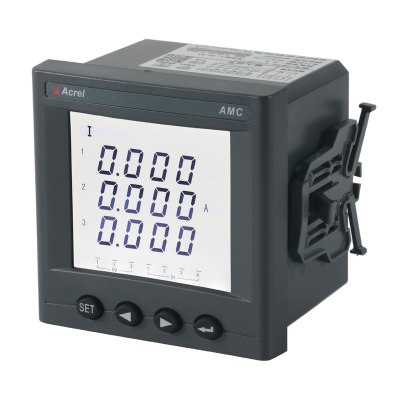

Acrel AMC96L-AI3/C Cut Out 88*88mm LCD Display Three Phase AC Energy Meter With RS485 Communication
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2003
Factory Size:
3,000-5,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Acrel AC Three Phase Ammeter LCD Display AMC72L-AI3/C With RS485 Communication Cut Out 67*67mmNegotiableMOQ: 1 Piece -
Acrel AMC72L-AI/C Single Phase Energy Meter AC LCD Display With RS485 Communication Panel Mounted Cut Out 67*67mmNegotiableMOQ: 1 Piece
-
Acrel AMC72-AI/C With RS485 Communication LED Display Single Phase Ammeter Panel MountedNegotiableMOQ: 1 Piece
-
Acrel AC Digital Three Phase Voltmeter LCD Display AMC48L-AV3 Panel Mounted Small Size 48*48mmNegotiableMOQ: 1 Piece
-
Acrel AC Single Phase Ammeter Display LED With RS485 Communication AMC48-AI/C Panel MountedNegotiableMOQ: 1 Piece
AMC series ac current meter adopts ac sampling technology,this series can measure monitor current the user can magnify current by pressing button on the meter. It is with modbus rtu protocol RS485 communication;
It can convert electrical signal to dc analog signal out,add DI and DO,alarm relay output and other functions
Specification
Technical parameter |
Value |
|||
Input |
Rated value |
AC voltage: Single phase AC100V,400V
Three phase AC100V,400V,660V(UL-L,Only72/96)
AC current:AC1A,5A; DC voltage:1000V,300V,75mV,10V; DC current:0-20mA,4-20mA,5A; |
||
Overload |
Voltage:1.2 times rated value(continuous); 2 times rated value/ 1 second Current:1.2 times rated value (continuous); 10 times rated value/1second |
|||
Frequency |
45Hz~65Hz |
|||
Power consumption |
Power consumption of each voltage, current input circuit is less than 0.5VA |
|||
Accuracy |
0.5 |
|||
Function |

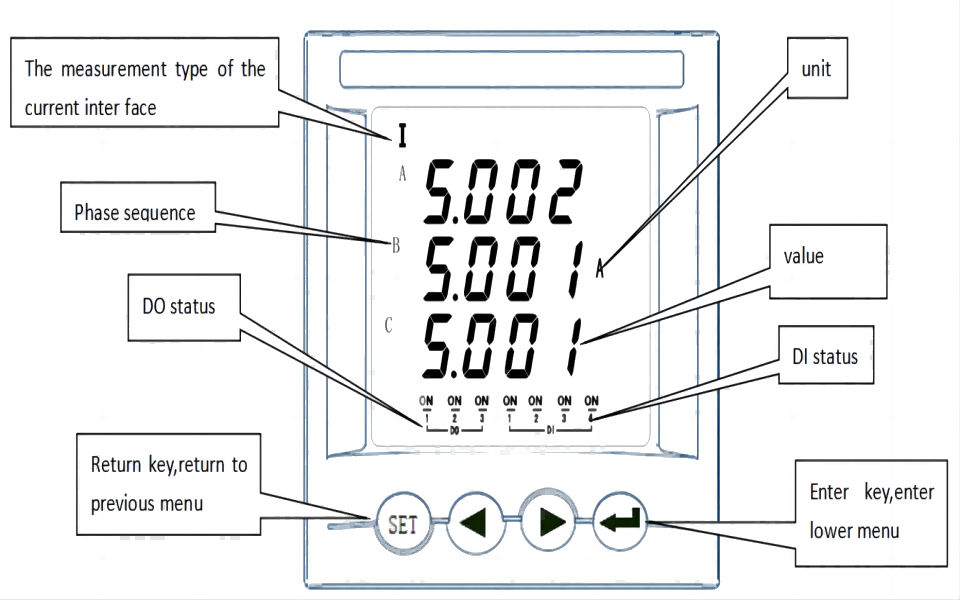

Display |
LED or LCD |
||
Communication |
RS485,Modbus-RTU protocol;(1 start bit, 8 data bit, 1 stop bit, no parity) Baud Rate 2400/4800/9600/19200 bps etc. |
|||
Alarm |
1 channel passive relay, contact capacity 3A/30VDC, 3A/250VAC, Used for high,low,unbalance alarmetc. |
|||
Analog |
DC4~20mA,(load |
|||
switching |
Input |
4 channel or 2 channel dry contact Input, built in power supply |
||
Output |
2 channel switching output,NO relay contact, capacity:3A/30VDC,3A/250VAC |
|||
Auxiliary supply |
Voltage range |
AC/DC85-265V |
||
Power consumption |
||||
Insulation resistance |
>100MΩ |
|||
Power frequency with stand voltage |
Between power supply set of terminals and signal input, output set of terminals 2kV/1min (RMS) Between the shell and all set of terminals (except the set of terminals reference voltage less than40V) AC4kV |
|||
Environment |
Temperature |
Operation:-10ºC~+55ºCStorage:-25°C~+70°C |
||
Humidity |
≤95%RH,no condensation,without corrosive gas |
|||
Altitude |
≤2500m |
|||
