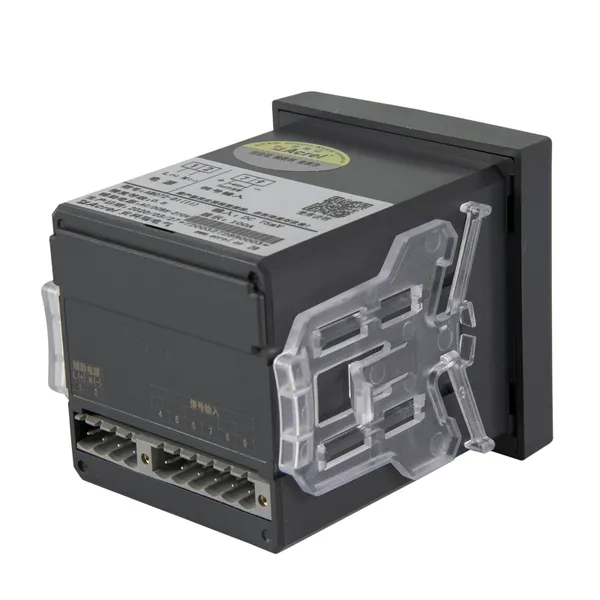

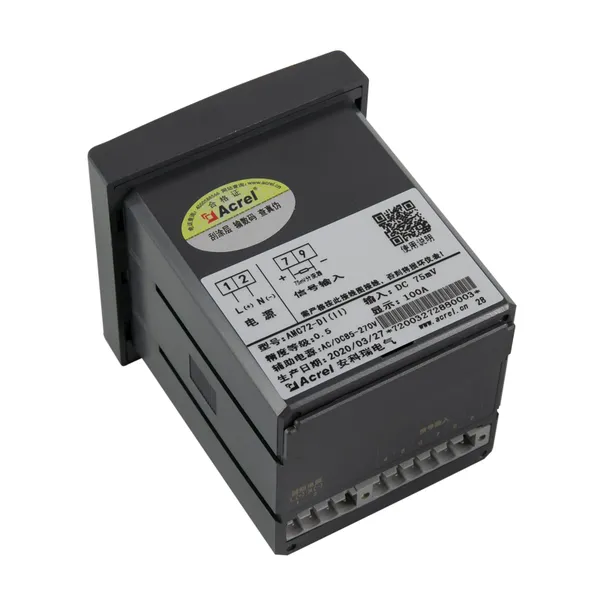

Acrel AMC72-DI/C With RS485 Communication Primary Voltage 1000V Panel Mountable Smaryt Primary Voltage DC LED Display
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Acrel AMC72-DV DC Programmable Voltmeter LED Display Primary Voltage 1000VNegotiableMOQ: 1 Piece -
Acrel DC Programmable Voltmeter AMC72-DV Primary Voltage 300V LED DisplayNegotiableMOQ: 1 Piece
-
Acrel AC Single Phase Ammeter Display LED With RS485 Communication AMC48-AI/C Panel MountedNegotiableMOQ: 1 Piece
-
Acrel AMC48L-AV3 AC Digital Three Phase Voltmeter LCD Display Panel Mounted Small Size 48*48mmNegotiableMOQ: 1 Piece
-
Acrel AMC72-AI/C With RS485 Communication LED Display Single Phase Ammeter Panel MountedNegotiableMOQ: 1 Piece
Accuracy Class
0.5
AMC seres meters adopt AC sampling technology, which can measure the curent yvoltace,power, power factor and electric energy parameters in the power grioseparately. t can set the magnification through the panel membrane switch. The meters have RS485 communication interface, adopt Modbus protocol also canconvert the power signal into a standard DC analog signal.
Technical parameters |
Value |
|||
Input |
Connection |
Single phase-2-wire,3-phase-3-wire,3-phase-4-wire |
||
Frequency |
45-65Hz |
|||
Voltage |
Rating:single-phase:AC100V、400VT hree-phase:AC3×57.7V/100V(100V)、3×220V/380V(400V)、3×380V/660V(660V)(96sizeonly) Note：72 profile not suitable for high voltage applications |
|||
Overload:1.2foldrating{continuous):2foldratingfor1second | ||||
Power consumption: | ||||
Current |
Rating:ACIA、5A |
|||
Overload:1.2 fold rating(continuous);10fold rating for 1second | ||||
Power consumption: | ||||
Output |
Electric energy |
Output mode:open-collect or photo-coupler pulse |
||

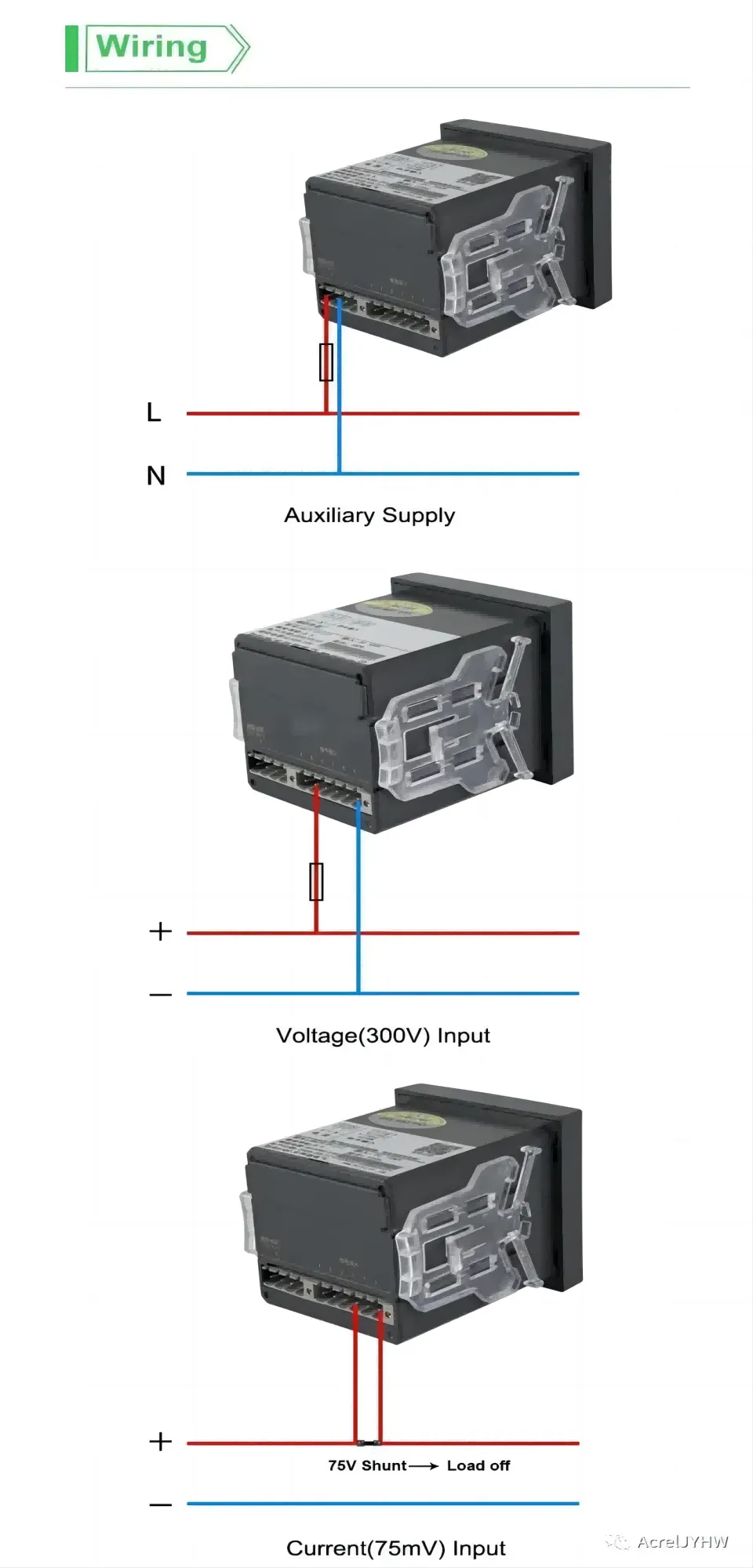

Pulse constant:10000 imp/kWh(settable)，see wiring diagram for details； | ||||
Communication |
RS485 port,Modbus-RTU protocol, DLT645 protocol (versions 07 and 97)，baud rate1200~38400 |
|||
Function |
Switching input |
Dry contact input,built-in power supply; |
||
Switching output |
Output mode:Relay normally open contact output |
|||
Contact capacity:AC250V/3A、DC30V/3A | ||||
Analog output |
1-5V,4-20mA |
|||
Accuracy class |
Frequency:0.05Hz,Current,Voltage:0.2class,Reactive power:l.0class,Reactive Electric energy:l.0class, active power:0.5class, active electric energy:0.5class,2-31th harmonic measurement:±1% |
|||
Power supply |
AC/DC85-265V |
power consumption≤10VA |
||
Security |
Powerfrequencywithstandvoltage |
Between Power supply// Switching Output// Current Input// voltage Input and Transmitting// Communication// Pulse Output// switching input AC2kV 1min;Between Power supply、switching output、Current Input、voltage Input AC2kV1min;Between Transmitting、Communication、Pulse Output、switching inputAC1kV1min; |
||
Insulationresistance |
Input、Output end to machine enclosure>100MΩ |
|||
Environment |
Temperature |
work:-25°C~+65°C storage:-40°C~+80°C |
||
Humidity |
≤93%RH Non-condensing |
|||
Altitude |
≤2500m |
|||
