Home > Products > AMC Series Programmable Power Meter > Acrel AMC72-AI/C with RS485 communication LED display single phase ammeter panel mounted

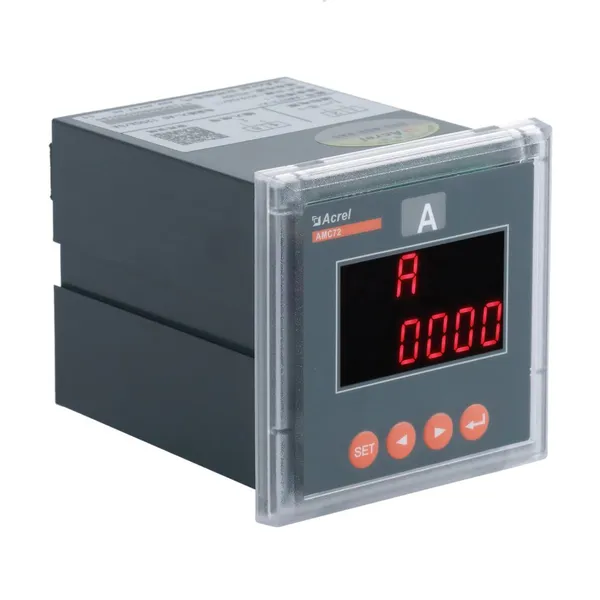

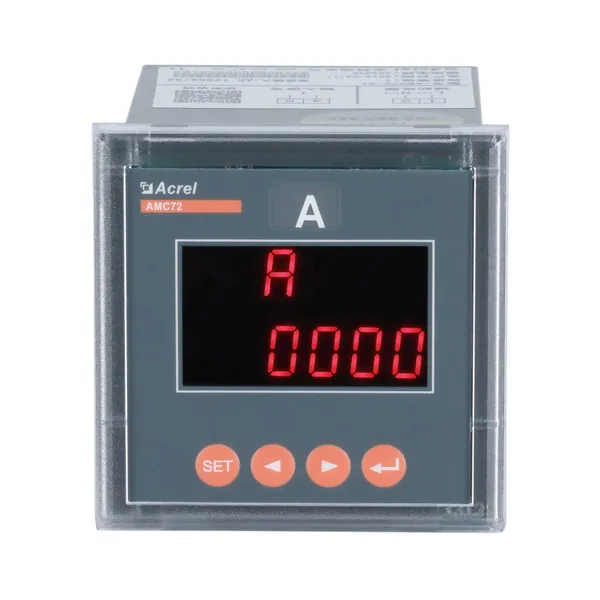

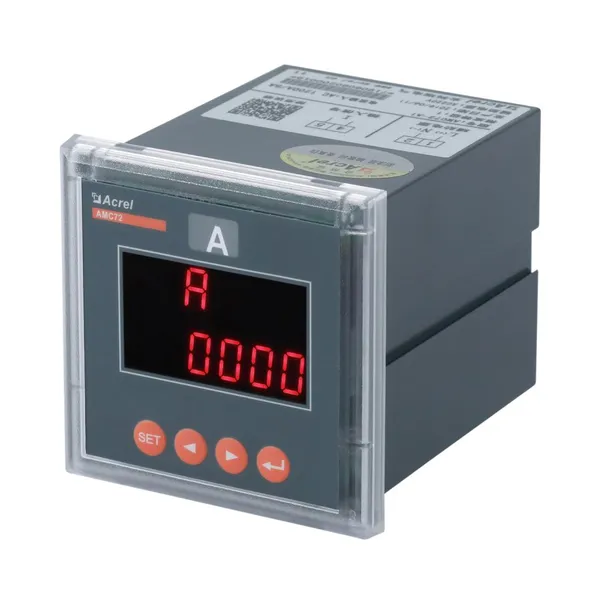

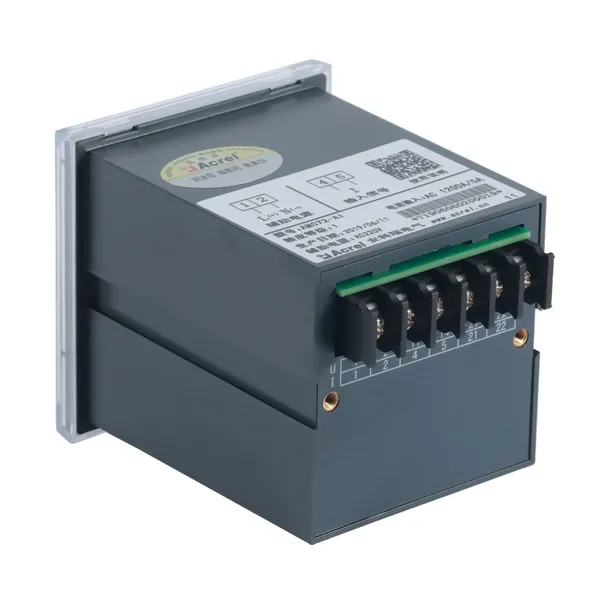

Acrel AMC72-AI/C with RS485 communication LED display single phase ammeter panel mounted

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

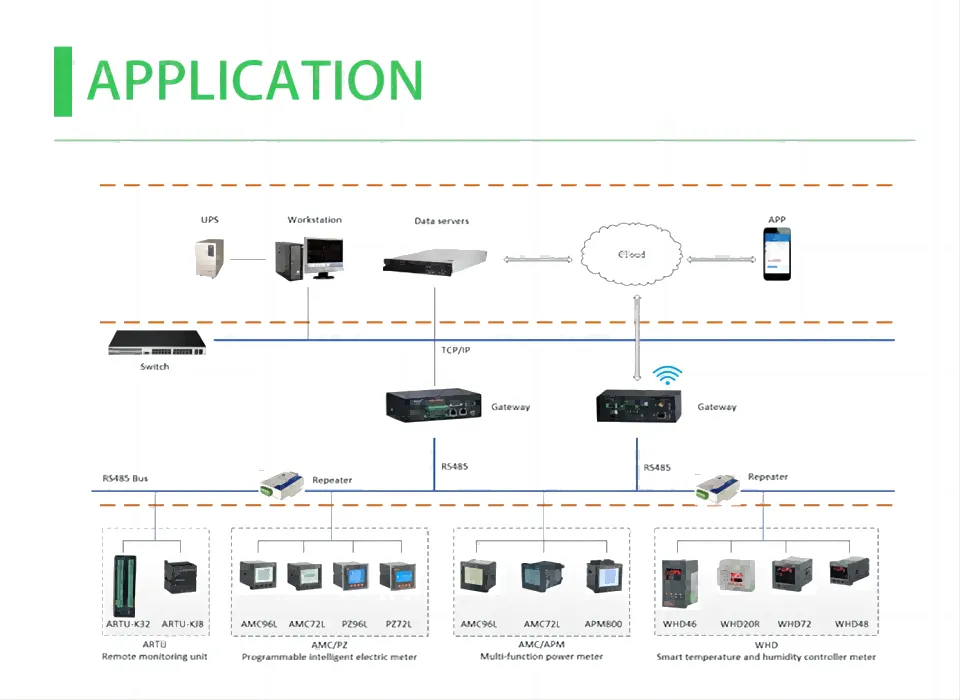

AMC Series programmable intelligent single phase meters, adopting AC sampling technology, can measure current of single-phase grid indirectly. It can be used for local display, and connecting industrial control device to form measurement and control system.

Using AC sampling technology, it can directly or indirectly measure the power, power, voltage, current and frequency of a single-phase or three-phase power grid. It can be used for local display, and can be connected with industrial control equipment to form a measurement and control system.

The instrument can have RS-485 communication interface and adopt Modbus-RTU protocol, with analog output, relay alarm output and switch input/output.

Technical Datasheet

Technical Parameter		Value
Input	Rated Value	AC voltage:Single phaseAC 100V,400V Three phaseAC 100V,400V,660V(UL-L,Only 72/ 96) AC current:AC1A,5A; DC voltage:1000V,300V,75mV,10V; DC current: 0-20mA,4-20mA,5A;
	Overload	Voltage: 1.2 times rated value(continuous); 2 times rated value /1 second Current:1.2 times rated value(continuous); 10 times rated value /1 second
	Frequency	45Hz～65Hz
	Power Consumption	Power consumption of each voltage,current input circuit is less than 0.5VA
Accuracy		Class 0.5

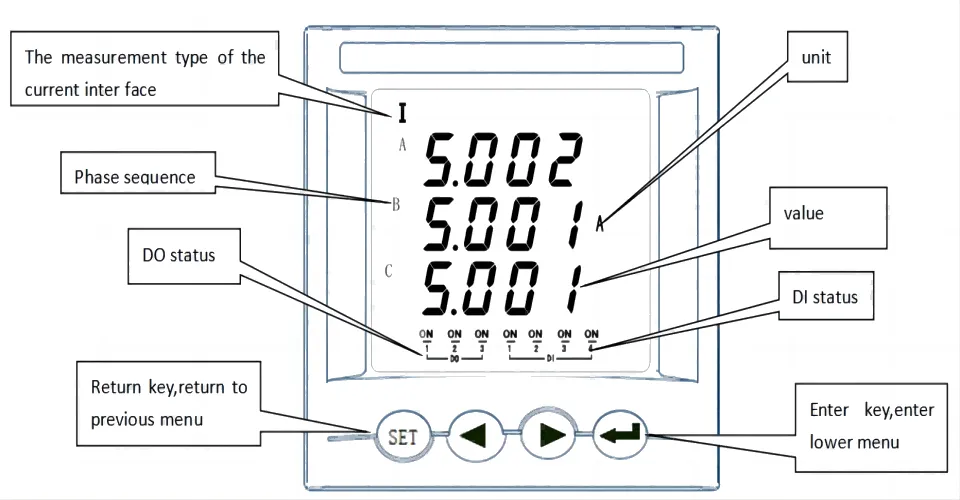

Function	Display	LED or LCD
	Communication	RS485,Modbus-RTU protocol;(1 start bit,8 data bit,1 stop bit,no parity) Baud Rate 2400/4800/9600/19200 bps etc.
	Alarm	1 channel passive relay,contact capacity 3A/30VDC,3A/250VAC, Used for high,low,unbalance alarm etc.
	Analog	DC4~20mA,( load <500Ω) (note:Shielded wire is specially selected for the above signal input and output)
	Switching	Input:4 channel or 2 channel dry contact Input,built in power supply Output:2 channel switching output,NO relay contact,capacity:3A/30VDC,3A/250VAC
Auxiliary Supply		AC/DC 85-265V
Power Consumption		<5VA
Insulation resistance		≥ 100MΩ
Power frequency withstand voltage		Between power supply set of terminals and signal input,output set of terminals 2kV/1min (RMS) Between the shell and all set of terminals(except the set of terminals reference voltage less than 40V) AC 4kV
Environment	Temperature	Operation: -10℃～+55℃Storage: -25°C ~+70°C
	Humidity	≤95%RH,no condensation,without corrosive gas
	Altitude	≤ 2500m
