Home > Products > AMC Series Programmable Power Meter > Acrel AMC72L-DV Primary Voltage 1000V LCD Display DC Programmable Voltmeter Embedded Installation 0.5 Class Accuracy

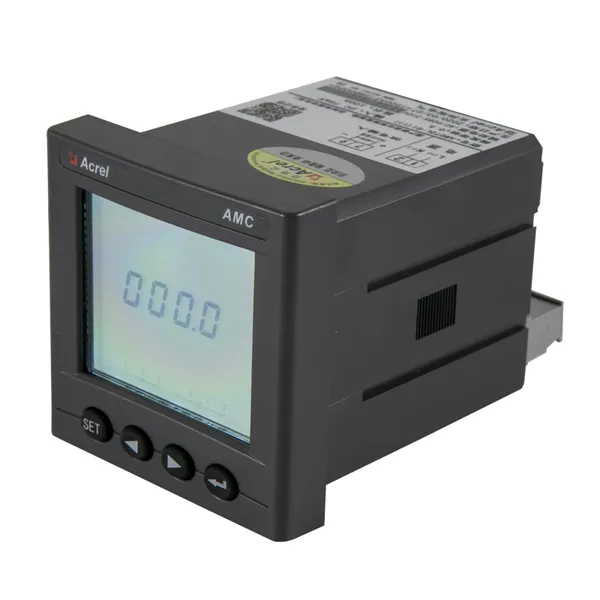

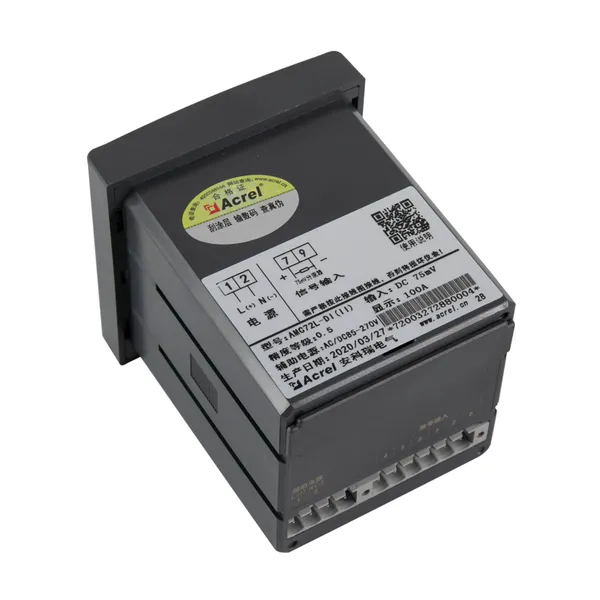

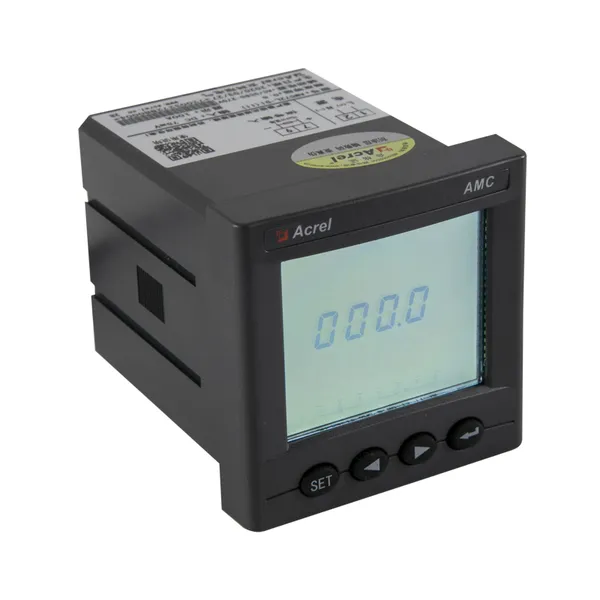

Acrel AMC72L-DV Primary Voltage 1000V LCD Display DC Programmable Voltmeter Embedded Installation 0.5 Class Accuracy

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

AMC seres meters adopt AC sampling technology, which can measure the curent yvoltace,power, power factor and electric energy parameters in the power grioseparately. t can set the magnification through the panel membrane switch. The meters have RS485 communication interface, adopt Modbus protocol also canconvert the power signal into a standard DC analog signal.

Technical parameters		Value
Input	Connection	Single phase-2-wire,3-phase-3-wire,3-phase-4-wire
	Frequency	45-65Hz
	Voltage	Rating:single-phase:AC100V、400VT hree-phase:AC3×57.7V/100V(100V)、3×220V/380V(400V)、3×380V/660V(660V)(96sizeonly) Note：72 profile not suitable for high voltage applications
		Overload:1.2foldrating{continuous):2foldratingfor1second
		Power consumption:<0.5VA
	Current	Rating:ACIA、5A
		Overload:1.2 fold rating(continuous);10fold rating for 1second
		Power consumption:<0.5VA
Output	Electric energy	Output mode:open-collect or photo-coupler pulse

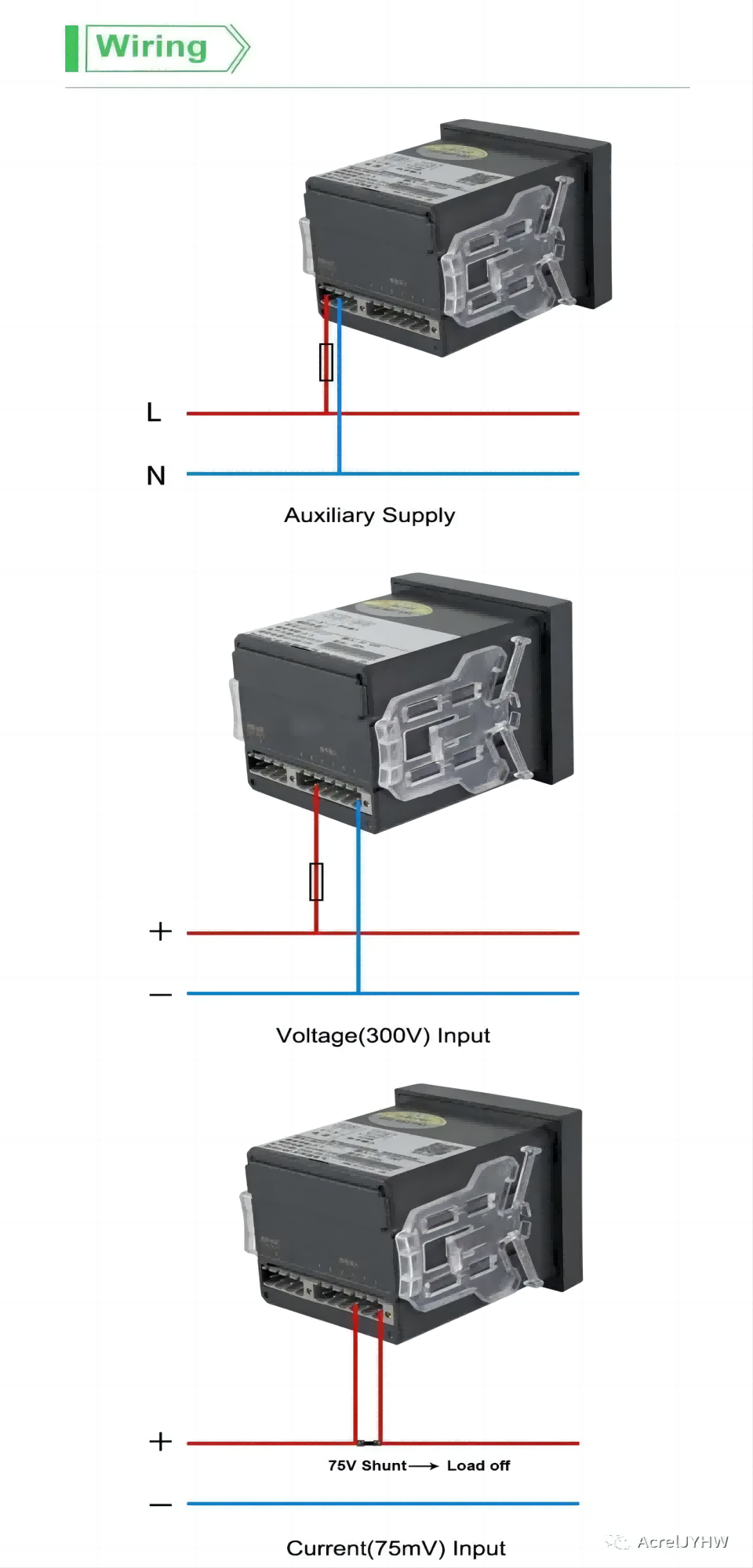

		Pulse constant:10000 imp/kWh(settable)，see wiring diagram for details；

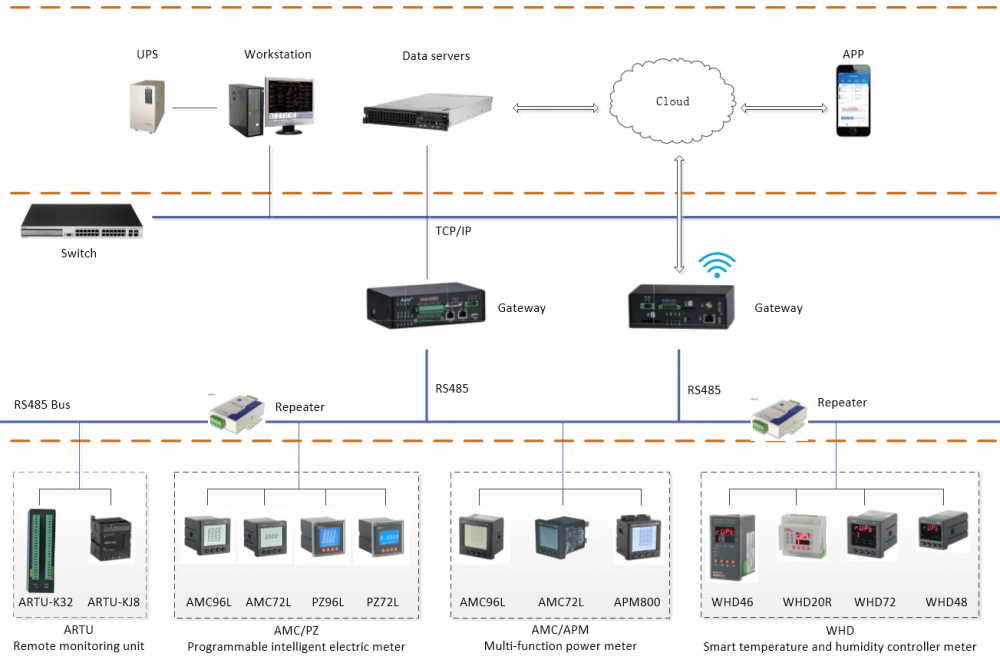

	Communication	RS485 port,Modbus-RTU protocol, DLT645 protocol (versions 07 and 97)，baud rate1200~38400
Function	Switching input	Dry contact input,built-in power supply;
	Switching output	Output mode:Relay normally open contact output
		Contact capacity:AC250V/3A、DC30V/3A
	Analog output	1-5V,4-20mA
Accuracy class		Frequency:0.05Hz,Current,Voltage:0.2class,Reactive power:l.0class,Reactive Electric energy:l.0class, active power:0.5class, active electric energy:0.5class,2-31th harmonic measurement:±1%
Power supply		AC/DC85-265V	power consumption≤10VA
Security	Powerfrequencywithstandvoltage	Between Power supply// Switching Output// Current Input// voltage Input and Transmitting// Communication// Pulse Output// switching input AC2kV 1min;Between Power supply、switching output、Current Input、voltage Input AC2kV1min;Between Transmitting、Communication、Pulse Output、switching inputAC1kV1min;
	Insulationresistance	Input、Output end to machine enclosure>100MΩ
Environment	Temperature	work:-25°C~+65°C storage:-40°C~+80°C
	Humidity	≤93%RH Non-condensing
	Altitude	≤2500m
