AMC Series Programmable Power Meter AMC72L-DV Communication RS485 Output 4~20mA DC CE Certificates Single Phase Digital Energy
US$ 42 - 50
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Acrel
Place of Origin:
China
Model Number:
AMC72L-DV/C
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Acrel AMC72L-DV/C DC Digital Voltage Voltmeter 2-channel DI&2-channel DO CE Certificates 4~20mA DC Single Phase Digital EnergyUS$ 42 - 50MOQ: 1 Piece -
Programmable Power AMC72L-DV/C One Circuit DC Voltage LCD Display Output 4~20mA DC Power Energy Meter Voltmeter Current MeterUS$ 42 - 50MOQ: 1 Piece
-
Acrel AMC96L-E4/HKC AC Energy Meter Three Phase LCD Display 4DI2DO RS485-Modbus/RTU ProtocolNegotiableMOQ: 1 Piece
-
Acrel AMC96L-E4/KC AC Smart Power Analyzer Three Phase LCD Display 4DI2DO RS485-Modbus/RTU ProtocolUS$ 51.8 - 51.8MOQ: 1 Piece
-
Acrel AMC96L-E4/KC2M With 2 Analog Output AC Smart Power Analyzer Three Phase LCD Display 4DI2DO RS485-Modbus/RTU ProtocolNegotiableMOQ: 1 Piece
Brand Name
Acrel
Place of Origin
China
Model Number
AMC72L-DV/C
Operating Temperature
-10℃~+55℃
Dimensions
75*75mm
Measuring Voltage Range
AC/DC 85-265V
Measuring Current Range
0~10V DC (via Transducer); 300V or 1000V DC (direct connect)
Accuracy Class
Class0.5
Solution Structure
Products Description
AMC72L-DV/C Single-phase AC Digital Ammeter
AMC series programmable intelligent meters, adopting AC sampling technology, can directly or indirectly measure electric voltage and current of single phase or three phase grid. It can be used for local display, and connecting industrial control device to form measuring control system. This series of meters have RS-485 port, adopt Modbus-RTU protocol. Analog output, alarm output, switching input/ output can be selected. Based on different request, by pressing the keys, parameters of ratio, alarm, communication etc. can be modified.
● Measurement: 1-circuit DC Voltage
● Accuracy: 0.5%
● Rated Current: 0~10V DC (via Transducer); 300V or 1000V DC (direct connect)
● Power Supply: 85~265V AC/DC
● Communication: RS485 (MODBUS-RTU)
● Alarm Output: Low&High Current Alarm
● Analog Output: 4~20mA DC
● DI/DO Function: 2-channel DI&2-channel DO
● Standard&Certificate: CE Certificates

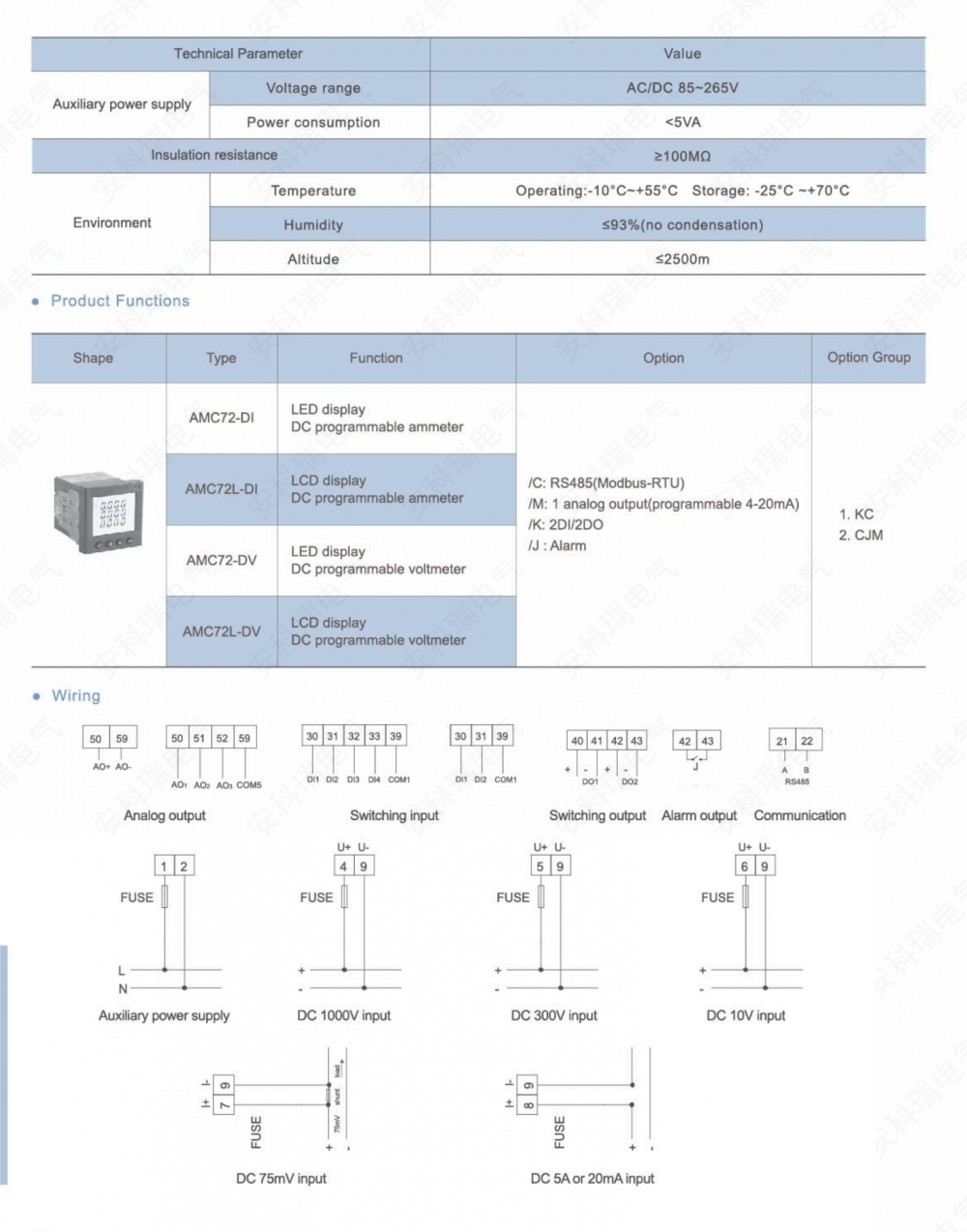

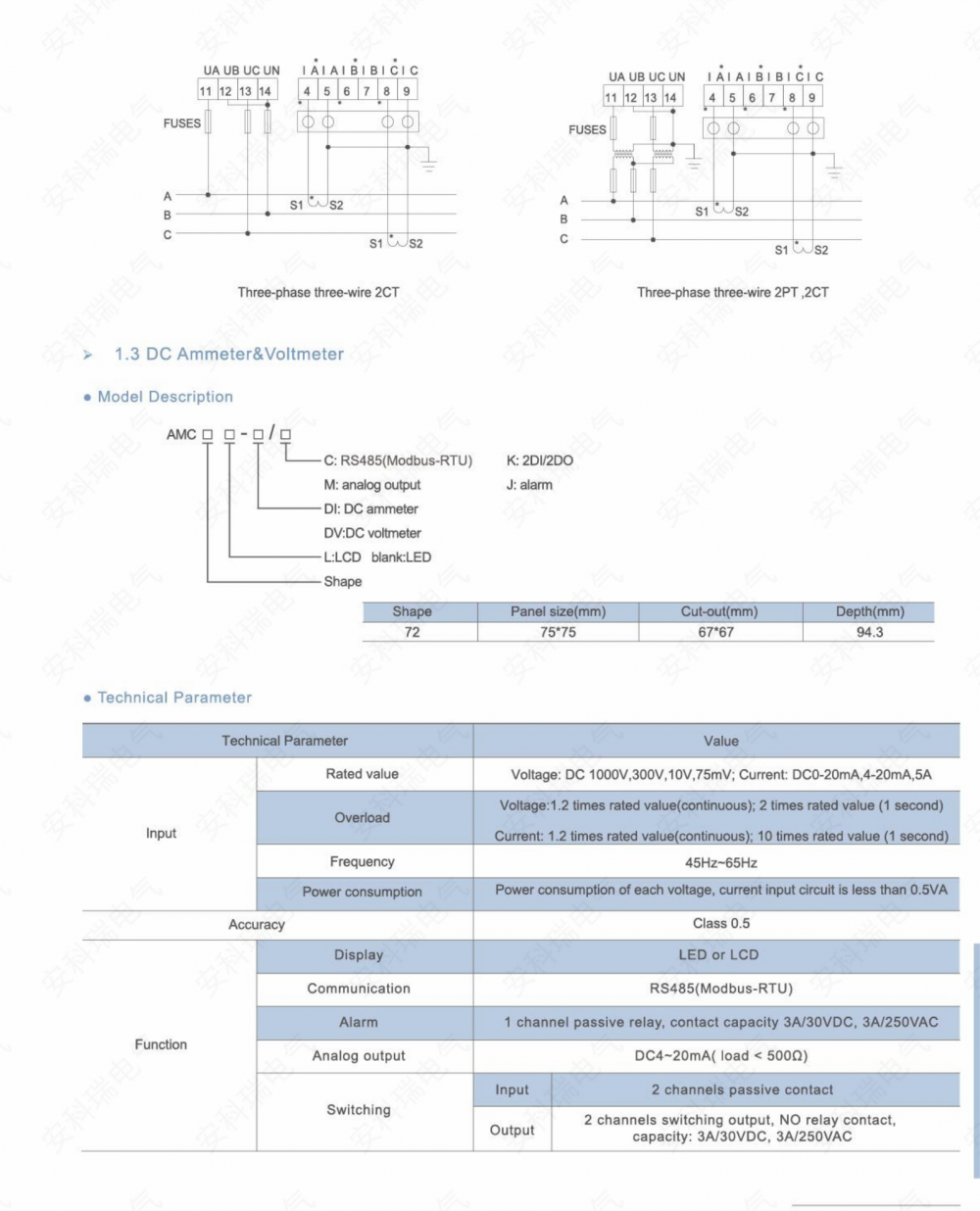

Function & Parameter
Dimension & Installation
AC Current Signal (5A or 1A AC) Input via -/5A AC or -/1A AC CTs
Company Profile
Acrel Co., Ltd. [Stock Code : 300286. SZ] is a high-tech enterprise concentrating on research, production, sales and services. It mainly provides systemic solutions of energy efficiency management and electrical safety for users. ‘Acrel’ is equipped with the complete production lines from cloud platform software to sensors. Until now, it has more than 8000 sets systemic solutions used in China to help users to realize energy visual management ,supply energy data services and improve electrical efficiency and safety. ‘Acrel’ has maintained steady growth since its listing in 2012. The company will adhere to the concept of ‘innovation,high-efficiency,unity and honesty’ and it provides more high-quality solutions,products and service for power system users and micro-grid.
