DAC088S085CISQ Digital to Analog Conversion Chip DAC TI Original Stock

DAC088S085CISQ Digital to Analog Conversion Chip DAC TI Original Stock thumbnail-3

DAC088S085CISQ Digital to Analog Conversion Chip DAC TI Original Stock photo-1

DAC088S085CISQ Digital to Analog Conversion Chip DAC TI Original Stock photo-2

DAC088S085CISQ Digital to Analog Conversion Chip DAC TI Original Stock photo-3

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand Name:

Place of Origin:

Albania

Model Number:

DAC088S085CISQ

Contact Supplier Request Quote Chat Now

Shenzhen Nanbeihang Electronic Development Co., Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name TI

Place of Origin Albania

Model Number DAC088S085CISQ

Type Drive IC

Package 1000

D/C 22+

describe

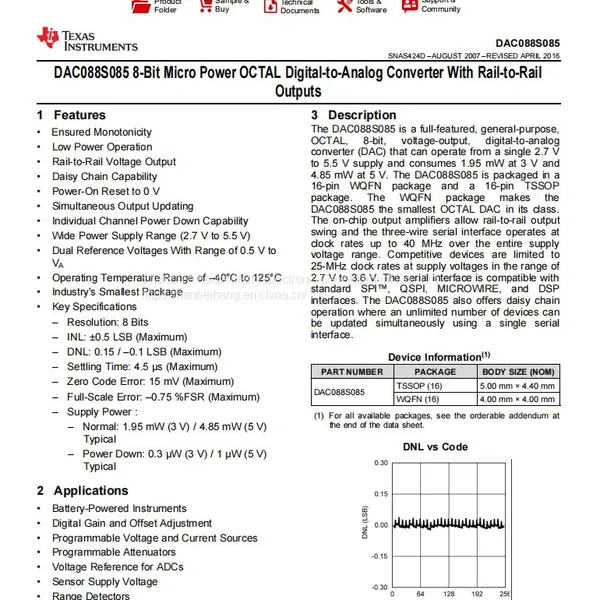

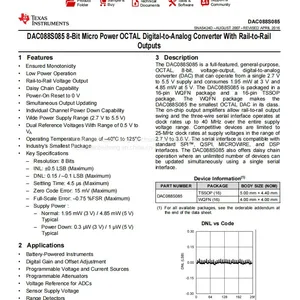

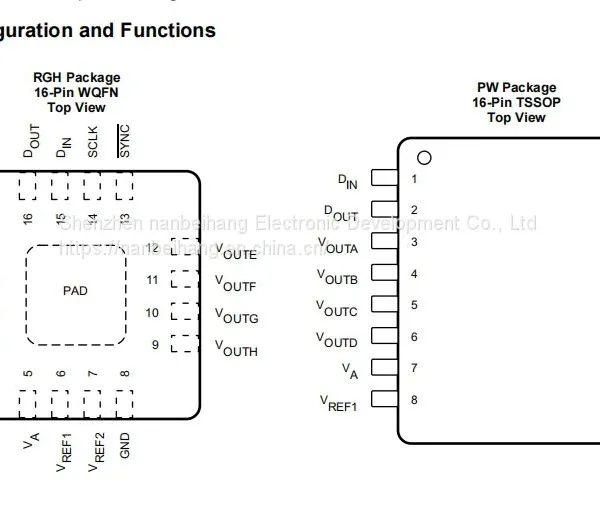

DAC088S085 is a multifunctional, universal, octal, 8-bit voltage output, digital to analog converter (DAC) that can supply power from 2.7 V to 5.5 V, consuming 1.95 mW at 3V and 4.85 mW at 5V. DAC088S085 is packaged in a 16 pin WQFN package and a 16 pin TSSOP package. The WQFN software package makes DAC088S085 the smallest octal DAC in its class. The on-chip output amplifier allows for output oscillation from track to track, and the three wire serial interface operates at a clock rate of up to 40 MHz throughout the entire power supply voltage range. Within the power supply voltage range of 2.7 V to 3.6 V, competing devices are limited to a 25MHz clock rate. Serial interface and standard SPI ™、 QSPI, microwire, and DSP interfaces are compatible. DAC088S085 also provides daisy chain operation, which allows for an unlimited number of devices to be updated simultaneously using a serial interface.
Features
• Ensured Monotonicity
• Low Power Operation
• Rail-to-Rail Voltage Output
• Daisy Chain Capability
• Power-On Reset to 0 V
• Simultaneous Output Updating
• Individual Channel Power Down Capability
• Wide Power Supply Range (2.7 V to 5.5 V)
• Dual Reference Voltages With Range of 0.5 V to
VA
• Operating Temperature Range of –40°C to 125°C
• Industry's Smallest Package
• Key Specifications
– Resolution: 8 Bits
– INL: ±0.5 LSB (Maximum)
– DNL: 0.15 / –0.1 LSB (Maximum)
– Settling Time: 4.5 µs (Maximum)
– Zero Code Error: 15 mV (Maximum)
– Full-Scale Error: –0.75 %FSR (Maximum)
– Supply Power :
– Normal: 1.95 mW (3 V) / 4.85 mW (5 V)
Typical
– Power Down: 0.3 µW (3 V) / 1 µW (5 V)
Typical
Applications
• Battery-Powered Instruments
• Digital Gain and Offset Adjustment
• Programmable Voltage and Current Sources
• Programmable Attenuators
• Voltage Reference for ADCs
• Sensor Supply Voltage
