TMS320F2802PZA-60 LQFP-100 Microcontroller TI Original Stock

TMS320F2802PZA-60 LQFP-100 Microcontroller TI Original Stock thumbnail-3

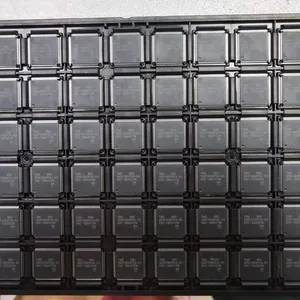

TMS320F2802PZA-60 LQFP-100 Microcontroller TI Original Stock thumbnail-4

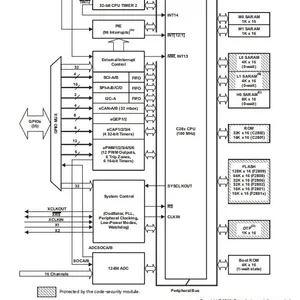

TMS320F2802PZA-60 LQFP-100 Microcontroller TI Original Stock thumbnail-5

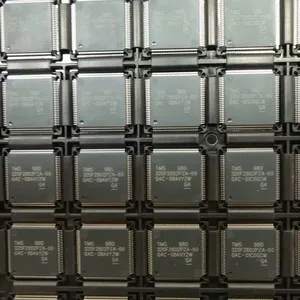

TMS320F2802PZA-60 LQFP-100 Microcontroller TI Original Stock photo-1

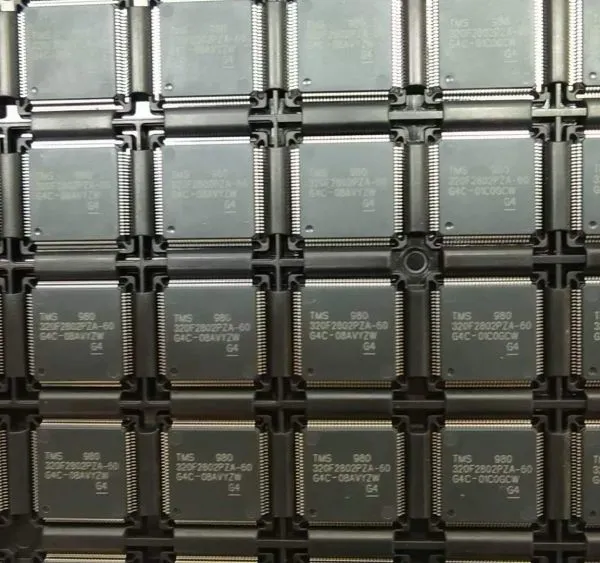

TMS320F2802PZA-60 LQFP-100 Microcontroller TI Original Stock photo-2

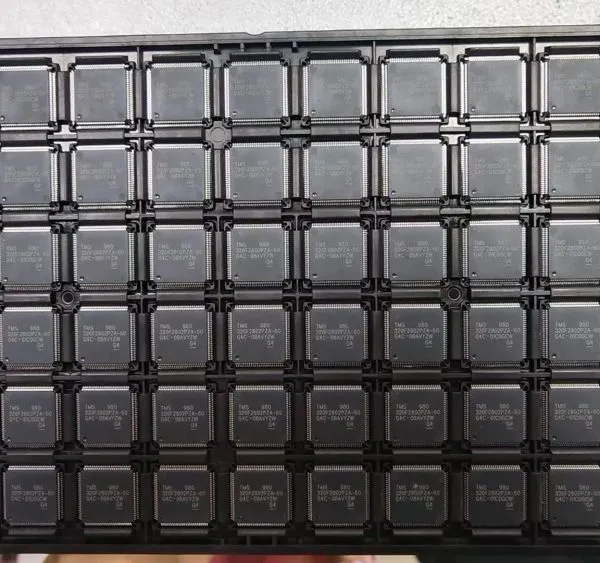

TMS320F2802PZA-60 LQFP-100 Microcontroller TI Original Stock photo-3

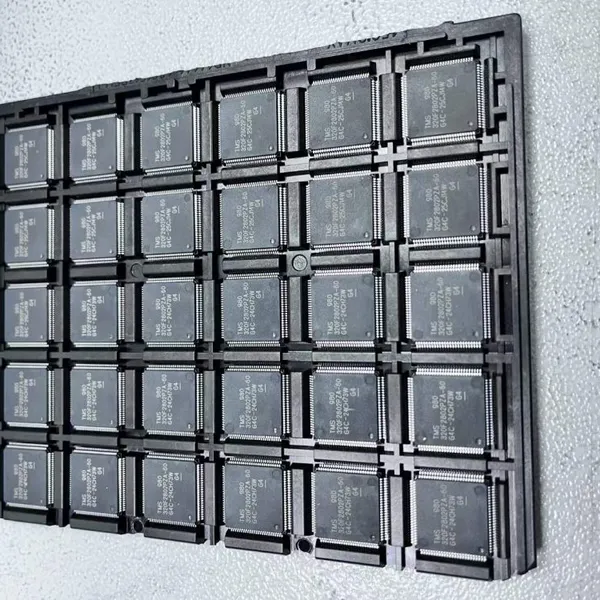

TMS320F2802PZA-60 LQFP-100 Microcontroller TI Original Stock photo-4

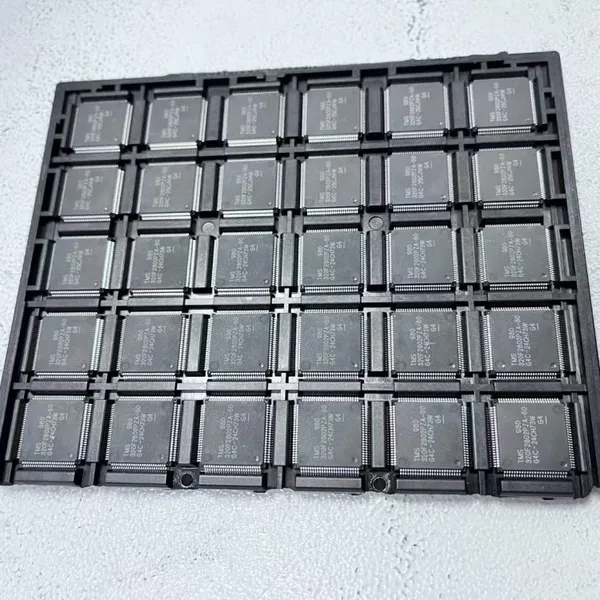

TMS320F2802PZA-60 LQFP-100 Microcontroller TI Original Stock photo-5

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand Name:

Place of Origin:

Alderney

Model Number:

TMS320F2802PZA-60

Contact Supplier Request Quote Chat Now

Shenzhen Nanbeihang Electronic Development Co., Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name TI

Place of Origin Alderney

Model Number TMS320F2802PZA-60

Type Drive IC

Package 360

D/C 22+

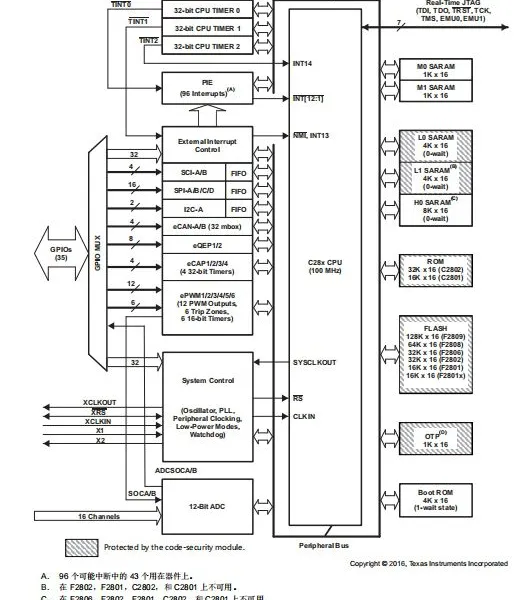

characteristic

High performance static CMOS technology

-100MHz (10ns cycle time)

-60MHz (16.67ns cycle time)

Low power consumption (1.8V core, 3.3V I/O) design

• Supports JTAG boundary scanning

- IEEE Standard 1149.1-1990 Test Access Ports and Edges

Boundary scanning architecture

High performance 32-bit CPU (TMS320C28x)

-16 × 16 and 32 × 32 MAC operations

-16 × 16 dual MAC

- Harvard Bus Architecture

- Sequential operation

- Fast interrupt response and handling

- Unified Memory Programming Model

- Efficient code (using C/C++and assembly language)

On chip memory

- F2809:128K × 16 flash memory, 18K × 16 SARAM

F2808:64K × 16 flash memory, 18K × 16 SARAM

F2806:32K × 16 flash memory, 10K × 16 SARAM

F2802:32K × 16 flash memory, 6K × 16 SARAM

F2801:16K × 16 flash memory, 6K × 16 SARAM

F2801x: 16K × 16 flash memory, 6K × 16 SARAM

-1K × 16 OTP ROM (only applicable to flash devices)

C2802:32K × 16 ROM, 6K × 16 SARAM

C2801:16K × 16 ROM, 6K × 16 SARAM

• Boot ROM (4K × 16)

- With software boot mode (via SCI, SPI, CAN, I2C)

And parallel I/O

- Standard Mathematical Table

Clock and system control

On chip oscillator

- Watchdog timer module

Any GPIO A pin can be connected to one of three external kernel interrupts

Peripheral Interrupt Extension (PIE) block that supports all 43 peripheral interrupts

Byteorder: Small end byte order

128 bit security key/lock

- Protect flash/OTP/L0/L1 blocks

- Prevent firmware reverse engineering

3 32-bit CPU timers

Enhanced control peripherals

- Up to 16 PWM outputs

- Up to 6 HRPWM outputs at 150ps MEP resolution

- Up to 4 captured inputs

- Up to 2 orthogonal encoder interfaces

- Up to 6 32-bit/6 16 bit timers

• Serial port peripherals

- Up to 4 SPI modules

- Up to 2 SCI (UART) modules

- Up to 2 CAN modules

-1 internal integrated circuit (I2C) bus

12 bit ADC, 16 channels

-2 × 8-channel input multiplexer

- Two sampling holds

- Single/synchronous conversion

- Fast conversion rate:

80ns -12.5MSPS (F2809 only)

160ns -6.25MSPS (280x)

267ns -3.75MSPS (F2801x)

- Internal or external benchmarks

Up to 35 multi-channel complexes with input filtering function and programmable separately

Using GPIO pins

Advanced simulation features

- Analysis and breakpoint functionality

- Real time debugging through hardware

Development support includes

- ANSI C/C++compiler/assembler/connector

- Code Composer Studio ™ Source code for IDE project examples

- SYS/BIOS

- Digital motor control and digital power supply software library

Low power consumption mode, saving energy consumption

- Supports idle, standby, and shutdown modes

- Disable separate peripheral clocks

• Packaging options

- Thin Square Flatpack (PZ)

- MicroStar BGA ™ (GGM, ZGM)

• Temperature options

- A: -40 ° C to 85 ° C (PZ, GGM, ZGM)

- S: -40 ° C to 125 ° C (PZ, GGM, ZGM)

- Q: -40 ° C to 125 ° C (PZ)
