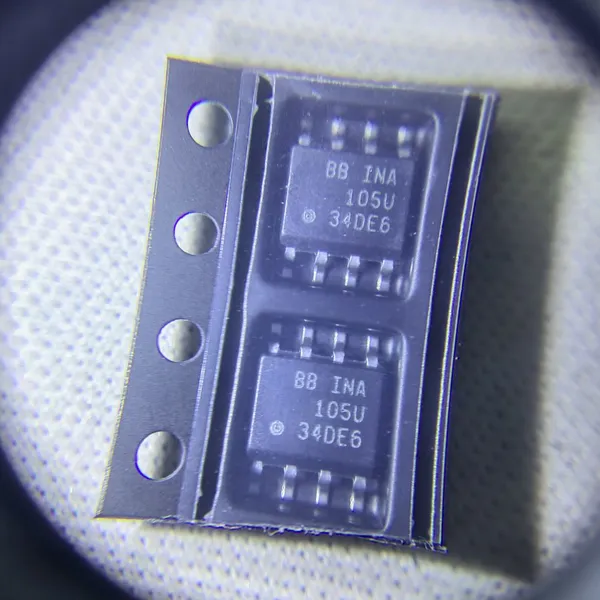

INA105KU/2K5 SOIC-8 Operational Amplifier TI Original Stock
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
TI
Place of Origin:
Albania
Model Number:
INA105KU/2K5
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ADG749BKSZ Analog Switch/multiplexer ADI Original StockNegotiableMOQ: 1 Piece -
ADG1408YRUZ Analog Switch/multiplexer ADI Original StockNegotiableMOQ: 1 Piece
-
ADIS16060BCCZ LGA-16 Attitude Sensor/gyroscope ADI Original StockNegotiableMOQ: 1 Piece
-
LTC2949HLXE#3ZZPBF LQFP-48 Battery Management ADI Original StockNegotiableMOQ: 1 Piece
-
ADAU1442YSVZ-3A Digital Signal Processor ADI Original StockNegotiableMOQ: 1 Piece
Brand Name
TI
Place of Origin
Albania
Model Number
INA105KU/2K5
Type
Drive IC
Package
2500
D/C
23+
describe

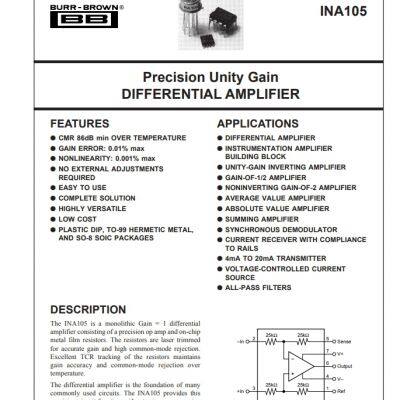

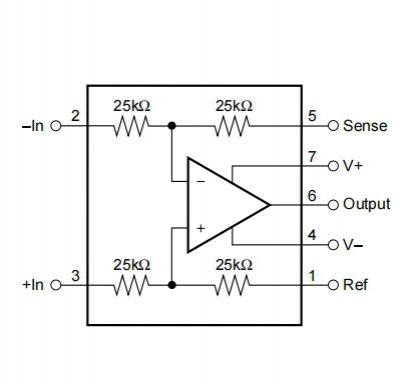

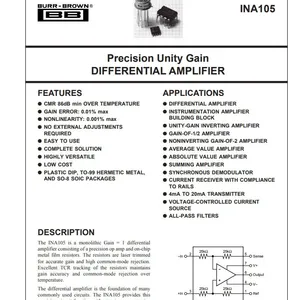

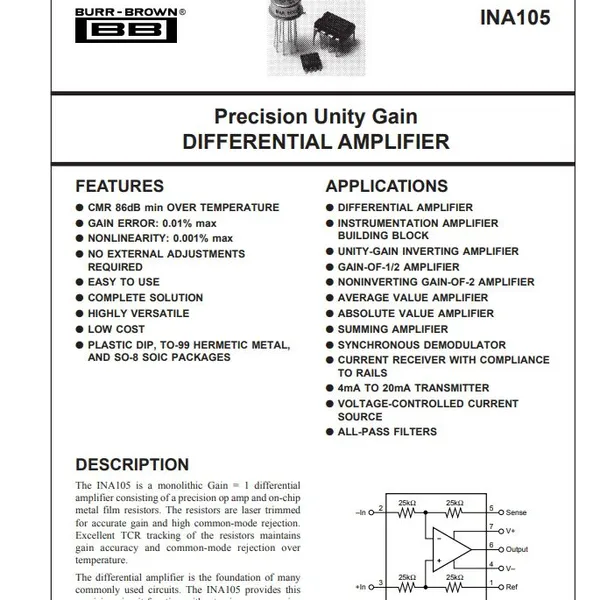

INA105 is a single-chip gain=1 differential amplifier composed of a precision operational amplifier and on-chip metal thin film resistors. Resistance is laser trimmed for precise gain and high common mode suppression. Good resistance TCR tracking maintains gain accuracy and common mode suppression temperature.
Differential amplifiers are the foundation of many commonly used circuits. INA105 provides this precision circuit function without the use of expensive precision resistor networks. INA105 comes with 8-pin plastic DIP, SO-8 surface mount, and TO-99 metal packaging.
FEATURES
● CMR 86dB min OVER TEMPERATURE
● GAIN ERROR: 0.01% max
● NONLINEARITY: 0.001% max
● NO EXTERNAL ADJUSTMENTS
REQUIRED
● EASY TO USE
● COMPLETE SOLUTION
● HIGHLY VERSATILE
● LOW COST
● PLASTIC DIP, TO-99 HERMETIC METAL,
AND SO-8 SOIC PACKAGES
APPLICATIONS
● DIFFERENTIAL AMPLIFIER
● INSTRUMENTATION AMPLIFIER
BUILDING BLOCK
● UNITY-GAIN INVERTING AMPLIFIER
● GAIN-OF-1/2 AMPLIFIER
● NONINVERTING GAIN-OF-2 AMPLIFIER
● AVERAGE VALUE AMPLIFIER
● ABSOLUTE VALUE AMPLIFIER
● SUMMING AMPLIFIER
● SYNCHRONOUS DEMODULATOR
● CURRENT RECEIVER WITH COMPLIANCE
TO RAILS
● 4mA TO 20mA TRANSMITTER
● VOLTAGE-CONTROLLED CURRENT
SOURCE
● ALL-PASS FILTERS
