ADIS16060BCCZ LGA-16 attitude sensor/gyroscope ADI original stock

describe

ADIS16060 is a yaw rate gyroscope with an integrated serial peripheral interface (SPI). It has externally selectable bandwidth response and scalable dynamic range.

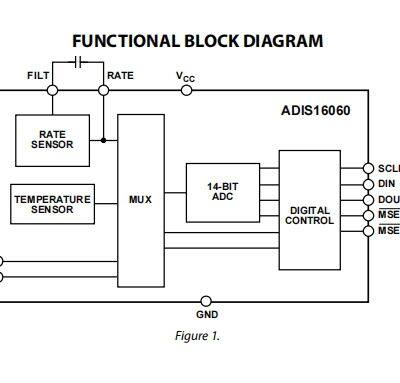

The SPI port provides access to a rate sensor, an internal temperature sensor, and two external analog signals (using an internal ADC). The digital data available on the SPI port is proportional to the angular rate on the axis perpendicular to the top surface of the software package.

An additional output pin provides an accurate voltage reference. The digital self-test function is to excite sensors through electromechanical means to test the operation of sensors and signal conditioning circuits.

ADIS16060 has an 8.2 mm x 8.2 mm x 5.2 mm, 16 terminals, and a peripheral Land Grid Array (LGA) package.

FEATURES

Complete angular rate digital gyroscope
14-bit resolution
Scalable measurement range
Initial range: ±80°/sec (typical)
Increase range with external resistor
Z-axis (yaw rate) response
SPI digital output interface
High vibration rejection over wide frequency
2000 g-powered shock survivability
1 kHz bandwidth
Selectable using external capacitor
Externally controlled self-test
Internal temperature sensor output
Dual auxiliary 14-bit ADC inputs
Absolute rate output for precision applications
5 V single-supply operation
8.2 mm × 8.2 mm × 5.2 mm package
−40°C to +105°C operation
RoHS compliant
APPLICATIONS
Platform stabilization
Image stabilization
Guidance and control
Inertial measurement units

Robotics
