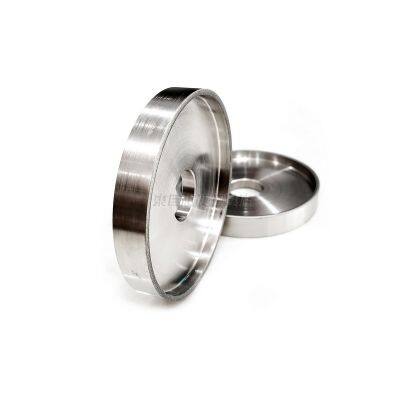

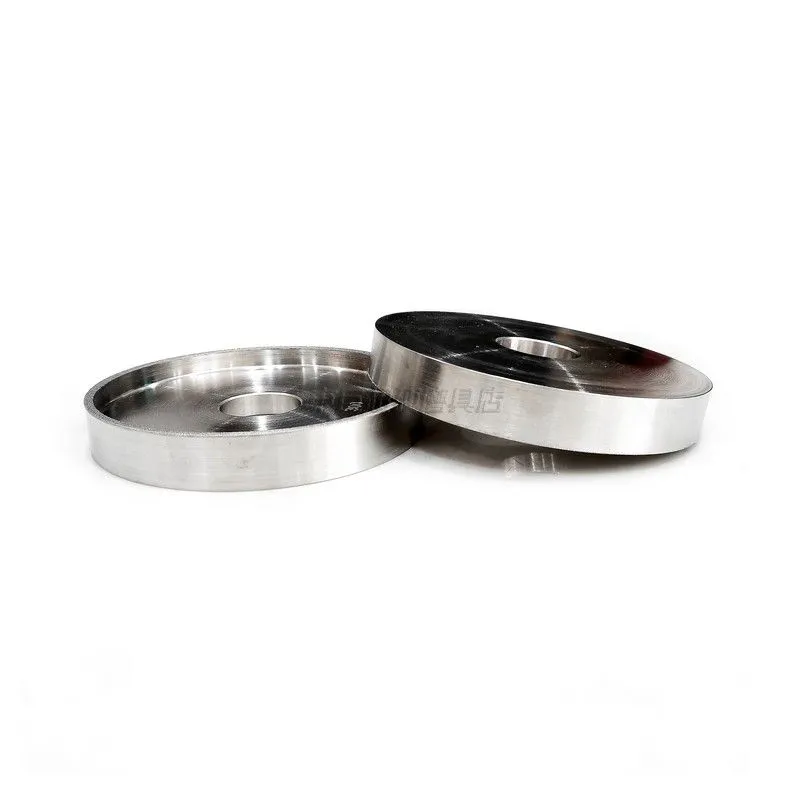

Help CenterCustomized Cup Shaped Electroplated Grinding Wheel for Machining Hard Alloy Knives With Precision Grinding of 1000 Grit Diamond Sand
Related Products
-
Precision Grinding of 400 Mesh Tungsten Steel Cutting Tools With Double Beveled Sharp Angle Grinding Wheel Electroplated Diamond SandCNY 450 - 500MOQ: 5 Pieces -
1A1 Flat Shape Electroplated Diamond Grinding Wheel for Tungsten CarbideCNY 300 - 350MOQ: 5 Pieces
-
11C9 Bowl Shape Electroplated Diamond Grinding Wheel for CarbideUS$ 200 - 240MOQ: 10 Pieces
-
Customized 1EE1 Electroplated Diamond and CBN Grinding Wheel Sharp Edge Abrasive Tools for Metal and Non Metal SharpeningCNY 420 - 500MOQ: 2 Pieces
-
4inch Electroplated Diamond Grinding Wheel Dia 100mm Hole 10mm 1A1 Flat Shape for Tungsten Agate StoneCNY 190 - 200MOQ: 5 Pieces
With the continuous development of industrial technology, the application of precision grinding in various fields is becoming increasingly widespread. As an important tool in precision grinding, electroplated diamond grinding wheels are gradually receiving attention from the grinding industry. Cup shaped electroplated diamond grinding wheel is a diamond grinding tool prepared using electrochemical principles, and its unique manufacturing process endows it with many properties. Firstly, electroplated diamond grinding wheels have extremely high grinding efficiency and machining accuracy, which can meet the needs of modern industry for efficient and high-precision machining. Secondly, the electroplating diamond grinding wheel has low grinding temperature and small grinding force, which can effectively reduce the thermal damage and deformation of the workpiece, and is particularly suitable for processing materials with high hardness, high precision, and high added value. In addition, the abrasive distribution of electroplated diamond grinding wheels is uniform and can be customized according to needs, with good geometric shape and dimensional accuracy.
Brand: Dongju
Shape: 6A2 cup shape
Material: Diamond sand
Category: Electroplating binder

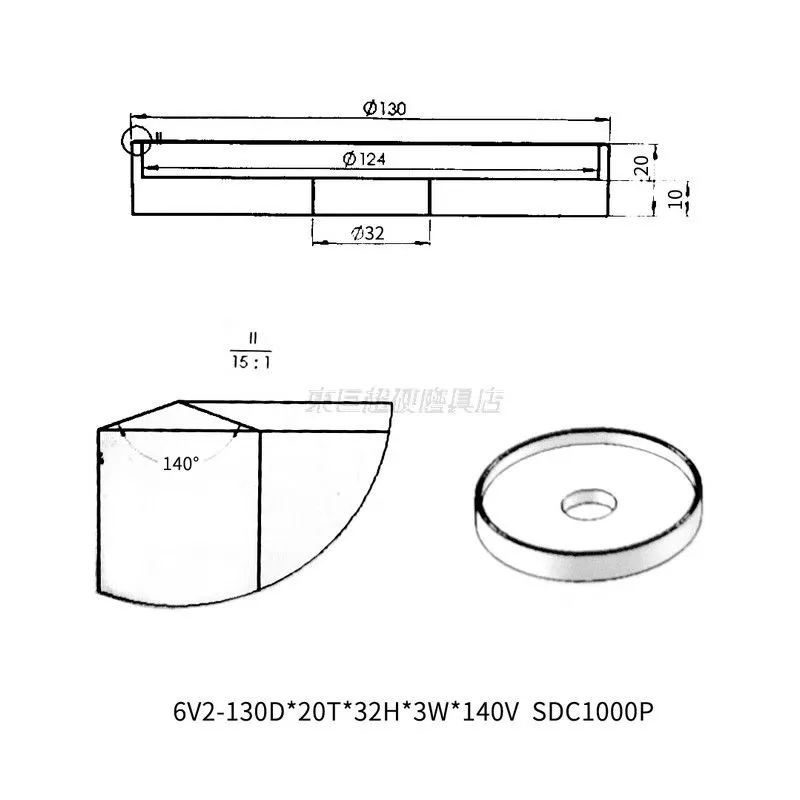

Specification: 130D * 20T * 32H * 3W * 140V
Scope of application: Tool grinding
Weight: 1800g
Diameter: 130mm
Width: 20mm
Wall thickness: 3mm
Inner hole: 32mm
Angle: 140 degrees
Particle size: 300 #/700 #/1000#
Customized: Yes
Imported or not: No
Origin: Dongguan
Functional use: V-groove machining with hard alloy cutting tools
In order to meet the processing needs of different fields and industries, Dongju Superhard Grinding Tools provides rich customization services. Customers can choose electroplated diamond grinding wheels with different particle sizes, hardness, and shapes according to their own processing requirements. At the same time, manufacturers can also design and manufacture electroplated diamond grinding wheels with special shapes and sizes according to the specific needs of customers. This customized service model not only meets the personalized needs of customers, but also further enhances the application range and market competitiveness of electroplated diamond grinding wheels.
