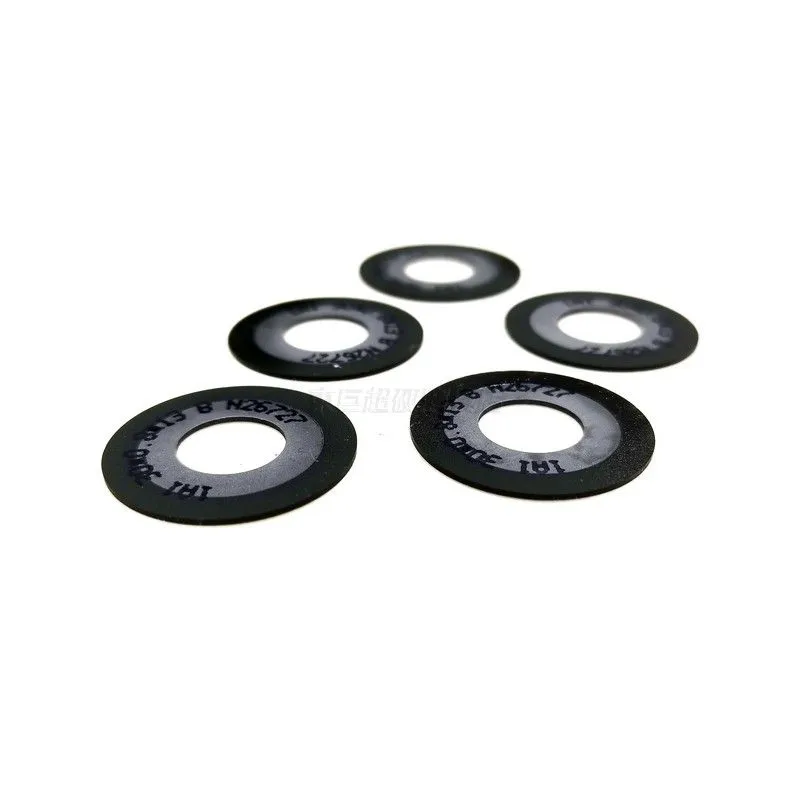

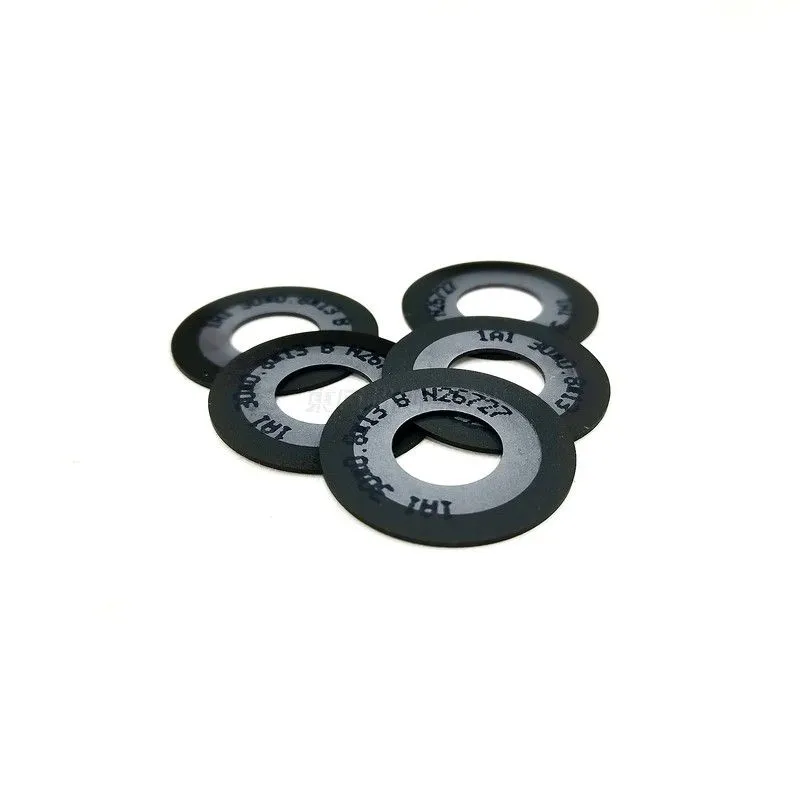

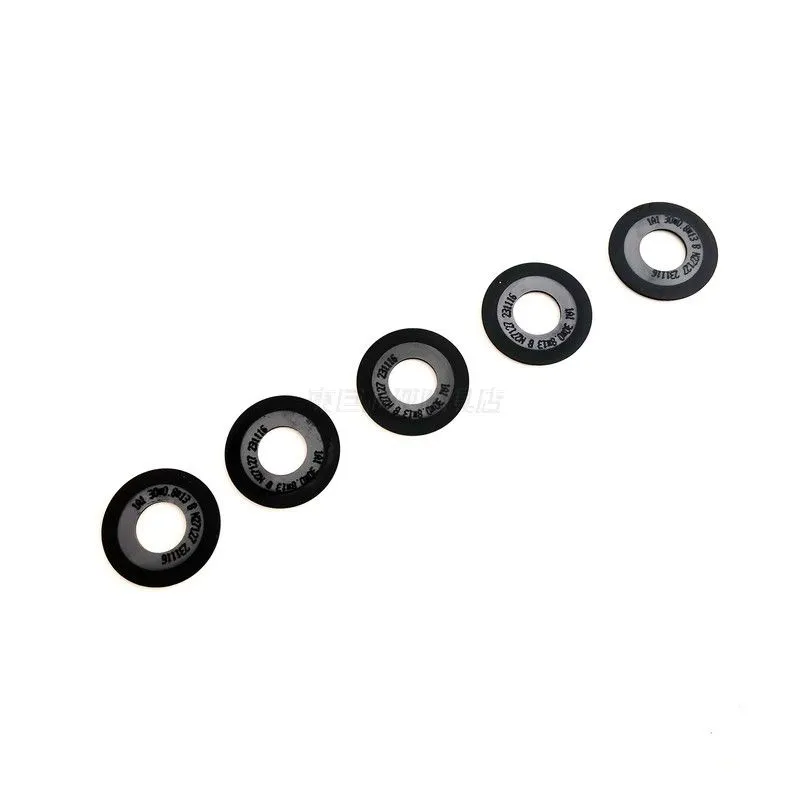

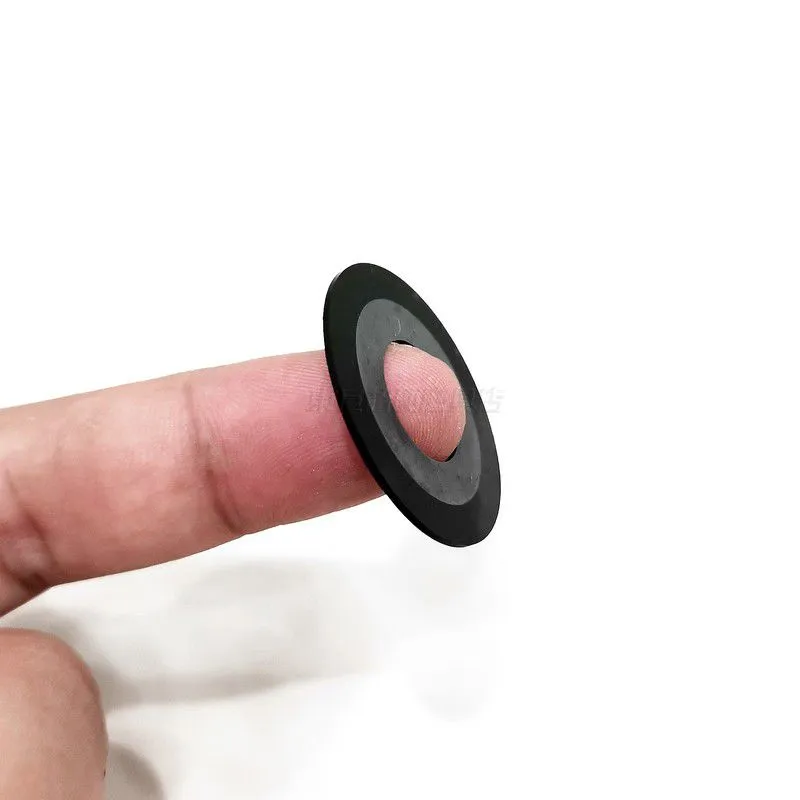

Help CenterMini Cubic Boron Nitride Resin Slice Outer Diameter 30 Ultra-thin Thickness 0.8mm CBN1200 Mesh
Related Products
-
4 Inch Electroplated Diamond CBN Cutting Wheel Super Thin High Precision Cutting DiscUS$ 240 - 270MOQ: 10 Pieces -
250mm Electroplated Diamond Circular Saw Blade Cutting Resin Glass Fiber Polyurethane Material Cutting Grinding WheelCNY 500 - 600MOQ: 5 Pieces
-
DIACRYSTON CBN Wheels 75Dx5Wx1Xx12°x0.04Rx24H CBN400MDCNY 2300 - 2600MOQ: 5 Pieces
-
Customized Processing of Carbon Fiber With Irregular Shaped Steel Sand Grinding Head Profile for Rapid Prototyping With Good RoughnessCNY 80 - 95MOQ: 10 Pieces
-
Customized Cup Shaped Electroplated Grinding Wheel for Machining Hard Alloy Knives With Precision Grinding of 1000 Grit Diamond SandCNY 650 - 700MOQ: 5 Pieces
CBN cutting blades are made by attaching CBN abrasive particles and phenolic resin to a steel substrate through pressing, sintering under certain temperature, pressure, and vacuum conditions, and precision machining through various processing methods. Due to the strong grip of resin binder on boron nitride abrasive particles and ultra-high wear resistance, they are particularly suitable for precision cutting and slotting processing of tool steel, high-speed steel, mold steel, bearing steel, heat-resistant steel, stainless steel, and cast iron.
Brand: Dongju
Model: 1A1R
Material: cubic boron nitride
Category: Resin binder
Substrate: Metal steel base
Outer diameter: 30mm

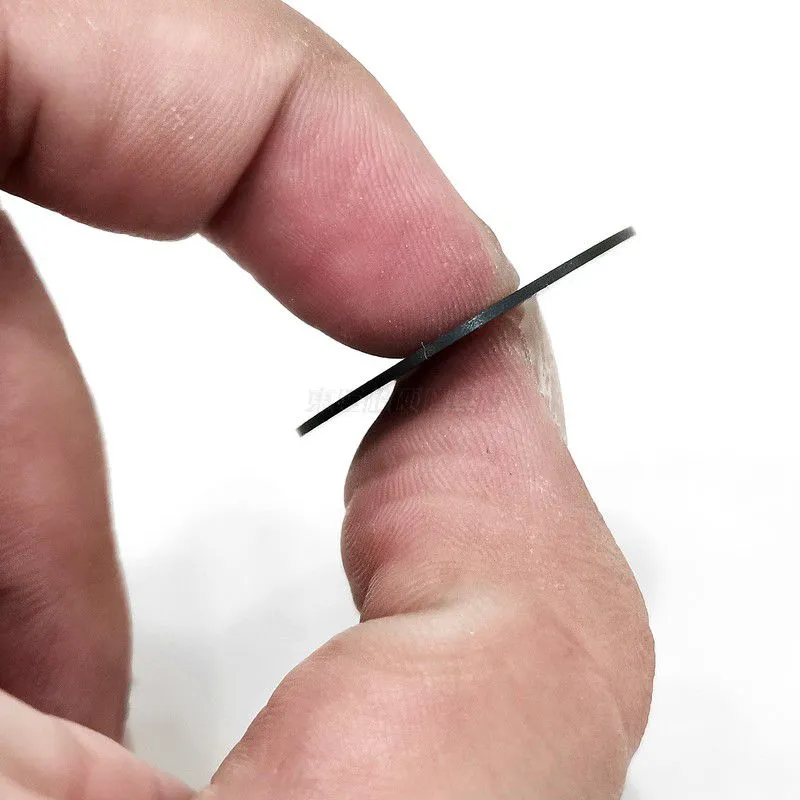

Thickness: 0.8mm
Inner diameter: 13mm
Particle size: 1200 mesh

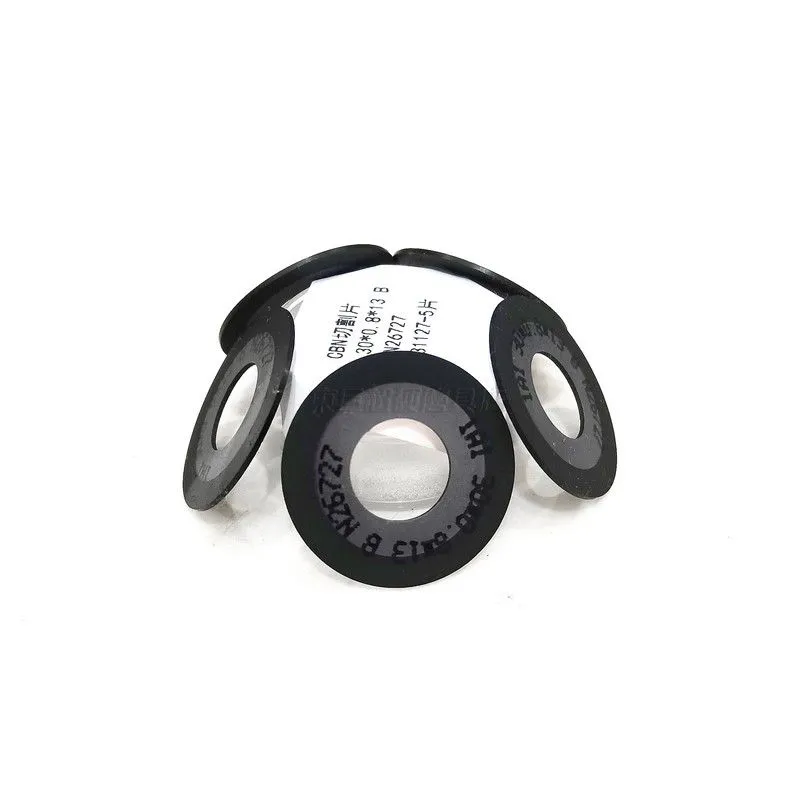

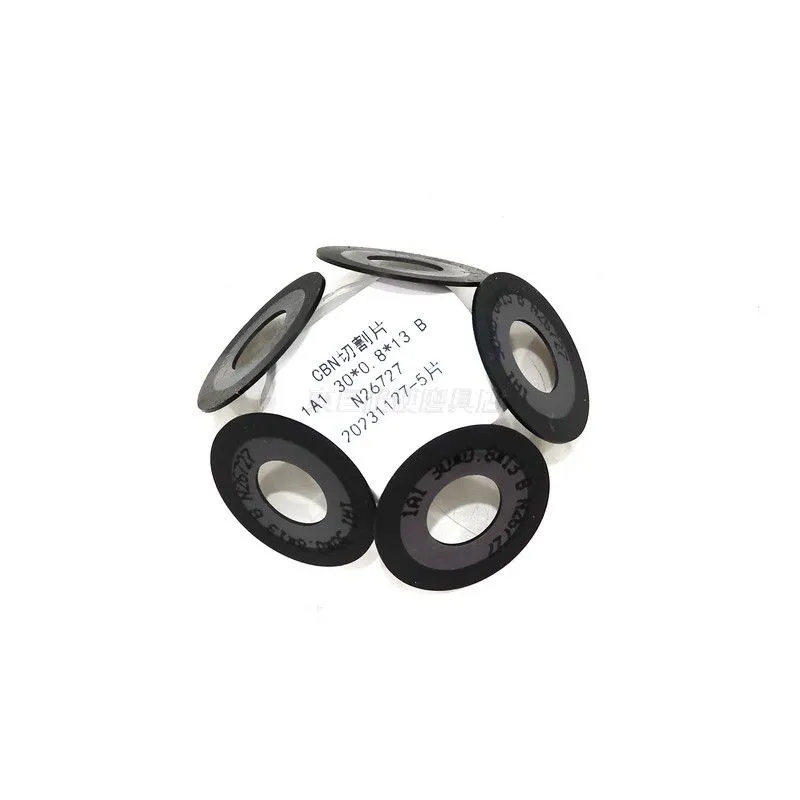

Specification: 30D * 0.8T * 13H * 4X CBN1200B
Functional use: Precision slotting and cutting of ASP30 powder metallurgy high-speed steel
Ring width: 4mm
Customized: Yes
Imported or not: No
Origin: Dongguan
Weight: 35g
The resin bonded CBN cutting blade is a cutting tool widely used in the processing of quenched materials such as high-speed steel, alloy steel, and bearing steel. The cubic boron nitride cutting blade mainly consists of two parts; Matrix and blade. The matrix is the main supporting part for bonding the cutting edge, while the cutting edge is the part that starts cutting during use. The cutting edge is constantly consumed during use, while the matrix is not. The reason why the cutting edge can play a cutting role is because it contains CBN, boron nitride, which is currently the hardest substance second only to diamond. It rubs and cuts the processed object in the cutting edge. CBN particles are wrapped in metal inside the cutting edge.
