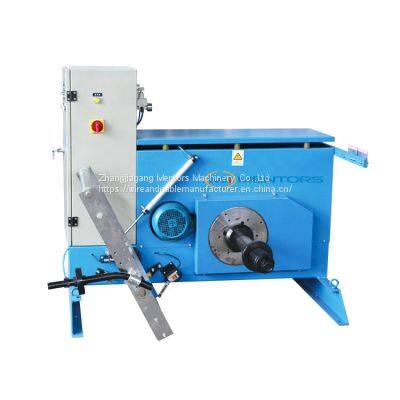

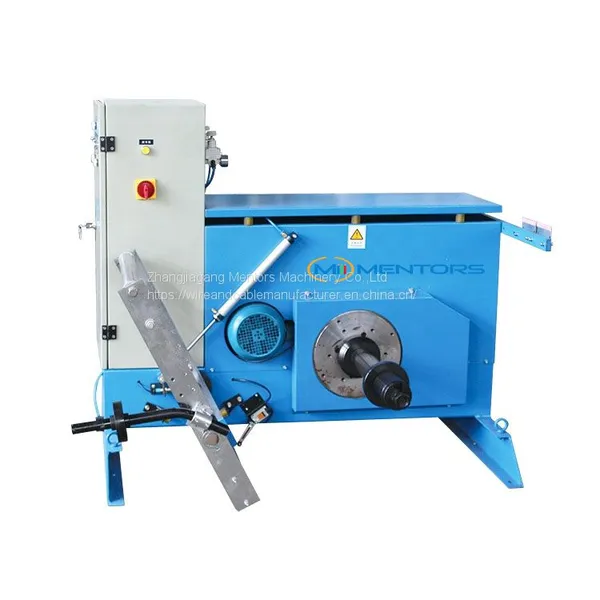

1-Application:
This type machine is mainly used for annealed twisting copper wire.
2-Feature:
1)Types: 300,500,630,800
2)Max speed: 2500-3000r/min
3) Raw material: copper wire, tin coated wire
4) Twisting type: double twist
3-Main Specification:
Machine type |
SY-300P |
SY-500P |
SY-500P/B |
SY-650P |
SY-800P |
Use |

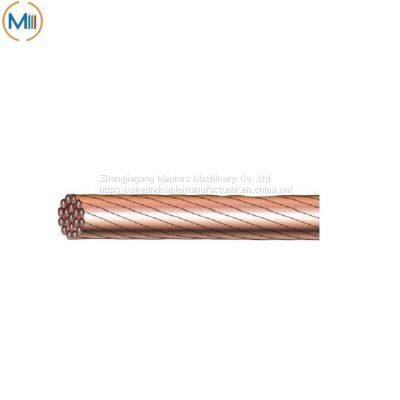

For bunching bare copper, tinned wire, enameled wire |
||||
Control type |
PPLC+HMI+Inverter control |
||||
Twisting section area((mm²) |
0.035~0.45 |
0.05~2.50 |
0.05~4.00 |
0.18~6.00 |
2.50~16.00 |
Copper wire dia.(mm) |
0.05~0.25 |
0.10~0.45 |
0.10~0.52 |
0.18~1.00 |
0.50~1.20 |
Twisting direction |
S or Z |
||||
Take-up tension |
tension controlled by magnetic clutch |
||||
Max main shaft speed |
3000r/min |
3000r/min |
2500r/min |
2000r/min |
1200r/min |
Bobbin loading&unloading type |
Hydraulic type |
||||
Max bobbin dia. |
300 |
500 |
500 |
630 |
800 |
Auto stop unit |
While reach setting length, inside outside wire break, or other error auto stops |
||||
Brake |
Magnetic brake |
||||
Motor power(KW) |
4 |
5.5 |
5.5 |
7.5 |
11 |
Main shaft center height |
630mm |
700mm |
700mm |
850mm |
900mm |
4-Advantages:
1) More stability, high production efficiency, low noise and easy to operation.
2) Spring bow can prolong the life.
