Help Center250mm Electroplated Diamond Circular Saw Blade Cutting Resin Glass Fiber Polyurethane Material Cutting Grinding Wheel
Related Products
-
Mini Cubic Boron Nitride Resin Slice Outer Diameter 30 Ultra-thin Thickness 0.8mm CBN1200 MeshCNY 500 - 600MOQ: 5 Pieces -
4 Inch Electroplated Diamond CBN Cutting Wheel Super Thin High Precision Cutting DiscUS$ 240 - 270MOQ: 10 Pieces
-
45 Steel Electroplated Diamond 300 Mesh 60 Degree Diamond Connection Shaft Diameter 20mmUS$ 280 - 350MOQ: 10 Pieces
-
Customized Electroforming Grinding Rod, Japanese Casting Process, Diamond Grinding Tool, Zirconia Ceramic, Sapphire Deep Hole DrillCNY 280 - 350MOQ: 10 Pieces
-
Customized 6mm Electroplated Diamond Round File Metal Alloy Material Cutting and GrindingUS$ 200 - 240MOQ: 10 Pieces

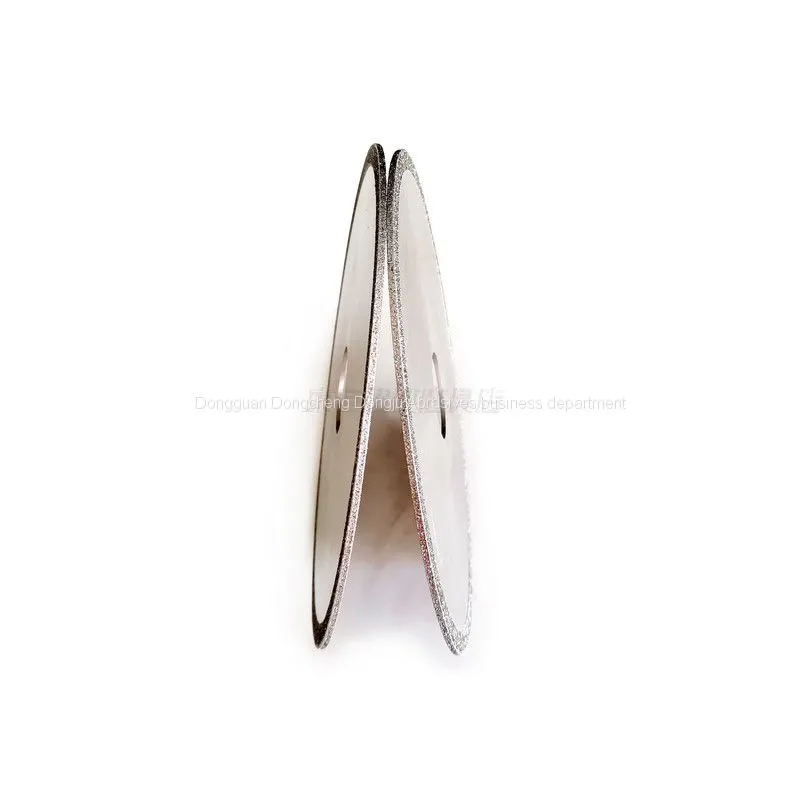

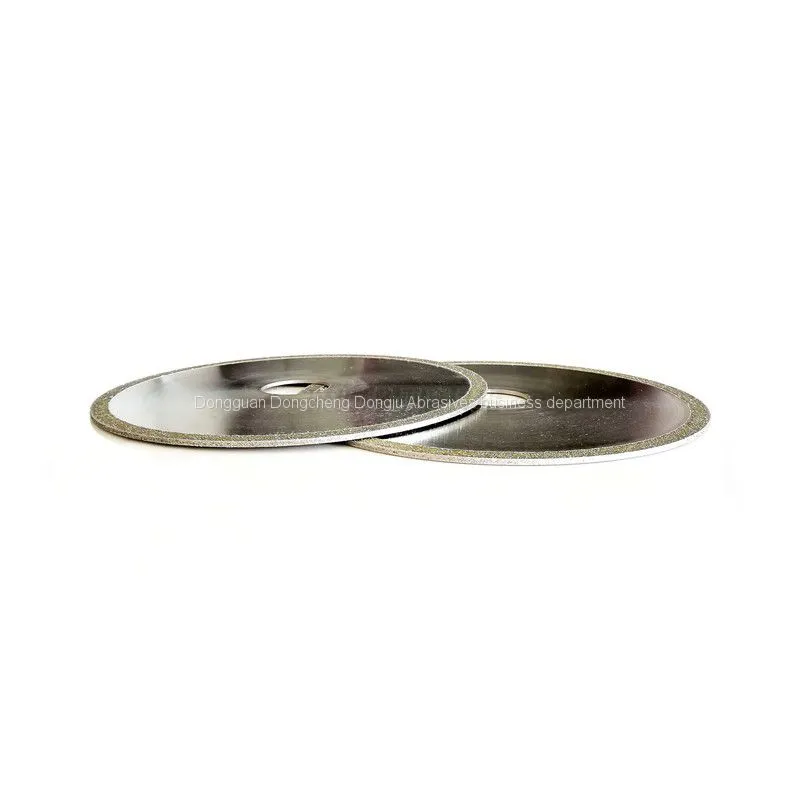

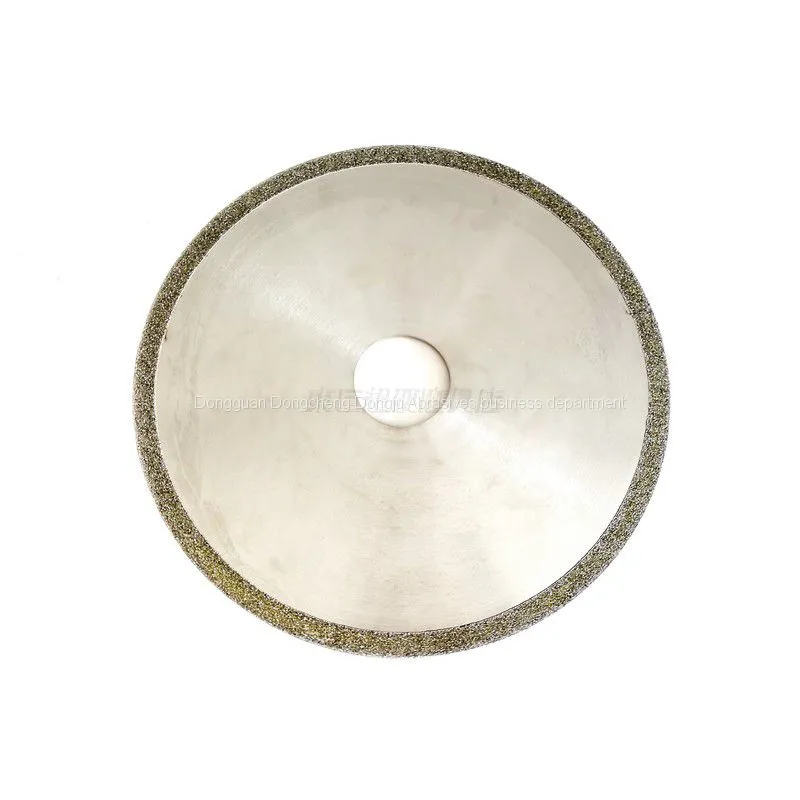

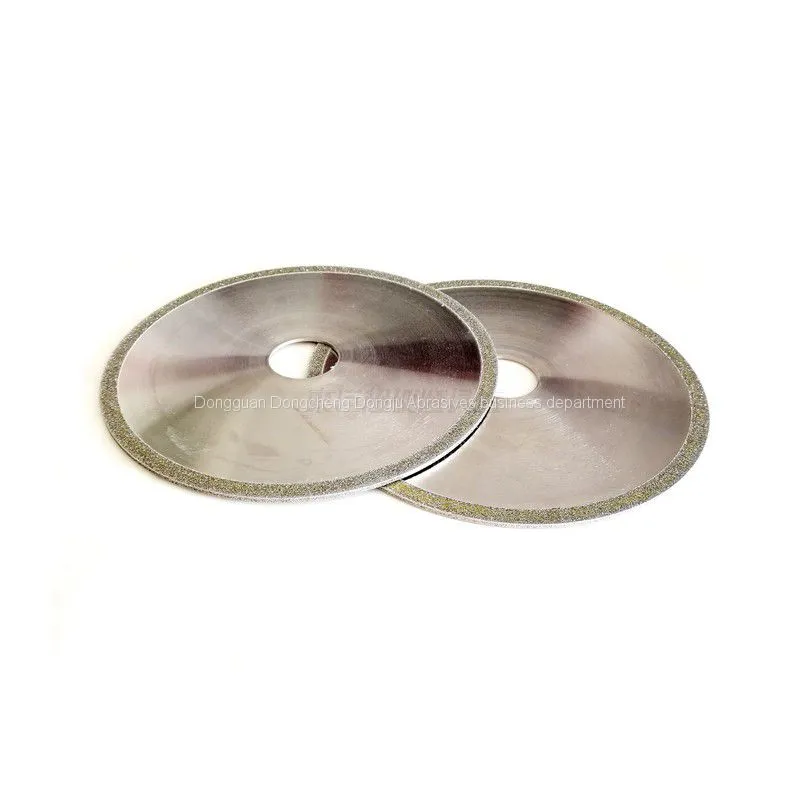

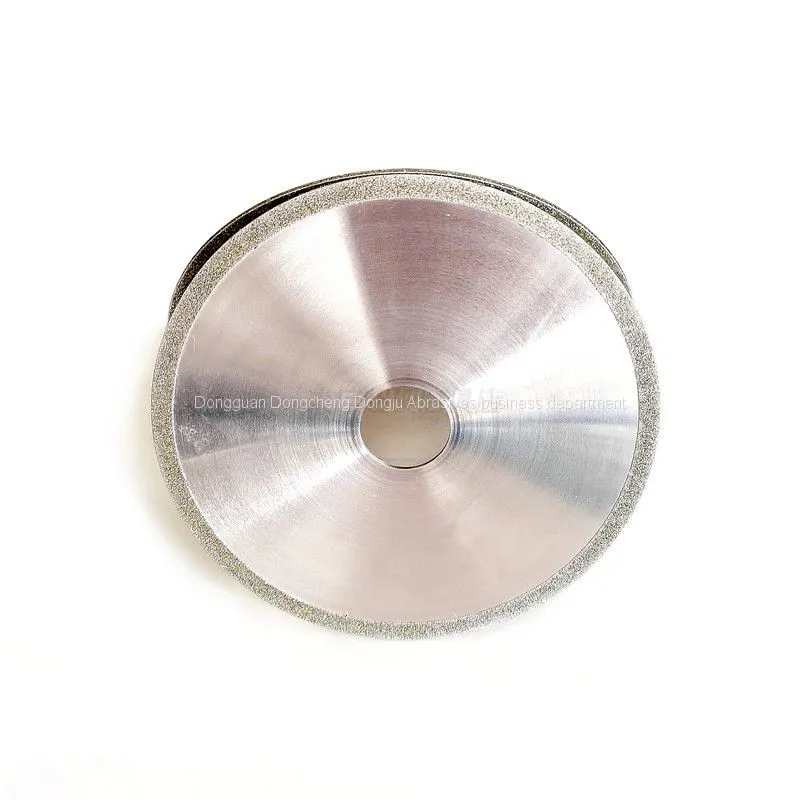

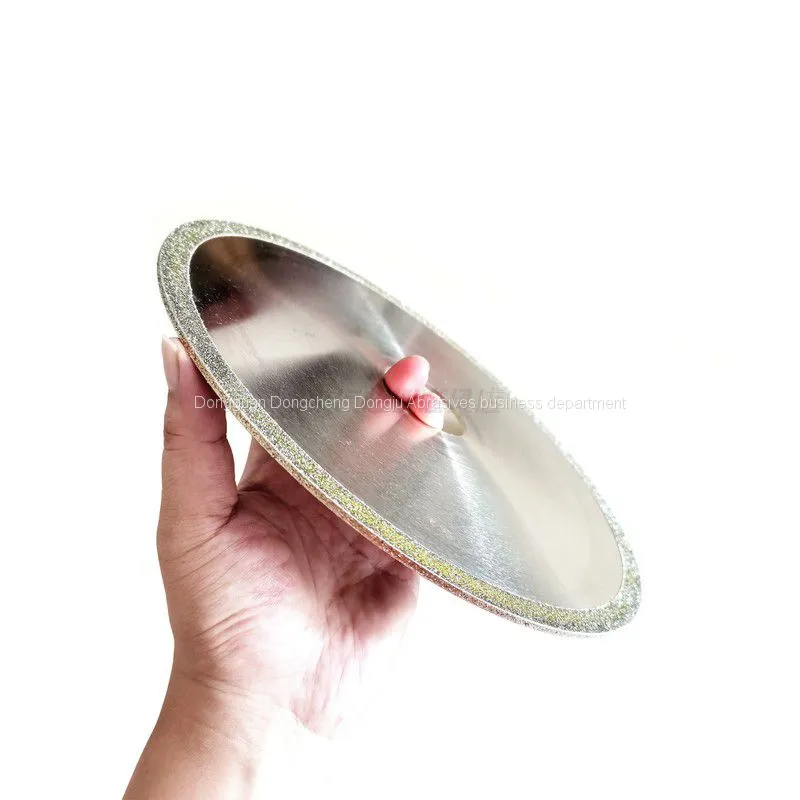

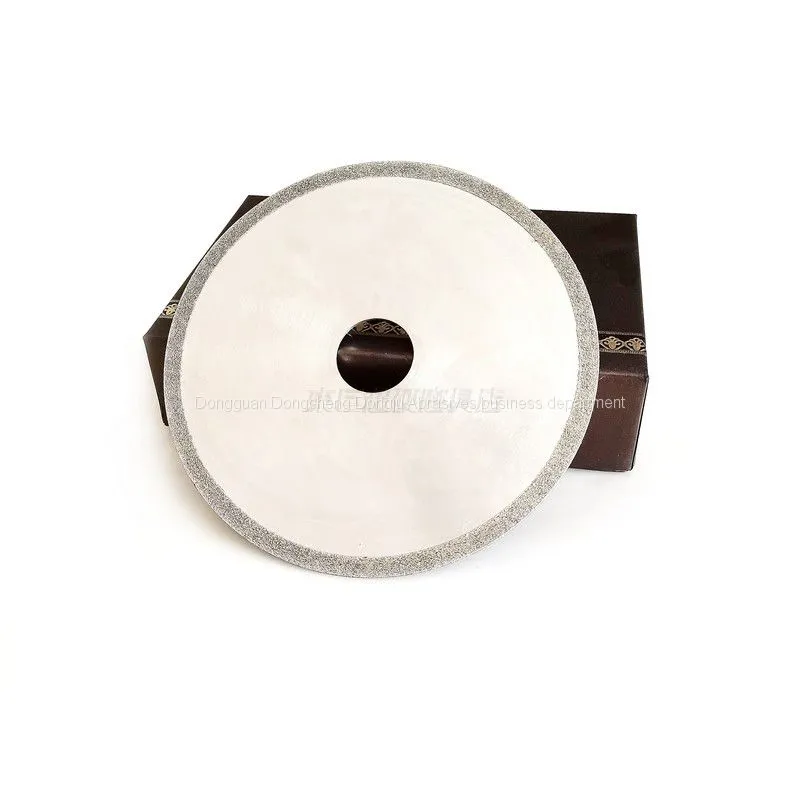

Electroplated diamond cutting blade/diamond saw blade is one of the commonly used diamond tools for cutting various materials. It is formed by attaching the diamond blade or diamond powder to the substrate through electroplating process. Diamond saw blades have a wide range of applications.
Shape: 1A1R
Binder type: electroplating
Abrasive: Diamond
Base material: High carbon chromium steel

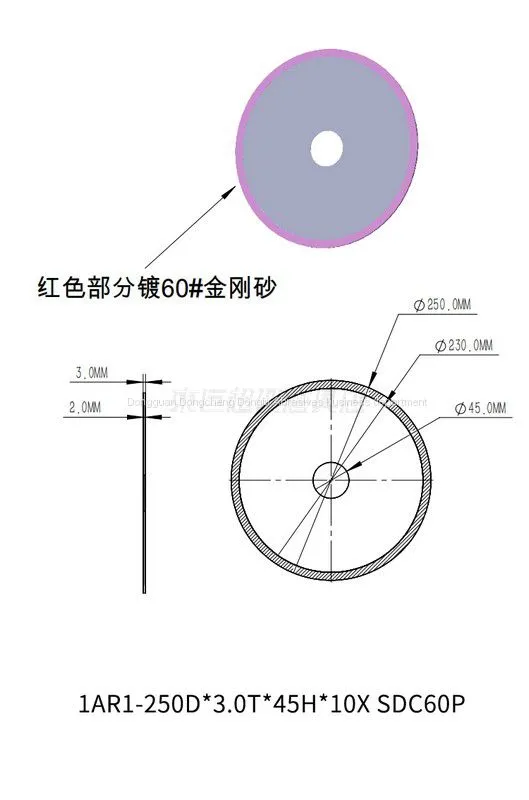

Size: 250D * 3.0T * 45H * 10X SDC60P
Diameter: 250mm

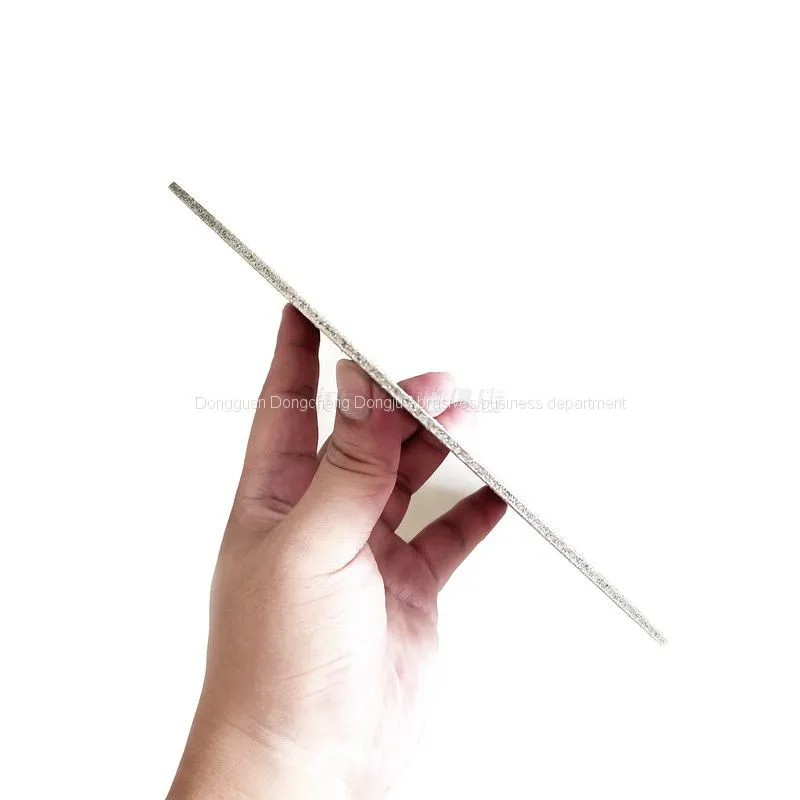

Thickness: 3.0mm
Inner diameter: 45mm

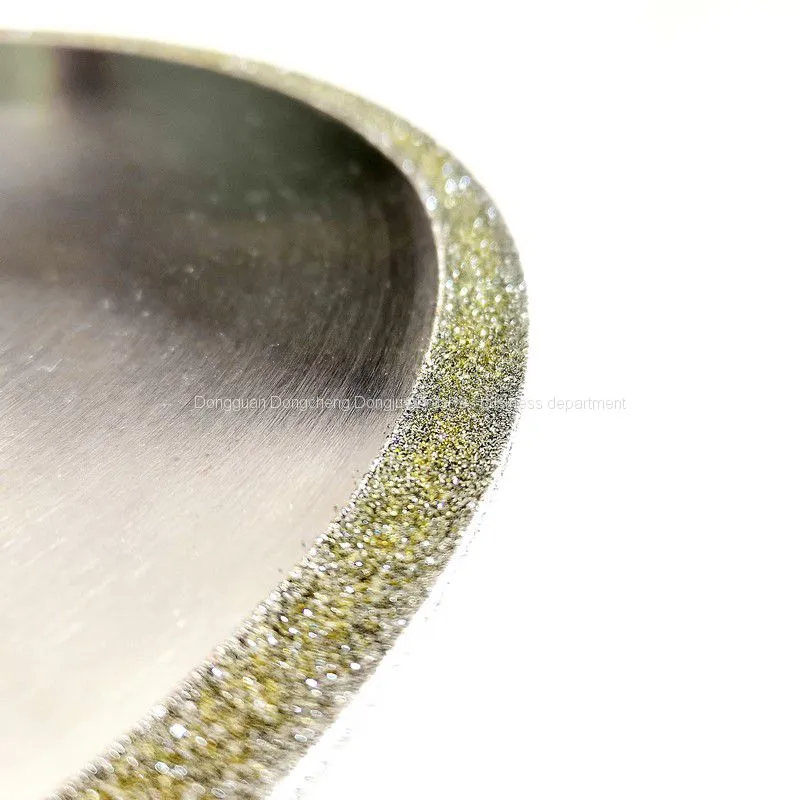

Abrasive ring width: 10mm
Usage: Cutting and grooving of resin glass fiber and polyurethane composite materials
Application fields: High hardness crystals such as single (polycrystalline) silicon, stone cutting, as well as glass, ceramics, gemstones, graphite, door and window processing industries
Origin: Dongguan
Attention: The production lead time is about 7 working days, and other sizes can also be customized. If you have special requirements, please leave a message. Our company can also customize metal bond and resin bond cutting pieces.
