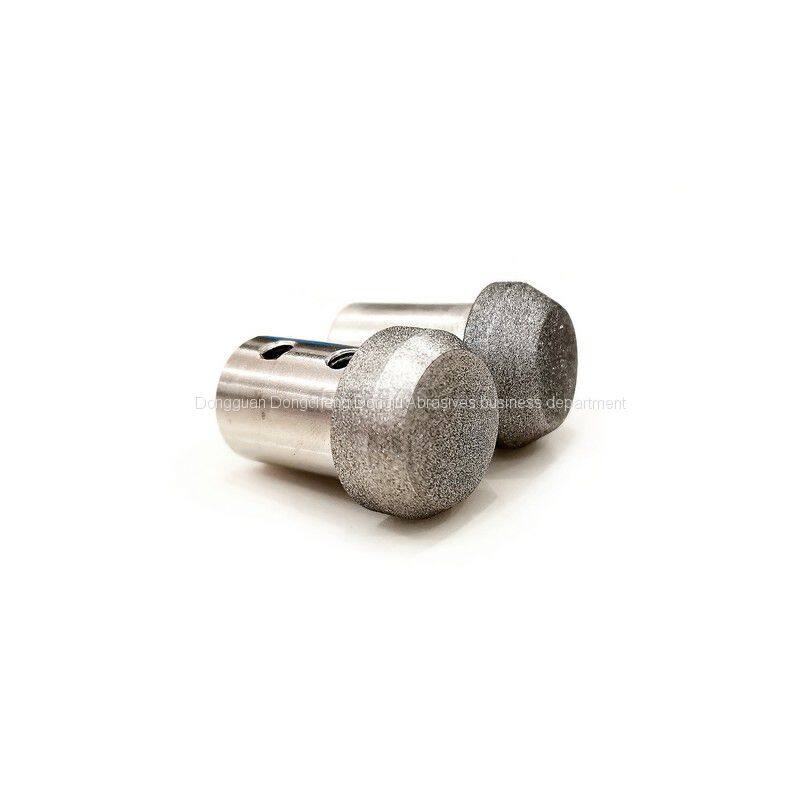

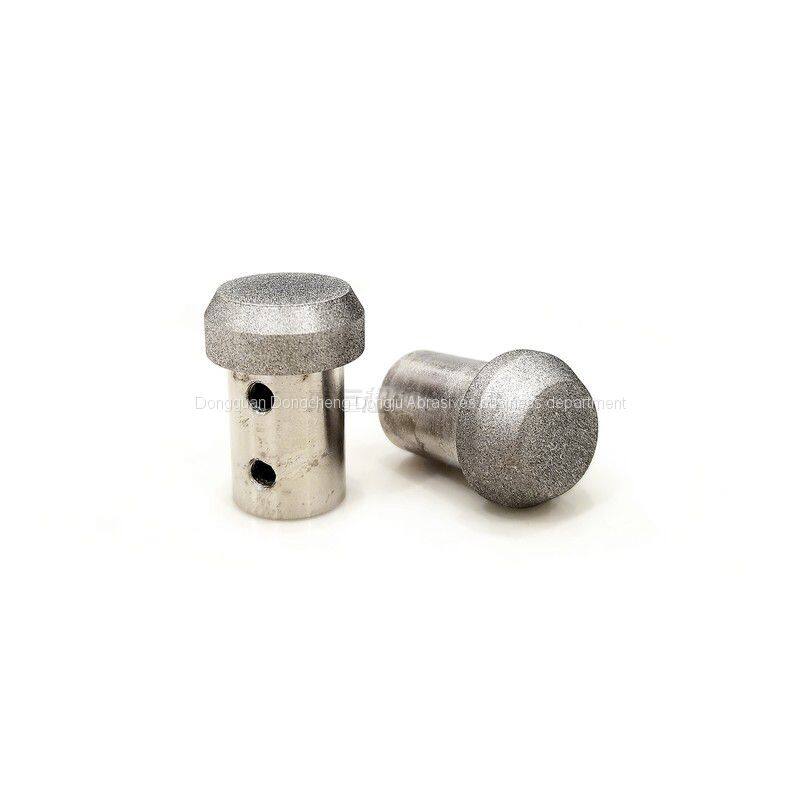

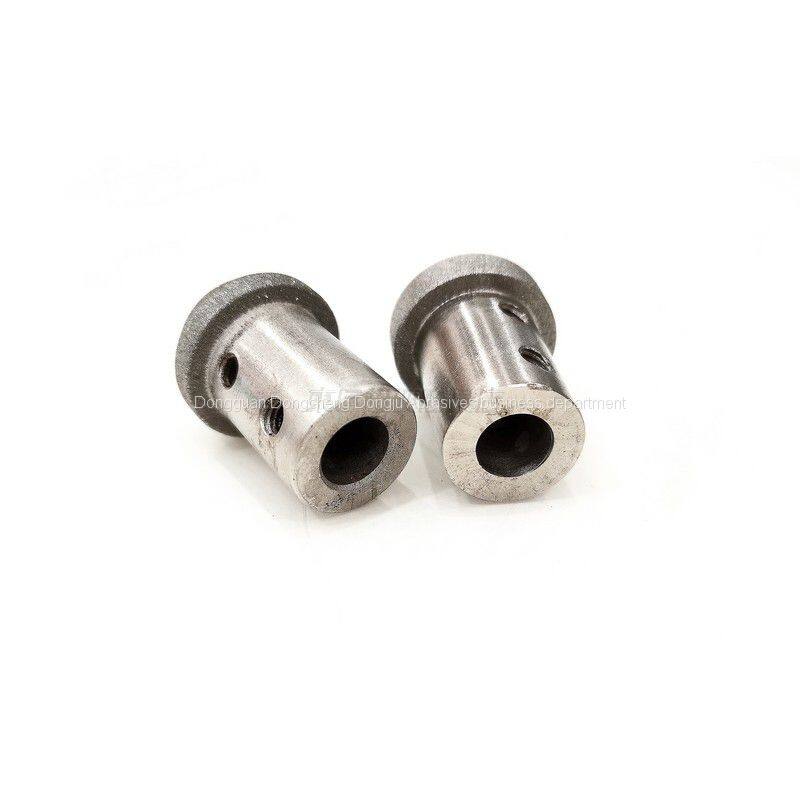

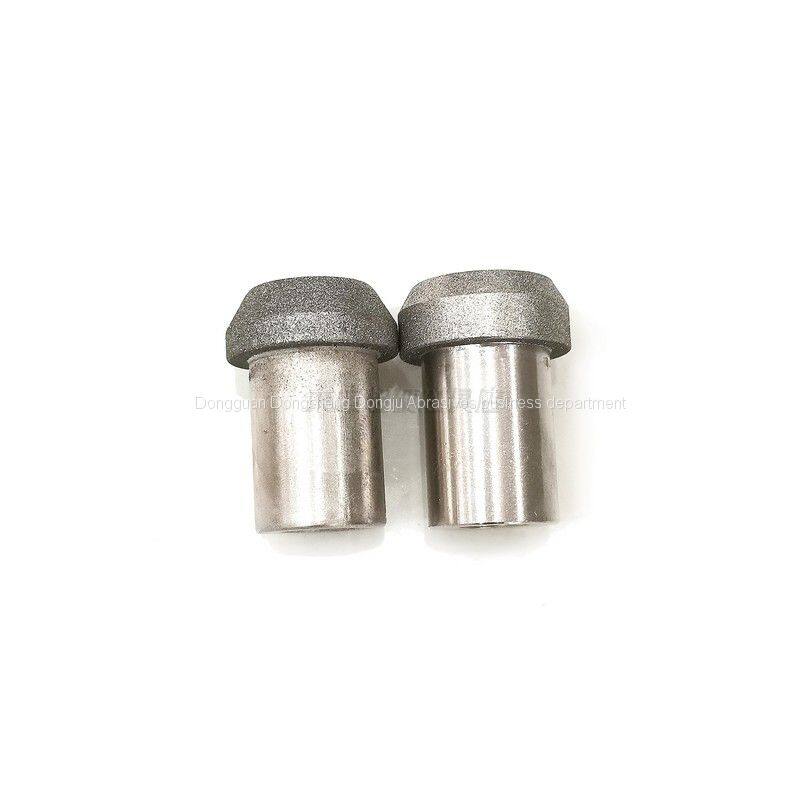

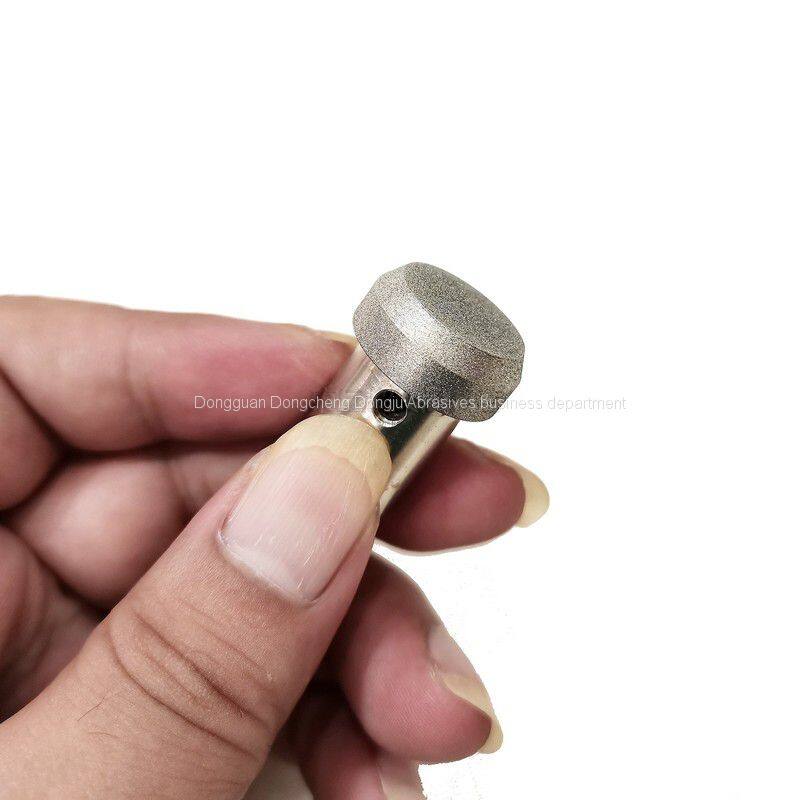

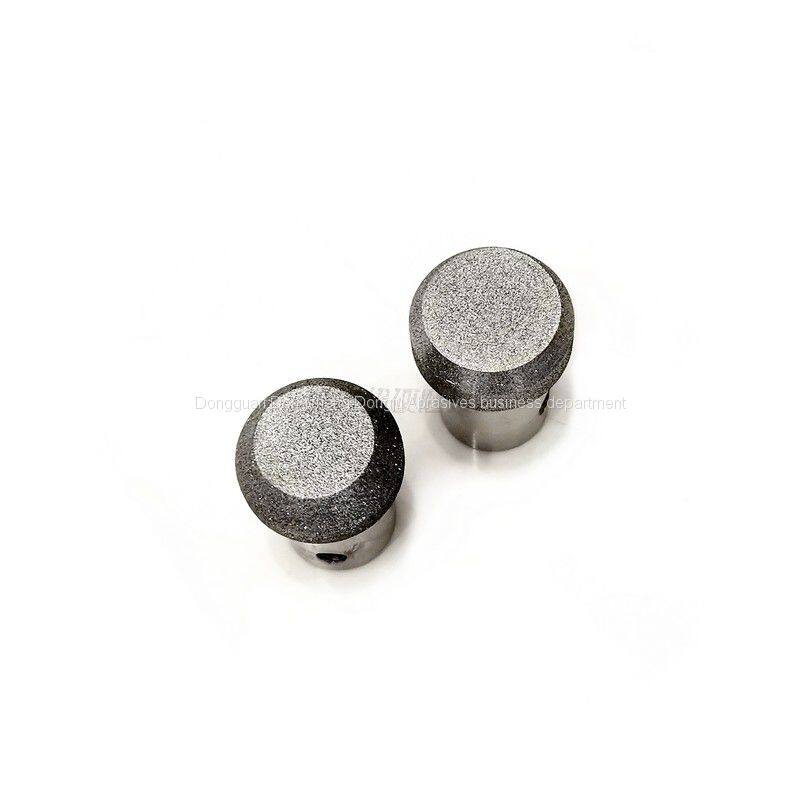

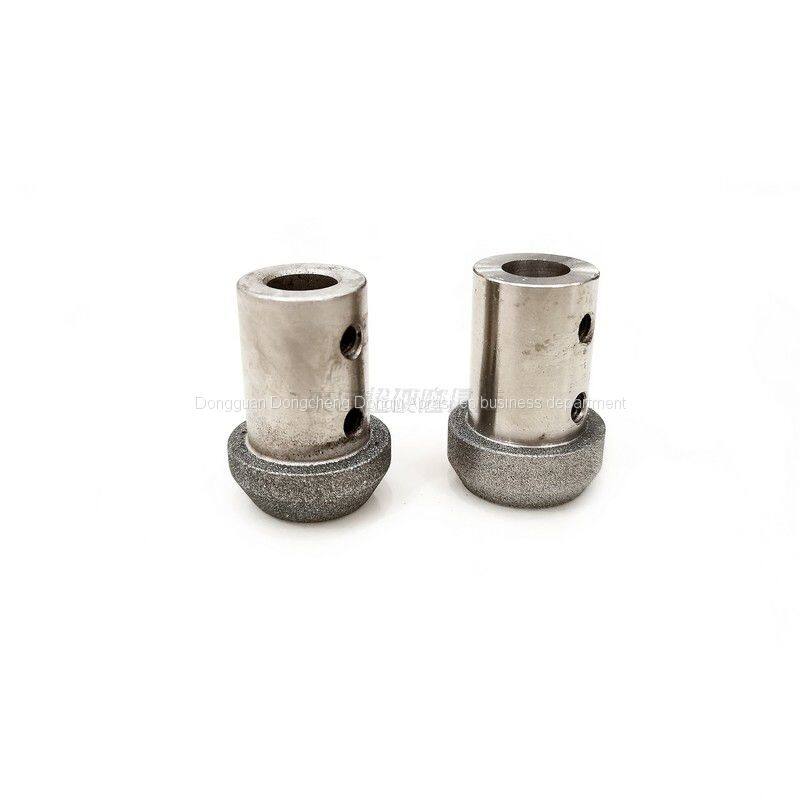

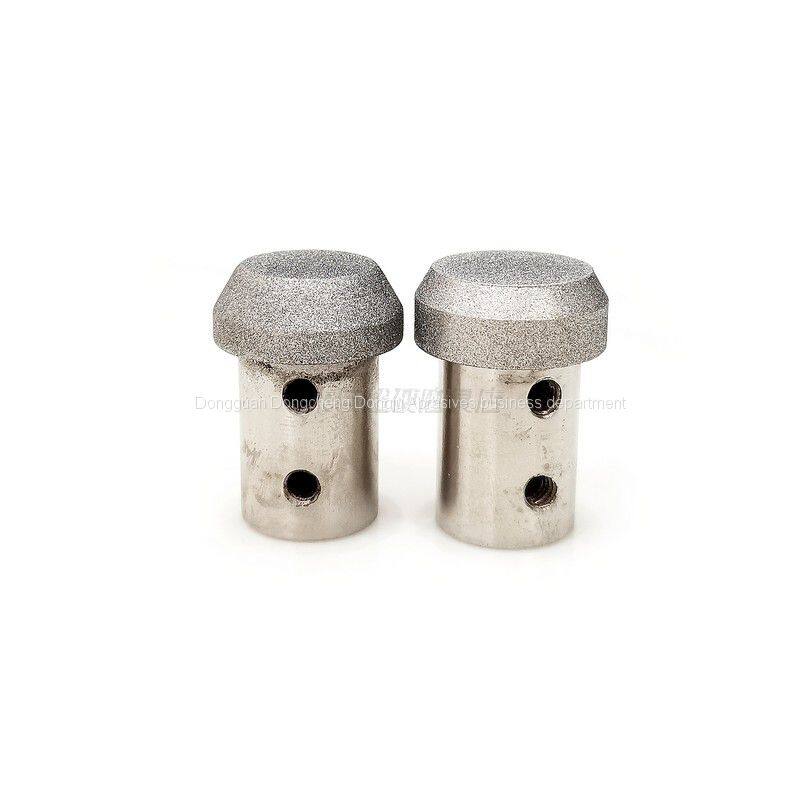

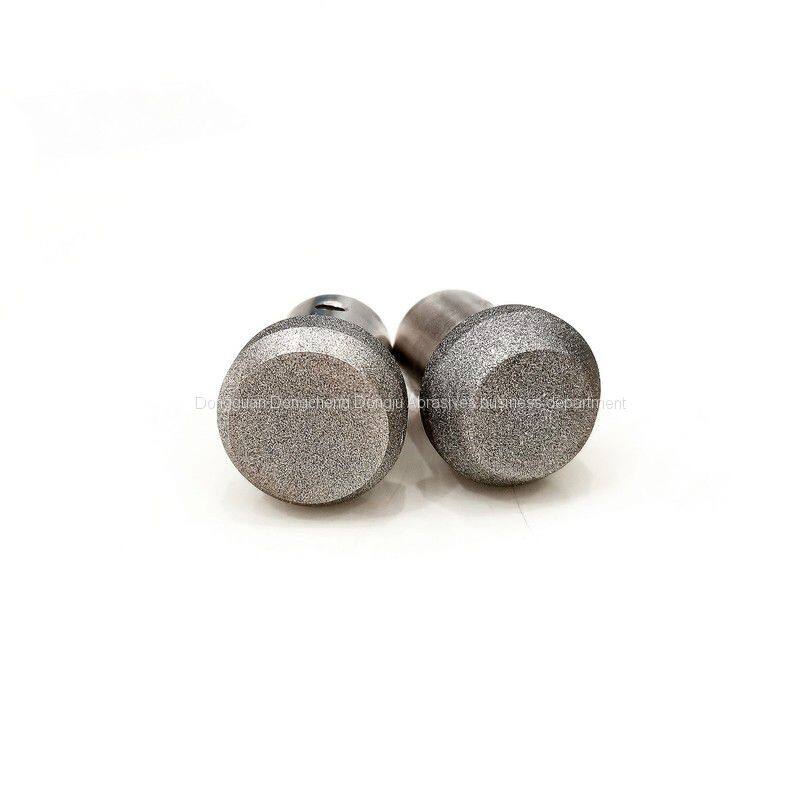

45 steel electroplated diamond 300 mesh 60 degree diamond connection shaft diameter 20mm
- 262 Piece / Pieces per Month
- shenzhen
- T/T
- 7 days
- Customized electroforming grinding rod, Japanese casting process, diamond grinding tool, zirconia ceramic, sapphire deep hole drill
- Customized 6mm Electroplated Diamond Round File Metal Alloy Material Cutting and Grinding
- Diamond resin grinding wheel used in Walter five axis CNC grinding machine for machining milling cutter bits
- Customized processing of tungsten steel complex concave 155 degree diamond shaped grinding rod
- 4C9 disc-shaped cubic boron nitride grinding wheel resin bond with outer diameter of 125 B151 milling cutter, reamer, and broach
- Customized Round Head Diamond Resin Grinding Rod R15 Semiconductor Ceramic Precision Grinding 32mm Straight Shank Arc SDC140 Mesh
Product Details
Brand Name: | DONGJU | Place of Origin: | China | Model Number: | SDC300P |
Size: | 20D*8T*28L*15B | Type: | Other, mounted points |
Product Description
Diamond connecting shaft is an important mechanical component mainly used for connecting and transmitting power. It is usually made of high-strength materials, such as alloy steel, bearing steel, or alloy cast iron, and the surface is usually hardened and sandblasted to improve wear resistance and fatigue strength. Diamond connecting shafts have high load-bearing capacity and can maintain good performance under high-speed operation, and are often used in various mechanical transmission systems, such as engines, reducers, and gearboxes.
Brand: Dongju

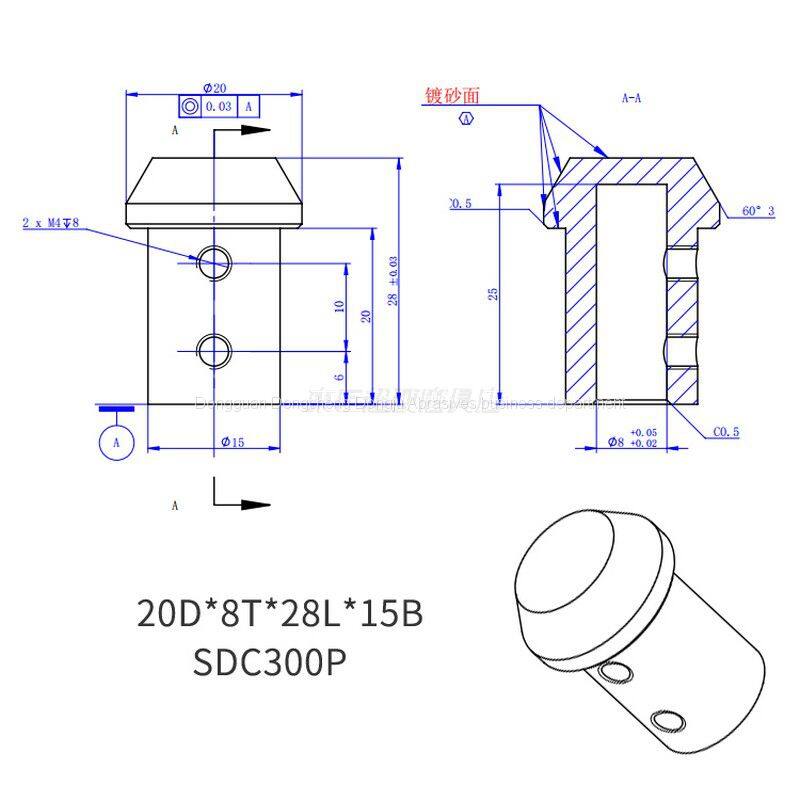

Specification: 20D * 8T * 28L * 15B SDC300P
Model: Electroplating binder
Material: 45 steel
Abrasive: Diamond
Particle size: 300#
Binder: Electroplating method
Category: truncated cone grinding head
Length: 28mm
Weight: 400g
Grinding head diameter: 20mm
Shank diameter: 15mm
Grinding head length: 8mm
Customization: Yes
Imported or not: No
Origin: Dongguan
Functional use: mainly used for connecting and transmitting power
Scope of application: In various mechanical transmission systems
The design and manufacturing of diamond sand connecting shafts require multiple processes and strict testing standards to ensure their performance and quality reach a good level. The main forms of failure of the diamond sand connecting shaft are fatigue fracture and excessive wear, so regular maintenance and replacement are required during use to avoid failure or damage. In addition, in order to ensure the normal operation of the diamond sand connecting shaft, it is necessary to make overall adjustments and maintenance to the mechanical transmission system, including lubrication, cleaning, and fastening work.
