Help CenterCustomized Trapezoidal 52 Degree Grinding Head for Ceramic Processing With Diamond Grinding Rod and Diamond Sand Chamfering Grinding Head
Related Products
-
45 Steel Electroplated Diamond 300 Mesh 60 Degree Diamond Connection Shaft Diameter 20mmUS$ 280 - 350MOQ: 10 Pieces -
Customized Electroforming Grinding Rod, Japanese Casting Process, Diamond Grinding Tool, Zirconia Ceramic, Sapphire Deep Hole DrillCNY 280 - 350MOQ: 10 Pieces
-
Customized 6mm Electroplated Diamond Round File Metal Alloy Material Cutting and GrindingUS$ 200 - 240MOQ: 10 Pieces
-
Customized Processing of Tungsten Steel Complex Concave 155 Degree Diamond Shaped Grinding RodCNY 80 - 90MOQ: 10 Pieces
-
Customized Round Head Diamond Resin Grinding Rod R15 Semiconductor Ceramic Precision Grinding 32mm Straight Shank Arc SDC140 MeshCNY 500 - 600MOQ: 10 Pieces

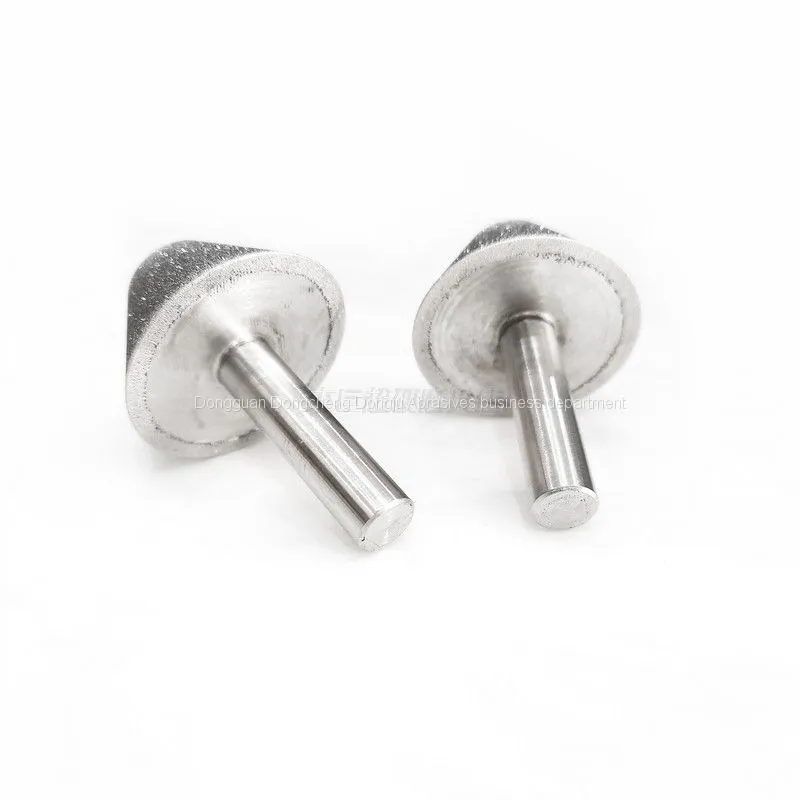

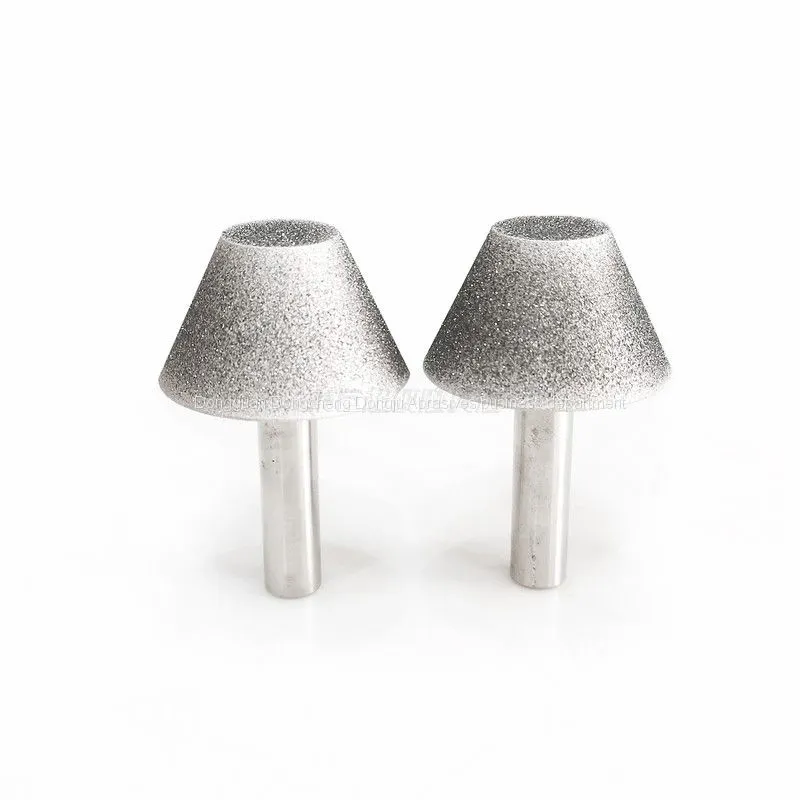

Dongju electroplated trapezoidal diamond grinding head is a type of grinding head tool that combines abrasive and nickel flow with an electroplated bond. It is generally installed in internal cylindrical grinding machines, polishing machines, polishing machines, or self-made installation tools, and is commonly used for processing optical lenses, prisms, watch glass, ceramics, and sapphire glass. By processing various profile workpieces, the effect of grinding, polishing, and polishing can be achieved. The use of Dongju diamond grinding head is unique compared to ordinary grinding wheels. It has high hardness, high compressive strength, and good wear resistance. Diamond grinding head has become an ideal tool for grinding hard and brittle materials and hard alloys in grinding processing. Using it to grind workpieces not only has fast speed, high accuracy, but also good roughness, low grinding wheel consumption, long service life, and can improve labor conditions. The function of Dongju electroplating grinding head is to select different particle sizes based on material characteristics and grinding requirements. The following are normal particle sizes: 40 #, 60 #, 80 #, 100 #, 120 #, 150 #, 180 #, 200 #, 240 #, 280 #, 320 #, 400 #, 600 #, 800 #, 1000 #, etc.
Brand: Dongju

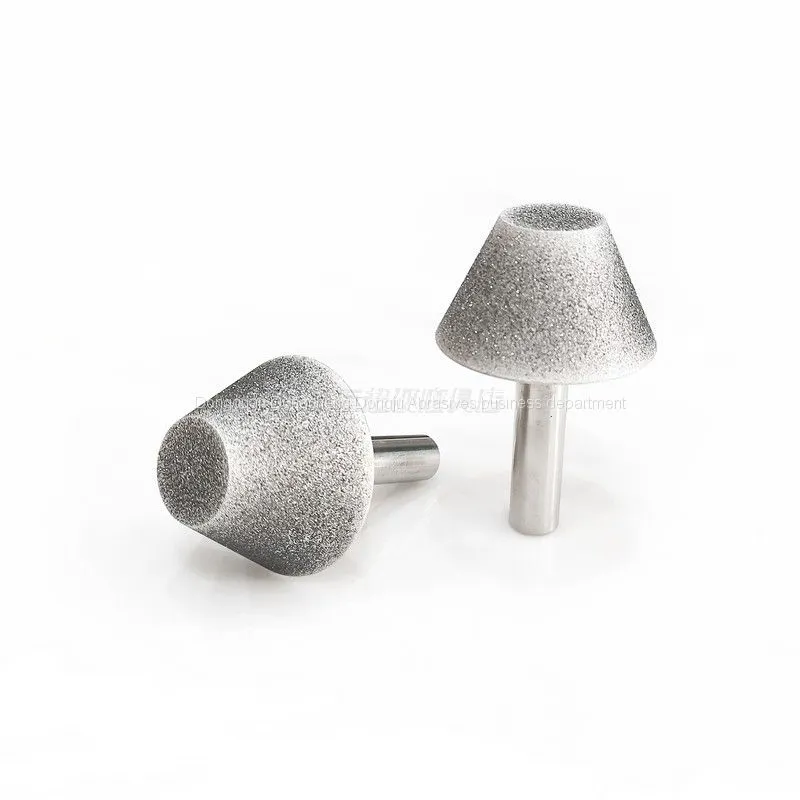

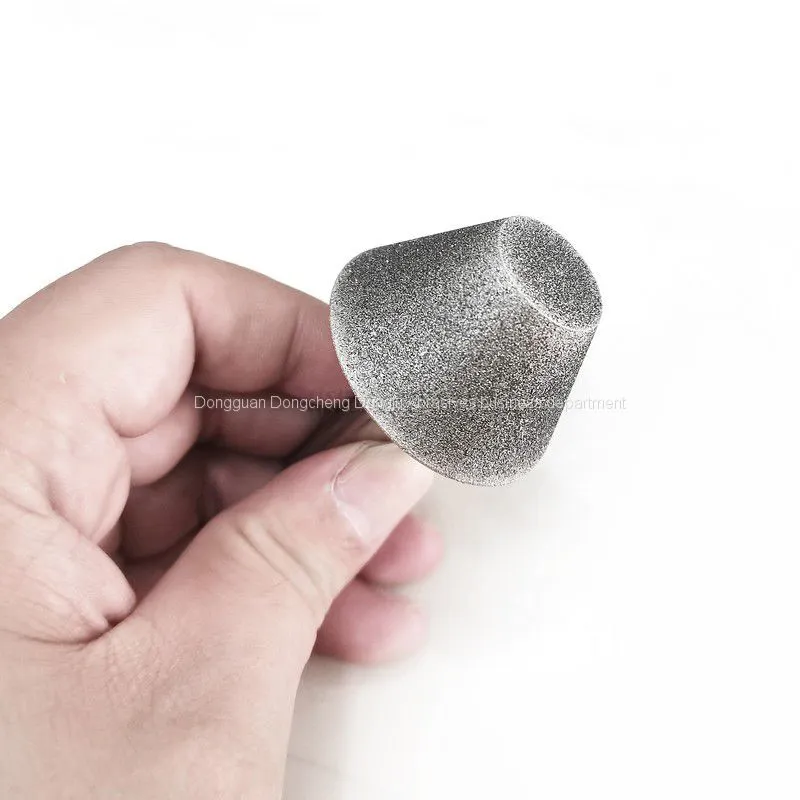

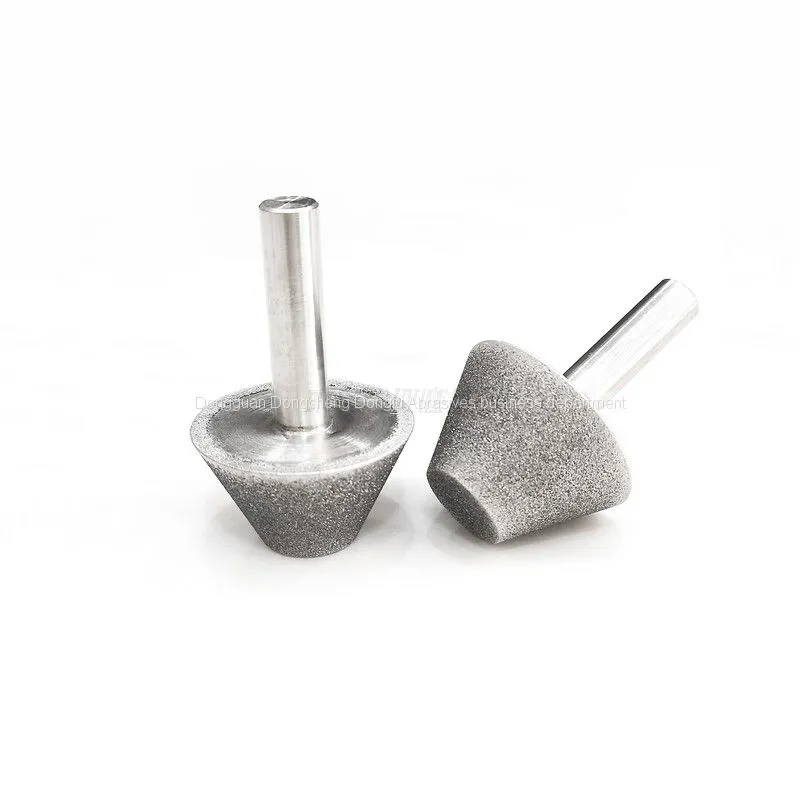

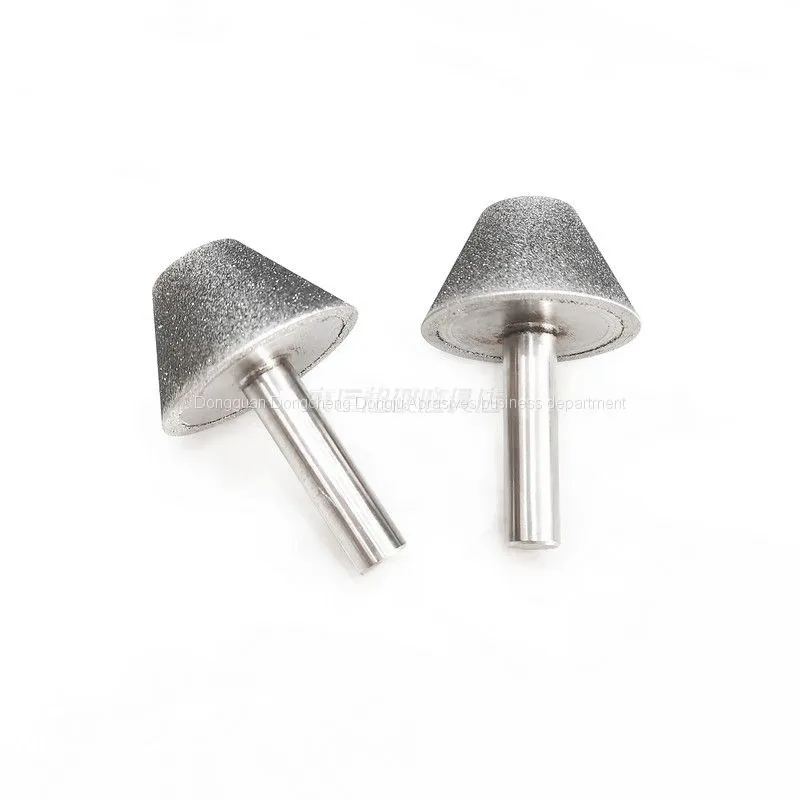

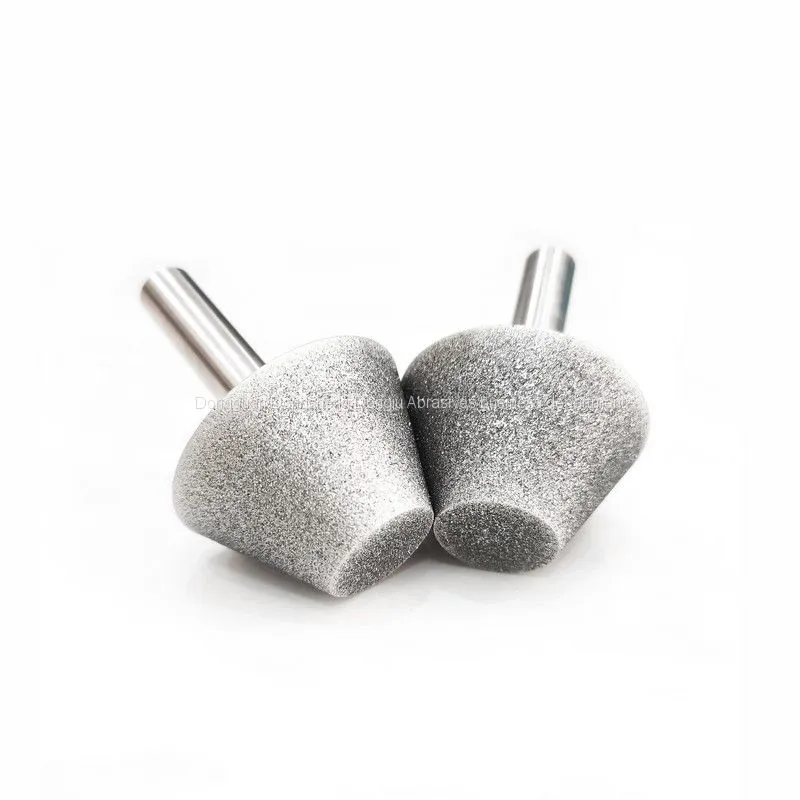

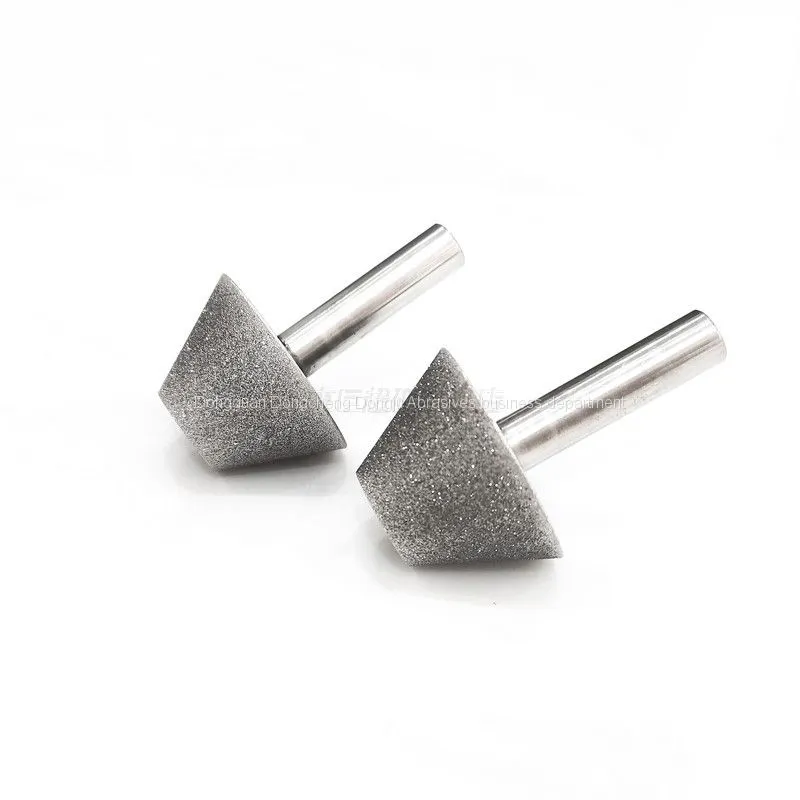

Name: Trapezoidal diamond grinding head

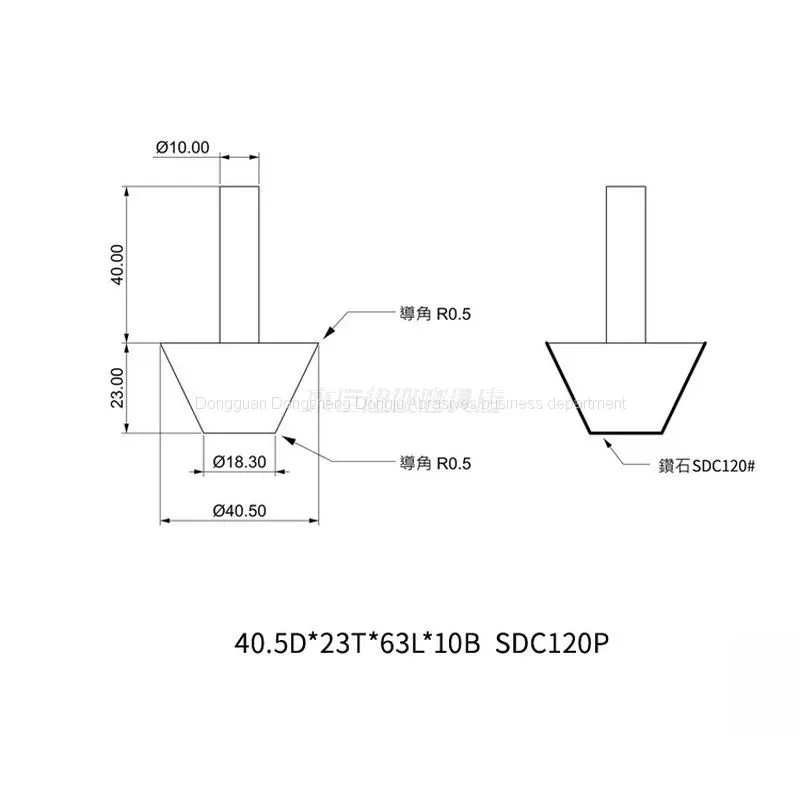

Specification: 40.5D * 23T * 63L * 10B
Model: Electroplating binder
Material: Diamond
Particle size: 120#
Category: truncated cone grinding head
Small head diameter: 18.3mm
Large head diameter: 40.5mm
Grinding head length: 23mm
Length: 63mm
Shank diameter: 10mm
Weight: 500g
Customization: Yes
Imported or not: No
Origin: Dongguan
Functional use: Ladder shaped alumina ceramic hole grinding processing fixture
Scope of application: Industrial ceramics such as alumina, zirconia, silicon nitride, etc. are mainly installed on grinding machines to perform internal and external grinding on workpieces. Grinding can be divided into rough grinding and fine grinding during processing.
