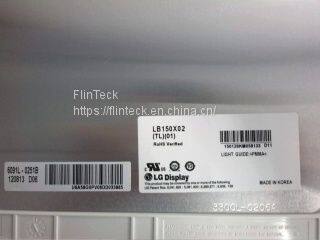

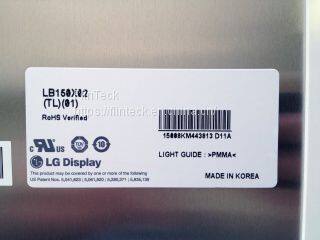

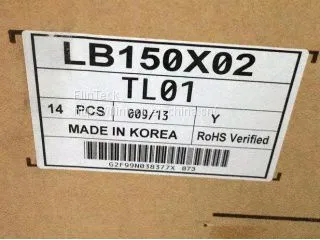

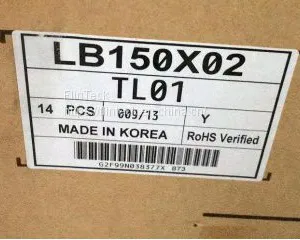

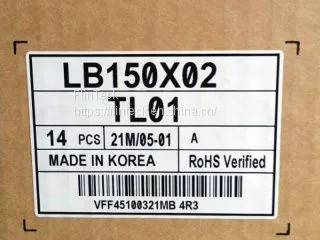

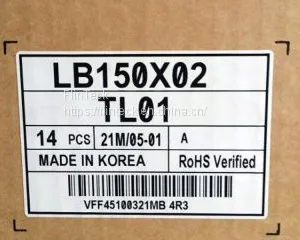

LB150X02-TL01 LG 15.0 Inches

Panel brand LG.Philips LCD

Panel model LB150X02-TL01

Panel size 15.0 inches

Panel type a-Si TFT-LCD, LCD module

The resolution is 1024(RGB)×768, XGA, 85PPI.

Pixel layout RGB vertical bar

Display area is 304.128 (w) × 228.096 (h) mm.

The external dimension is 326.5 (w) × 253.5 (h) mm.

Visible area is 307.4 (w) × 231.3 (h) mm.

Surface treatment fog surface, Hard coating (3H)

Panel brightness 300 cd/m² (Typ.)

Contrast ratio 800:1 (Typ.) (TM)

Visual angle 75/75/70/75 (Typ.)(CR≥10)

Working mode TN, normally white display, transmissive

Reaction time is 2/6 (typ.) (tr/TD) ms.

Display color 16.7M, 60% NTSC

Light source type 2 pcs CCFL, 50K hours, excluding driving.

Touch screen with working frequency of 60Hz has no touch.

Panel weight 1.00Kgs (Typ.) Panel application

Signal interface LVDS (1 ch, 8-bit), 20 pins, terminal

The screen driving voltage is 3.3V (Typ.). Working environment: 0 ~ 50 °C; Storage:-20 ~ 60 c
