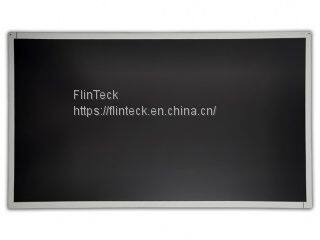

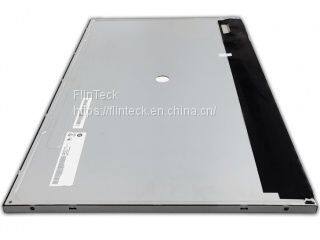

G215HAN01.2 AUO 21.5 Inches Panel Type A-Si TFT-LCD

Panel brand AUO (AUO)

Panel model G215HAN01.2

Panel size 21.5 inches Panel type a-Si TFT-LCD, LCD module

The resolution is 1920 (RGB) × 1080, FHD, and the pixel layout of 102 PPI is RGB vertical stripes.

The display area is 476.064 (w) × 267.786 (h) mm.

The external dimension is 497.6 (w) × 292.2 (h) × 11 (d) mm.

The visible size is 479.8 (w) × 271.3 (h) mm.

Surface treatment fog surface, Hard coating (3H)

Brightness (CD/m) 350 (typ.)

Contrast ratio 1000: 1 (Typ.) [transmission]

Optical mode AHVA, normally black display, transmissive

Viewing angle 89/89/89/89 (Typ.)(CR≥10)

Response speed 12/10 (Typ.)(Tr/Td) ms

Color quantity 16.7M, 72% NTSC

Backlight type 12S4P WLED, 50K hours, no drive.

Screen weight of 1.74Kgs (Typ.) is suitable for

Refresh frequency 60Hz Touch function no touch.

Signal system LVDS (2 ch, 8-bit), terminal, 30 pins

Supply voltage is 5.0V (Typ.).

Storage temperature:-20 ~ 60 C.

Working temperature: 0 ~ 60 C.
