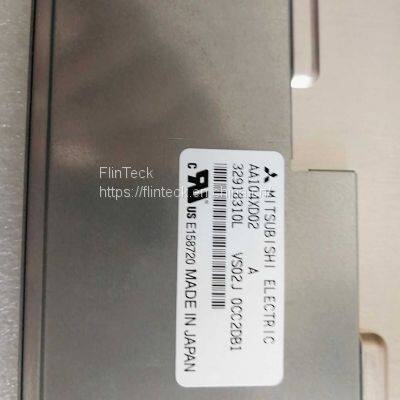

AA104XD02 Mitsubishi 10.4 Inch LCD Screen

Brand Mitsubishi

Model name AA104XD02 1 compatible model

Screen size 10.4 "

Screen type LCD module, a-Si TFT-LCD

The resolution is 1024(RGB)×768 [XGA] 123PPI.

Pixel configuration RGB vertical stripes

The display size is 210.4 × 157.8 mm (H×V).

The external dimension is 230 × 180.2 × 11 mm (H×V×D).

The visual size is 215.4 × 161.8 mm (H×V).

Surface treatment fog surface, Hard coating (3H)

Brightness (CD/m) 600 (typ.)

Contrast ratio 700: 1 (Typ.) [transmission]

Angle 6 o'clock

Optical mode TN, normally white display, transmissive

Viewing angle 80/80/65/65 (Typ.)(CR≥10)

Response speed 4/12 (Typ.)(Tr/Td) ms

Color quantity 262K/16.7M, 40% NTSC.

Backlight type 2 strings WLED, 100K hours, no drive.

Screen weight 520g (Typ.) is suitable for

Refresh frequency 60Hz Touch function no touch.

Signal system LVDS (1 ch, 6/8-bit), terminal, 20 pins

Supply voltage is 3.3V (Typ.).

Rated storage temperature:-30 ~ 80 C and working temperature:-30 ~ 80 C.
