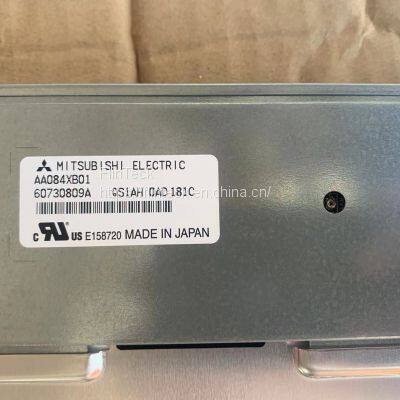

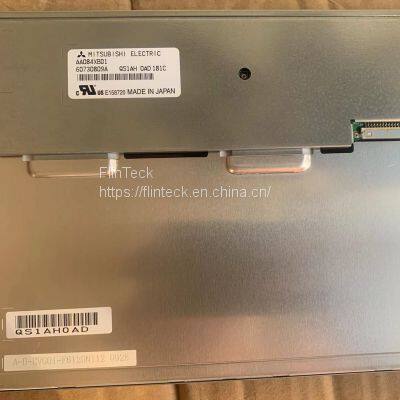

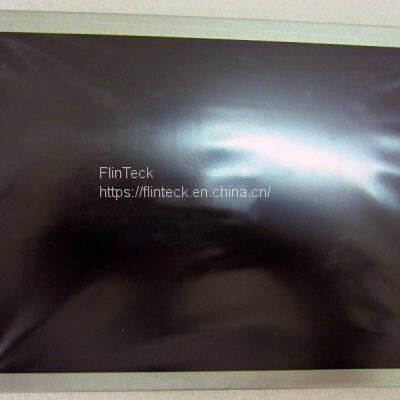

AA084XB01 Mitsubishi 8.4 Inch LCD Screen Resolution 1024x768

Manufacturer Mitsubishi

Model AA084XB01 1 compatible model

Diagonal dimension 8.4 inch

Type a-Si TFT-LCD, liquid crystal module

The resolution is 1024(RGB)×768 XGA 152PPI.

Pixel arrangement RGB vertical strip

The display area is 170.496 (horizontal) ×127.872 (vertical) mm.

The external dimension is 199.5 (horizontal) ×149 (vertical) mm.

The opening area is 174.9 (horizontal) ×132.2 (vertical) mm.

Surface treatment fog surface, Hard coating (3H)

Display brightness 500 cd/m² (Typ.)

Contrast ratio 600:1 (Typ.) (transmission)

Recommended viewing angle 6 o'clock

Response time 4/12(Typ.)(Tr/Td) ms

Viewing angle 80/80/60/80 (Typ.)(CR≥10)

Display mode TN, normally white display, transmissive

Support color 262K/16.7M, 40% NTSC.

Type of light source WLED [2 strings], 60K hours, without driving.

Application product with weight of 370g (Typ.)

Frame frequency is 60Hz.

Touch technology without touch

Interface type 20 pins LVDS (1 ch, 6/8-bit), terminal

Voltage supply 3.3V (Typ.) application environment

Working temperature:-30 ~ 80 C; Storage temperature:-30 ~ 80 C.
