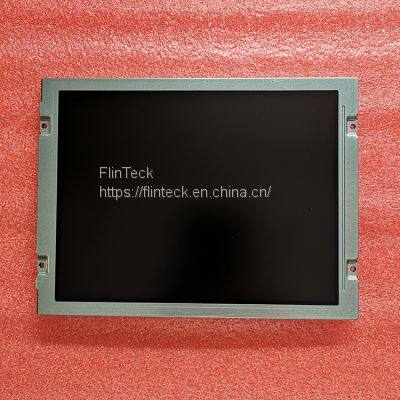

AA084SB01 Mitsubishi 8.4 inch LCD screen

Mitsubishi 8.4 inch LCD screen

Brand Mitsubishi

Model name AA084SB01 1 compatible model

Screen size 8.4 "

Screen type LCD module, a-Si TFT-LCD

The resolution is 800(RGB)×600 [SVGA] 119PPI.

Pixel configuration RGB vertical stripes

The display size is 170.4 × 127.8 mm (H×V).

The external dimension is 199.5 × 149 × 12 mm (H×V×D).

The visual size is 174.9 × 132.2 mm (H×V).

Surface treatment fog surface, Hard coating (3H)

Brightness (CD/m) 600 (typ.)

Contrast ratio 600: 1 (Typ.) [transmission]

Optical mode TN, normally white display, transmissive

Viewing angle 80/80/80/60 (Typ.)(CR≥10)

Response speed 4/12 (Typ.)(Tr/Td) ms

Color quantity 262K/16.7M, 40% NTSC.

Backlight type 2 strings WLED, 100K hours, no drive.

Screen weight 365g (Typ.) is suitable for

The refresh frequency is 60Hz.

Touch function no touch

Signal system LVDS (1 ch, 6/8-bit), terminal, 20 pins

Supply voltage is 3.3V (Typ.).

Rated storage temperature:-30 ~ 80 C and working temperature:-30 ~ 80 C.
