Home > Products > IP Code Test Probe > CSA C22.2 NO.113 Clause 5.2.6.1 and 5.2.6.2 Fans and Ventilators Uninsulated Live Part Test Probe
CSA C22.2 NO.113 Clause 5.2.6.1 and 5.2.6.2 Fans and Ventilators Uninsulated Live Part Test Probe
US$ 170 - 180
/ Piece
1 Piece(Min. Order)
- Shenzhen
- T/T
- 2 days
You May Like
-
IEC60335-2-24 Figure 102 Cooling System Components Scratching Tool
-
IEC60601-1Medical Electrical Equipment Standard Test Finger，Test Rod
-
IEC61010 Electrical Equipment Rigid Test Finger, 12mm Test Rod, 500g Steel Sphere
-
IEC60335 Household and Similar Electrical Appliances Live Parts Test Probe
-
IEC60065 Audio, Video and Similar Electronic Apparatus Safety Test Probe
-
UL749 Figure4 SB0504A Knife Probe for Dishwasher Uninsulated Test
Product Details
| Brand Name | JUSDATEST | Place of Origin | China | |
| Model Number | JSD-CSA3 |
Product Description
CSA C22.2 NO.113 Clause 5.2.6.1 and 5.2.6.2 Fans and Ventilators uninsulated live part test probe

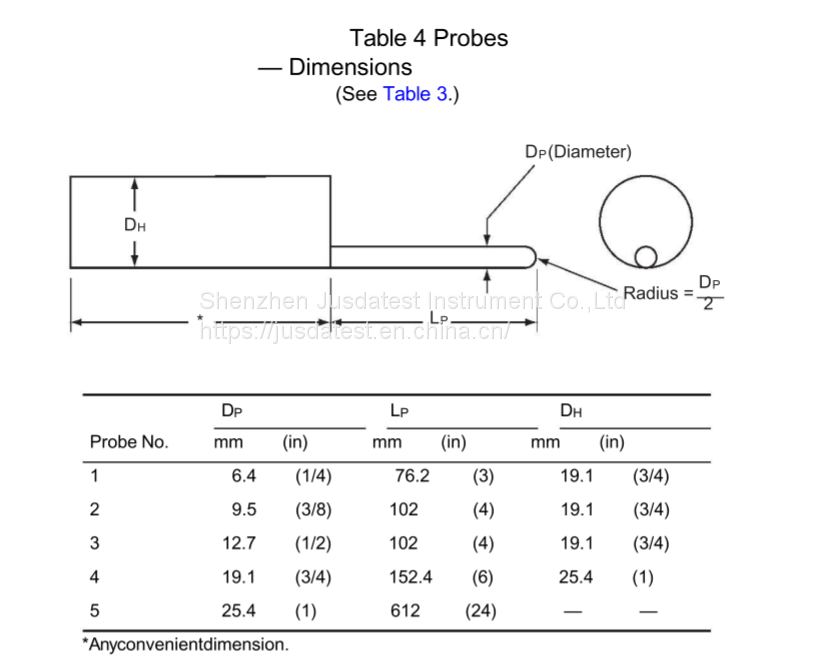

To reduce the risk of injury to persons due to contact with uninsulated live parts, openings in enclosures, including ventilation openings, shall be designed, located, or baffled to prevent the probe specified in Table 3 from touching such live parts. Compliance shall be determined with doors, covers, and guards shall be removed. The probe shall be applied with a force of 4.45N and in any possible angled to any possible position before, during, or after insertion through the opening.
Note: Film coated wire is considered to be an uninsulated live part.
