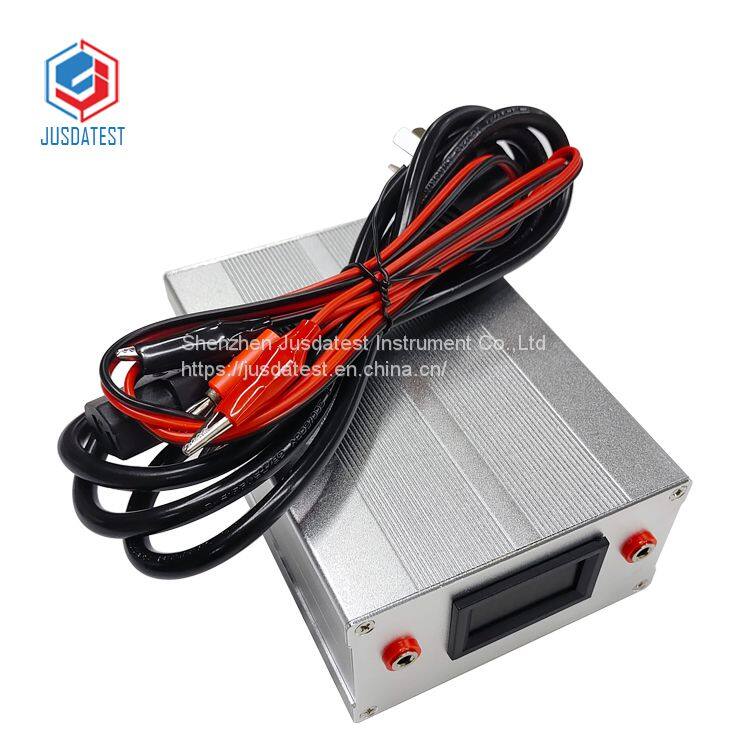

IEC60065/IEC60335 40-45V Electrical Contact Indicator used with Access Probe
1.Introduction
For indication of electrical contatct, a voltage of not less than 40V and not more than 50V in series with a suitable lamp can be used.Provides a 40~45V power supply for simulating fingers, simulating tools and wires in IP protection testing.
With the continuity signaler and a connected test probe according to IEC/EN 61032 、IEC/EN 60065 the accessibility of dangerous parts can be determined.
2.Application
The test probe is pressed against the dangerous parts of the test object to test the contact. Access is indicated by the indicator light and the buzzer. It is recommended to test the function of the signal transmitter and the electrical connections by consciously contacting or short-circuiting the access probe with the parts to be tested before each test.
