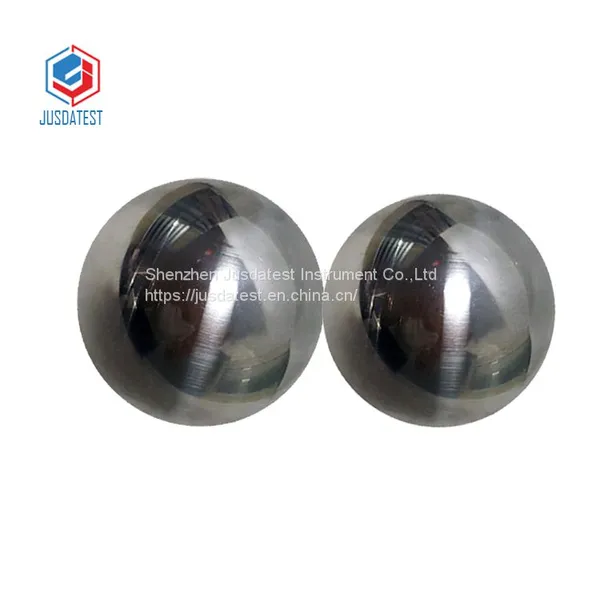

Help CenterIEC/EN 60950 and IEC/EN 61010 Diameter 50 mm Weight 500g Impact Test Steel Ball
Related Products
-
UL1026/1278 Diameter 50.8mm Mass 535g Impact Test Steel Sphere With RingUS$ 55 - 60MOQ: 1 Piece -
IEC60068-2-75 Six Energies 0.14J-1.0J Stainless Steel Shell Adjustable Spring Impact HammerUS$ 620 - 660MOQ: 1 Piece
-
IEC60068-2-75 Single Energy 0.14J Impact Test Spring Hammer Apparatus IK01 CodeUS$ 180 - 200MOQ: 1 Piece
-
IEC60068-2-75 IK02 Single Impact Force 0.2J Spring Impact HammerUS$ 180 - 200MOQ: 1 Piece
-
IEC60068-2-75 With a 10N Release Force 0.35J Spring Impact HammerUS$ 180 - 200MOQ: 1 Piece

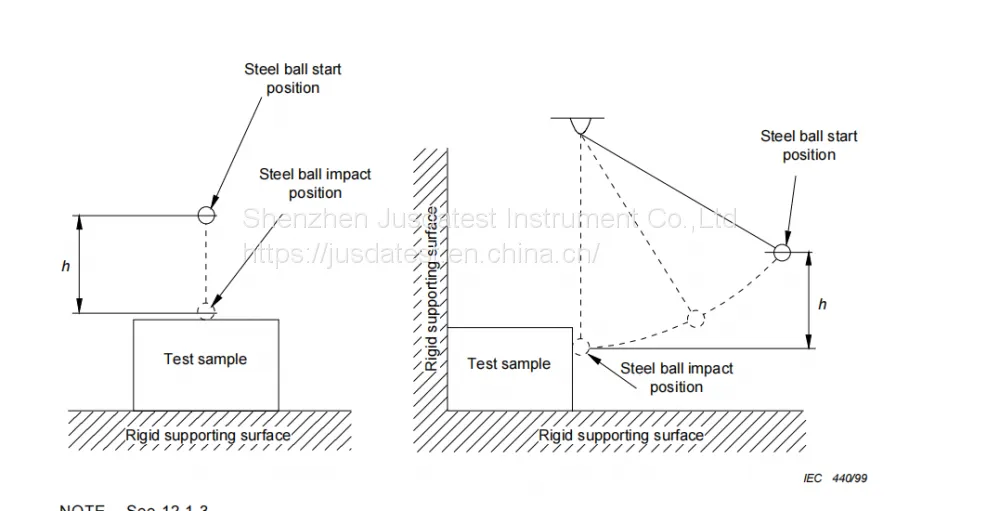

Steel ball impact test is mainly used for mechanical strength test of equipment casing. The test apparatus enclosure shall be in the structure can ensure the standard within the scope of the risk cannot be generated in the operation can be expected to bear. It is suitable for the appliances which the surface of casing if damaged will hit the dangerous parts. It is also suitable for glass, PVC, mechanical strength test of ceramic material.
The test adopts imported ball bearing steel, after heat treatment, grinding, fine grinding and other processing process, high hardness, impact resistance.
weight |
diameter |
tolerance |
material |
hardness |
remark |
227g |
38mm |
±5% |
G20CrNi2Mo |
HRC68-75 |
Can be with ring |
500g |
50mm |
±5% |
G20CrNi2Mo |
HRC68-75 |
Can be with ring |
535g |
50.8mm |
±5% |
G20CrNi2Mo |
HRC68-75 |
Can be with ring |
1040g |
63mm |
±5% |
G20CrNi2Mo |
HRC68-75 |
Can be with ring |
Energy |
0.14J |
0.20J |
0.35J |
0.50J |
0.70J |
1.00J |
|
height |
Steel ball 227g |
63mm |
90mm |
157mm |
225mm |
315mm |
450mm |
Steel ball 500g |
28mm |
41mm |
71mm |
102mm |
143mm |
204mm |
|
Steel ball 535g |
27mm |
38mm |
68mm |
95mm |
137mm |
190mm |
|
Steel ball1040g |
14mm |
20mm |
34mm |
49mm |
69mm |
98mm |
