IEC60695-2-10 Glow Wire Apparatus Replacement Glow Wire Loop Diameter 1mm
US$ 55 - 65
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
JUSDATEST
Place of Origin:
China
Model Number:
JSD-U
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
2 days
Related Products
-
7006-27B-1 Go Gauges for E40 and E27 Caps on Finished Lamps According to IEC60061US$ 325 - 350MOQ: 1 Piece -
IEC60061 Not Go Gauges for E27 Caps on Finished Lamps 7006-28A-1US$ 250 - 280MOQ: 1 Piece
-
7006-50-1 Gauge for Finished Lamps Fitted With E27 Caps for Testing Contact MakingUS$ 325 - 360MOQ: 1 Piece
-
7006-51A-2 Gauge for E27 Caps on Finished Lamps for Testing Port. Against Acc. Contact During InsertionUS$ 325 - 360MOQ: 1 Piece
-
7006-51-2 Gauge for Caps on Finished Lamps for Testing Port Against Accidental Contact E27 51*39mmUS$ 325 - 360MOQ: 1 Piece
Brand Name
JUSDATEST
Place of Origin
China
Model Number
JSD-U

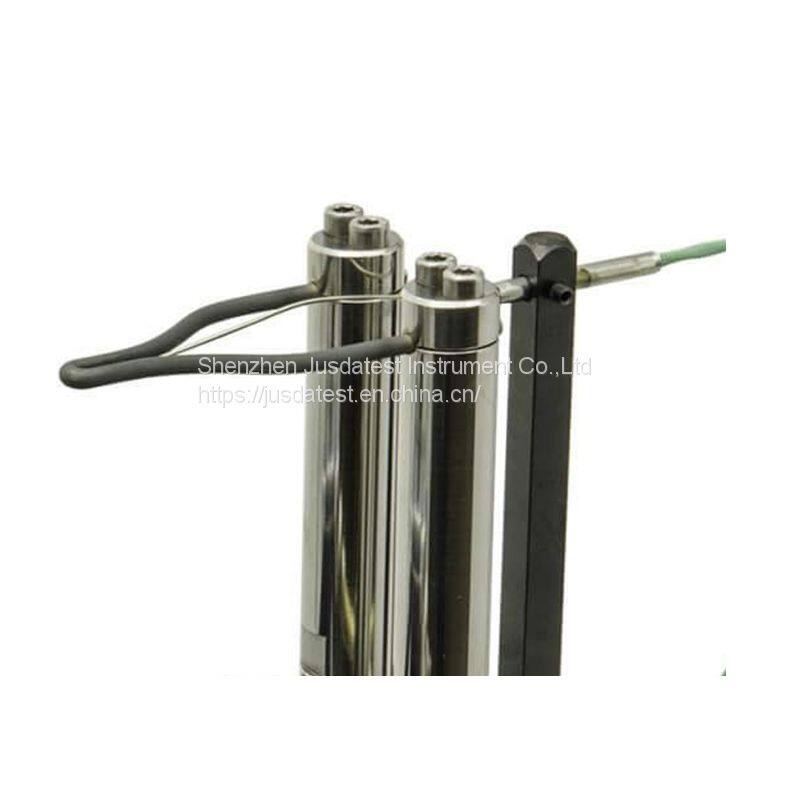

IEC60695-2-10 Glow Wire Apparatus replacement Glow Wire Loop
Specification:
1. Material: Nickel/Chromium(80/20) Alloy
2. Diameter: 4mm (Tolerance 0.04mm)
3. Length: 80mm
4. Thermocouple hole diameter : 1.0mm

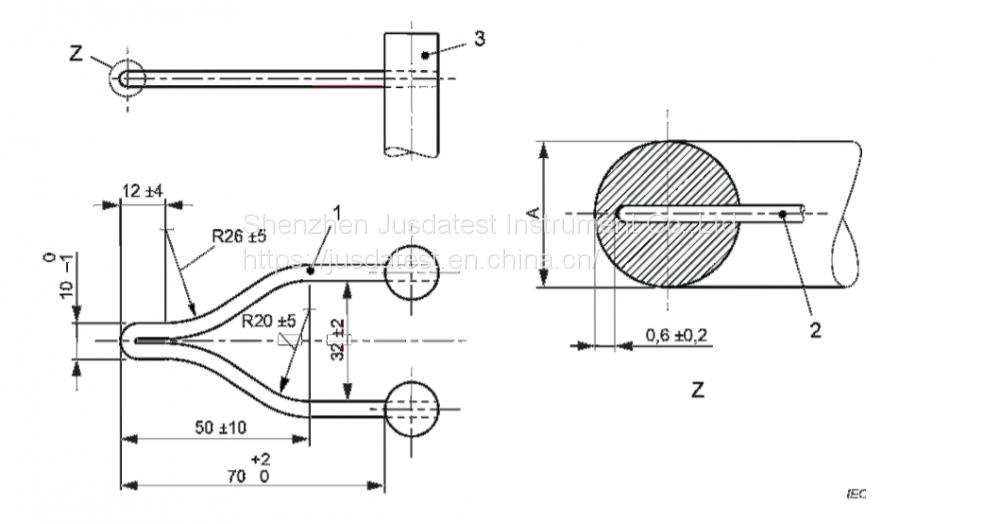

5. Standard: IEC60695-2-10 Figure 1
A new glow wire shall be annealed for a total of at least 10h by being subjected to a current of at least 120A before being used for a test run. The total annealing time may be achieved cumulatively. To avoid damage, the thermocouple shall not be installed during annealing. At the end of annealing, the depth of the thermocouple pocket hole shall be verified.
when forming the glow wire,ensure that fine cracking at the tip is avoided
