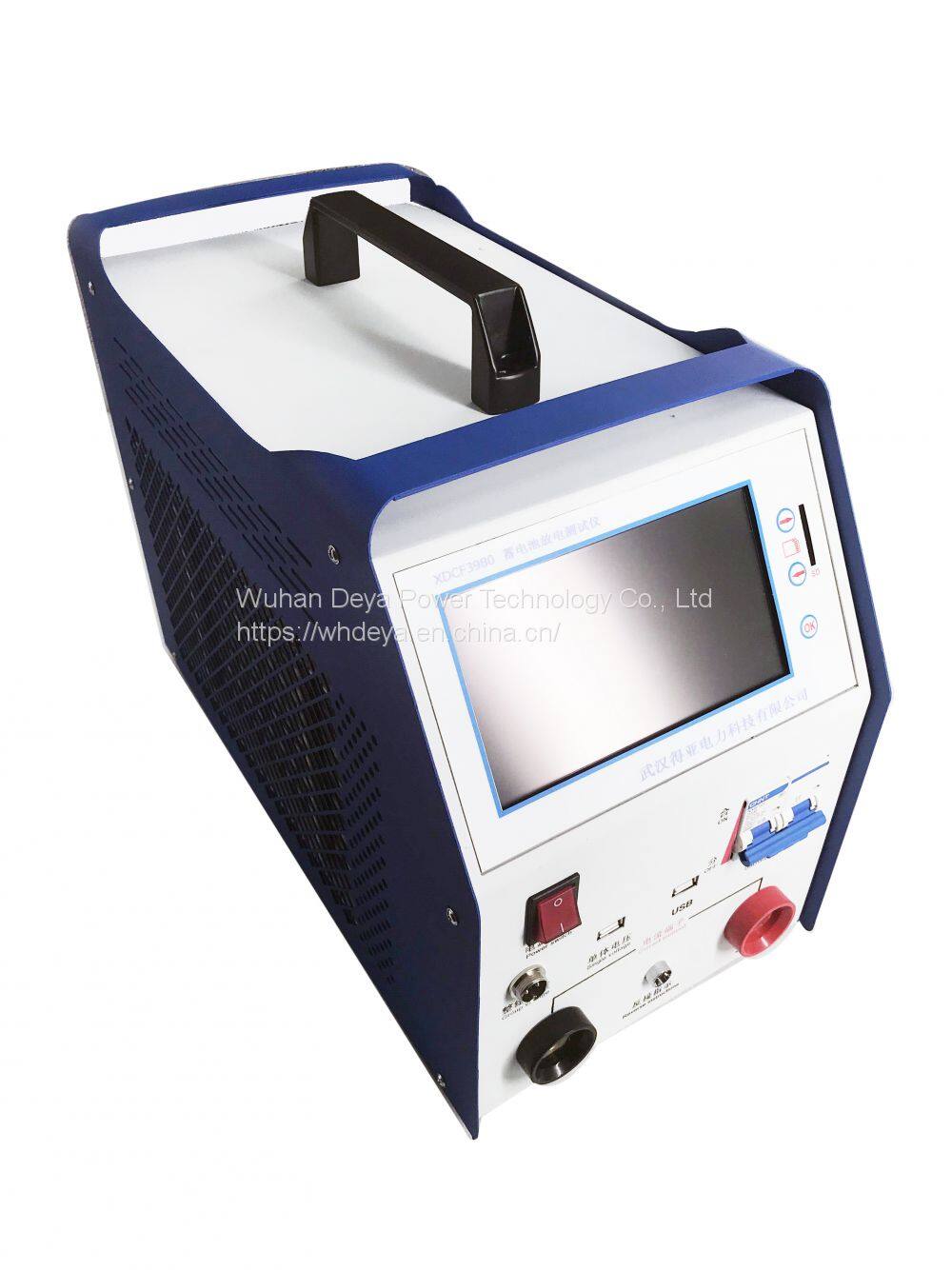

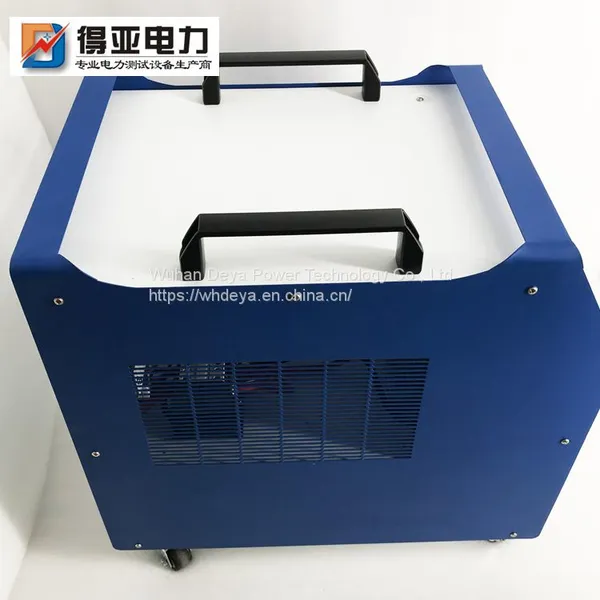

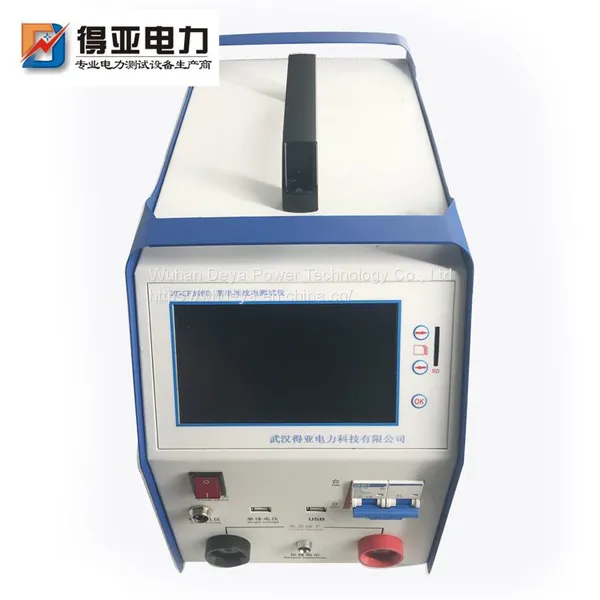

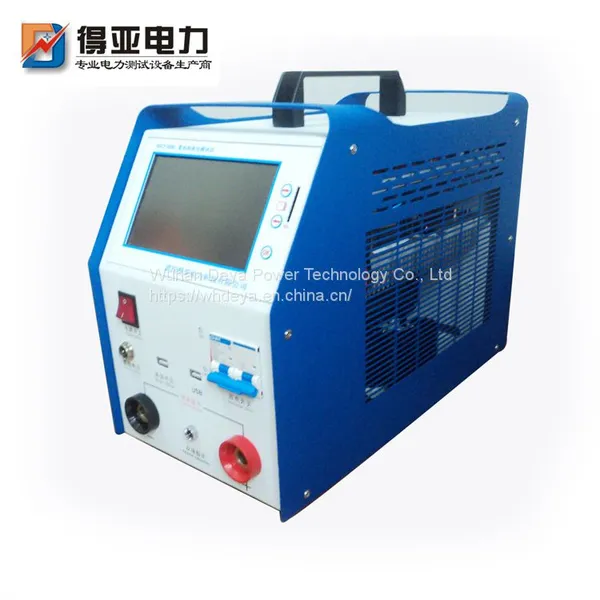

Battery discharge tester DYXD-F30B

1.1 General

This instrument is designed for the series test of the whole set of 12V-600V batteries. Different specifications and models have different requirements for the whole set. The specific requirements shall be subject to the instrument. A special instrument for testing the lead-acid battery pack with a single battery voltage of 1.2V-12V. The instrument adopts the principle of the current advanced testing technology and has made a series of breakthroughs in the research and application of new technologies, new devices, new materials and new processes. It is a professional testing instrument designed according to the requirements of the relevant national testing and maintenance regulations to test the performance of batteries. The instrument has large discharge power, small volume, light weight, complete functions of the upper computer data management software, which greatly reduces the workload of daily battery testing and maintenance. Provide comprehensive and scientific detection means for battery maintenance.

1.2 Main functional characteristics

 The instrument is operated by touch screen, and the interface can be operated directly by using a touch pen or finger.

 The data storage methods include internal storage and external SD card storage, which can be selected by yourself.

 It has overvoltage, overcurrent, overheating and other protection functions.

 Online monitoring function: real-time monitoring of the battery pack and single battery when the battery pack is in the online discharge, equalizing charge, floating charge and other states; Including the whole group voltage, single battery voltage, whole group charge and discharge current, whole group charge and discharge capacity, monitoring time, etc;

 Discharge test function: after the battery pack is disconnected from the system, use the intelligent dummy load to conduct constant current or constant power discharge, or use the intelligent dummy load to conduct constant current discharge in parallel with the user equipment. Set the parameters such as "discharge current", "discharge time", "discharge capacity", "whole group termination protection voltage", "single unit termination protection voltage", the tester will automatically perform the discharge function, and display the data such as discharge current, battery discharged capacity, whole group voltage, single battery voltage, discharge time in real time; The discharge parameters can be modified during the discharge test. The discharge test can be stopped when the battery pack reaches the set value of the termination discharge voltage, the set value of the termination discharge capacity, the set value of the termination discharge time, and the voltage of any single battery is lower than the set value of the termination single voltage or the termination operation is conducted manually. The individual voltage termination condition can also be set to alarm only and not terminate.

 Capacity quick measurement function: (optional) after the battery pack is disconnected from the system, the intelligent dummy load is used for discharging, and the actual capacity, internal resistance, performance status (normal, backward, degraded), etc. of each battery in the battery pack can be measured in only 3 to 20 minutes;

 In the process of testing, when the whole group or single battery is abnormal and the tester is abnormal, the tester will automatically terminate the test to protect the battery.

 The tester adopts the integrated design of the monitoring part and the power part, and the power part adopts new high efficiency devices. Humanized operation interface, simple operation, clear process, and simplified Chinese prompt for each step of operation.

 High brightness color screen LCD, with clear and beautiful display effect.

 The upper computer data management software has powerful functions and friendly interfaces, providing data management, printing, analysis, report statistics, automatic generation of test reports and other functions.

1.3 Technical indicators:
