Product introduction

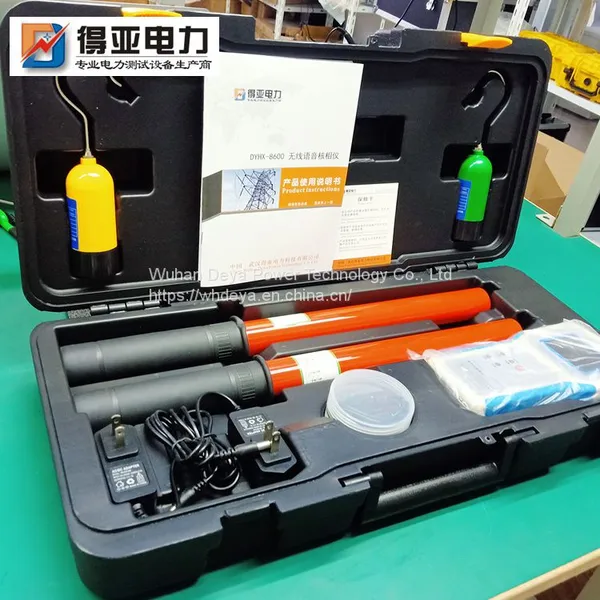

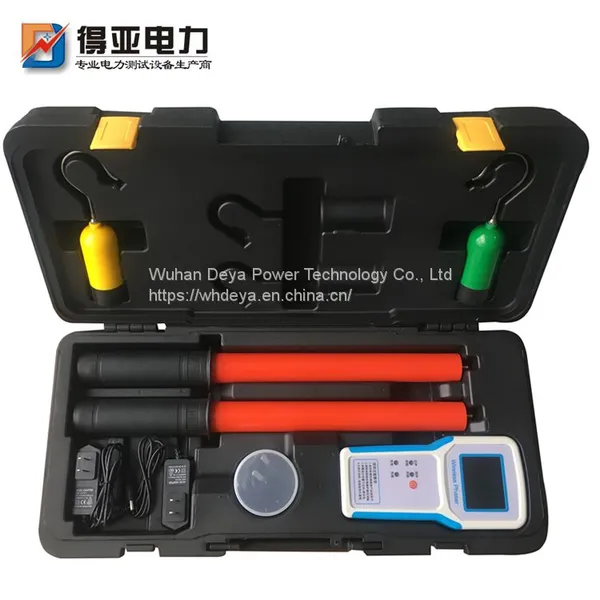

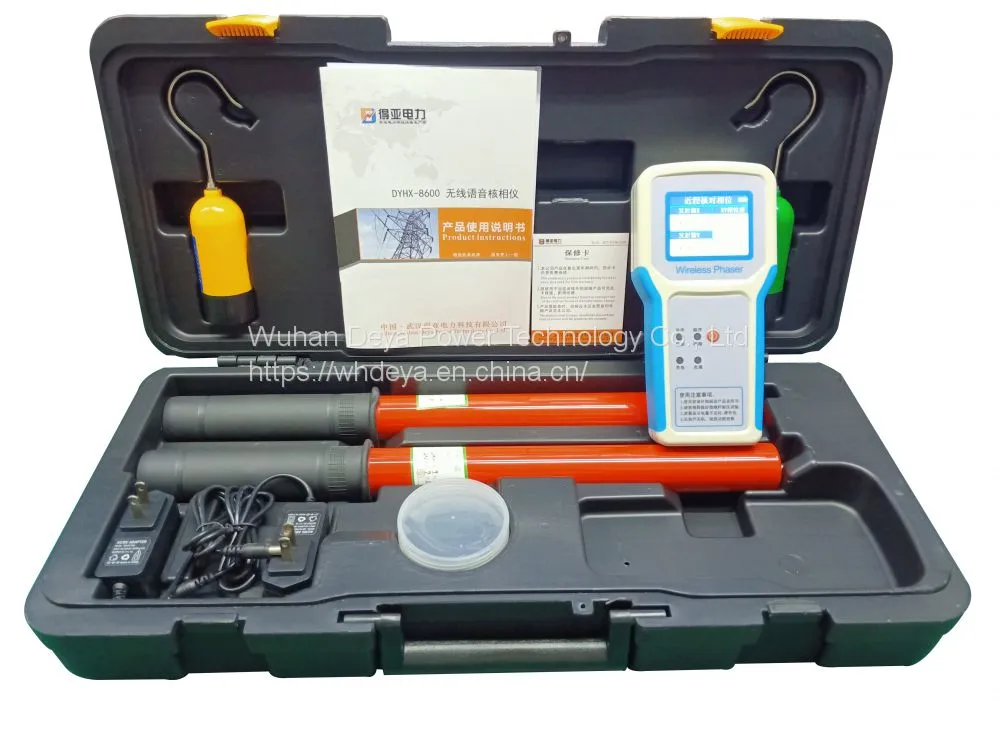

DYHX-8600 wireless high-voltage phase detector (hereinafter referred to as "the instrument") is used for grid connection of two high-voltage lines or phase verification of looped network. The instrument is applicable to 5V~220kV AC transmission lines and the nuclear phase of the secondary electrified display, and has the function of high voltage electricity testing.
The instrument adopts wireless transmission technology, which is safe, reliable and easy to use. It overcomes many shortcomings of the wired phase detector. In addition, the instrument can upgrade the phase sequence detection and remote phase verification functions.
technical parameter
1. Phase difference accuracy: error ≤ 5 °.
2. Frequency accuracy: ± 0.1HZ.
3. The measurement range of voltage span is 5V~220kV.

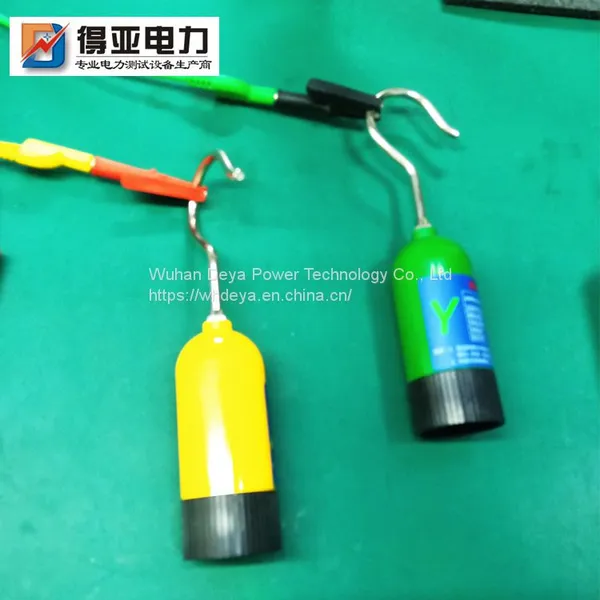

4. The maximum transmission sight distance of the transmitter and the receiving host is about 100 meters.
5. Real person voice prompts the measurement results and operation steps.

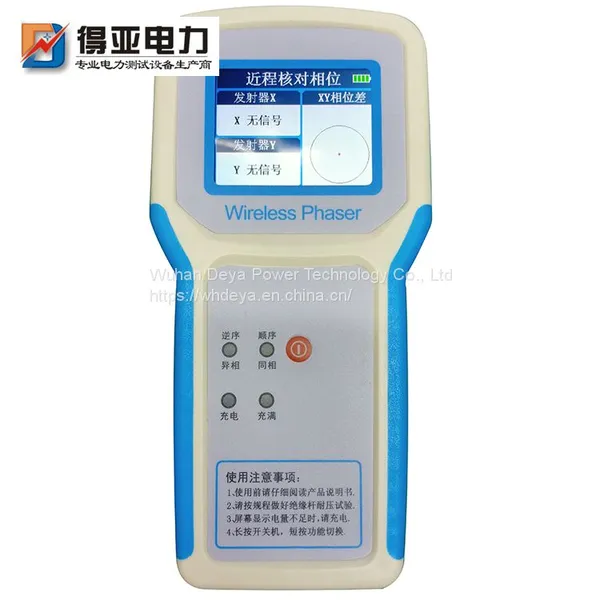

6. The 3.2 inch color screen displays the phase difference, frequency, vector diagram and the same and different phase results of the two lines at the same time.
7. Automatic shutdown without operation for one hour.

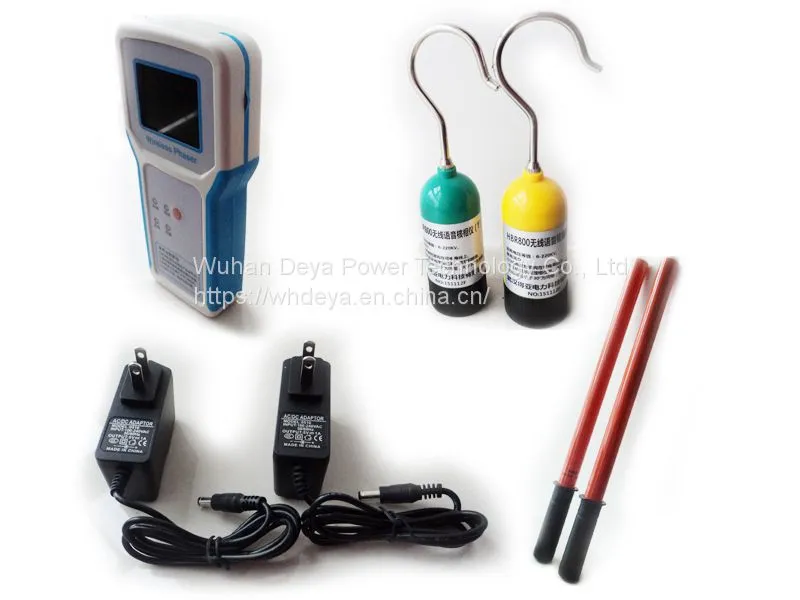

8. Both transmitter and receiver host are equipped with rechargeable lithium battery and 5V charger.
9. The host is equipped with 18650 lithium battery with a battery capacity of 2500mAH. The transmitter has a built-in 10440 lithium battery with a battery capacity of 450mAH.
10. Leakage current is less than 10uA during high voltage measurement.
11. The working power consumption of transmitter is less than 0.1W, and that of receiving host is less than 0.3W.
12. Working environment: - 35 ºC ---+45 ºC, humidity ≤ 95% RH.
13. Operating weight: about 3.6KG.
14. Package size: 56cm long * 26cm wide * 13cm high.
