Introduction

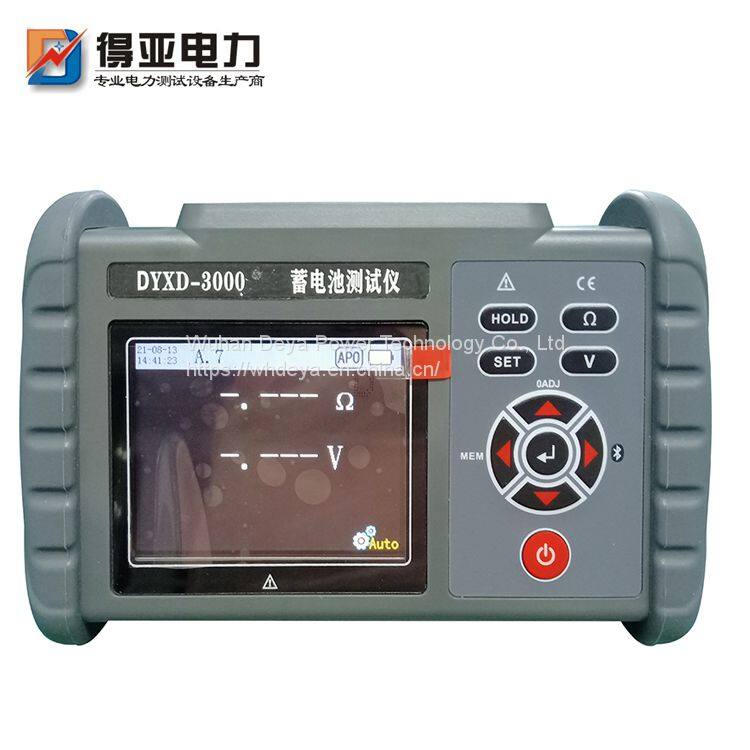

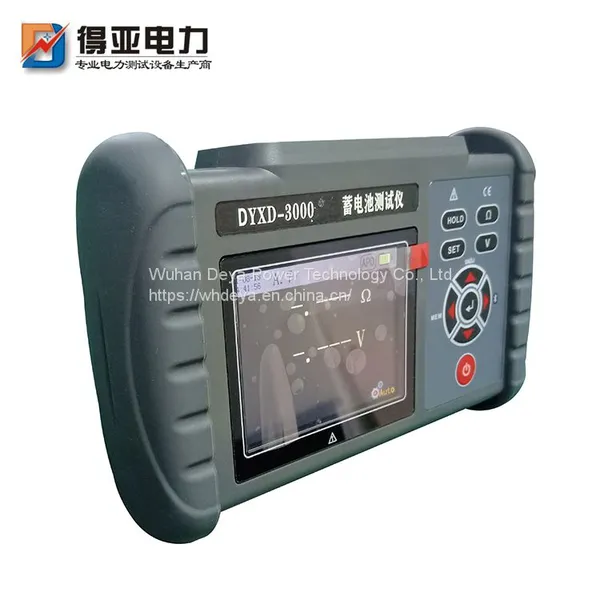

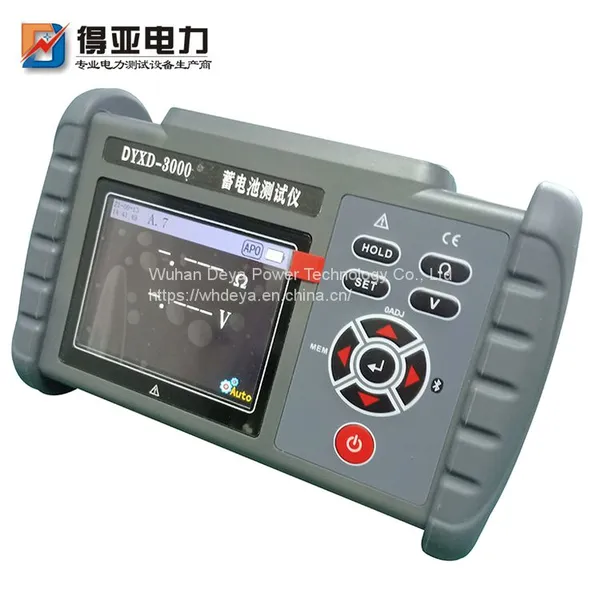

DYXD-3000 universal rechargeable battery internal resistance tester is referred to as: battery internal resistance tester. It is a measuring instrument used to measure the internal resistance, voltage and temperature of rechargeable batteries such as lead batteries and lithium batteries, so as to judge the health status of batteries. It can also be used as an instrument for measuring ESR parameters of electrolytic capacitors (for reference only). The instrument uses the AC 4-terminal test method to measure the internal resistance of the battery, which can not be affected by the contact resistance between the test line, terminal and battery electrode. At the same time, it also has data storage, data query, alarm, automatic shutdown and other functions. The whole machine is high-grade and beautiful, with wide range, high resolution, convenient operation, convenient carrying, accurate, reliable, stable performance and strong anti-interference ability. It is an indispensable instrument for battery production, battery installation, equipment production, equipment maintenance and other scenarios.
The universal rechargeable battery internal resistance tester is controlled by a microprocessor. The internal 16 bit ADC can accurately detect the battery internal resistance, voltage and temperature. Its characteristic is to measure without stopping the UPS system. Using AC low resistance measurement and noise reduction technology, it does not need to stop the normal operation of the equipment under test. The measurement is carried out in the running state, which greatly shortens the test time. At the same time, it has the functions of data storage, histogram display, data upload to computers, mobile tablets and other intelligent devices connected by Bluetooth for wireless measurement, data reference and so on.
technical specifications
| Function | Battery internal resistance measurement, battery voltage measurement, temperature measurement |
| Accuracy guarantee temperature and humidity | 23 ºC± 5 ºC, below 75% rh |
| Power Supply | DC 3.7V lithium battery |
| Resistance resolution | 1 u Ω |
| Voltage resolution | 1 mV |
| Temperature resolution | 0.1ºC |
| measuring range | Internal resistance measurement:0.000mΩ-3.100 Ω (4-range composition) |
| Voltage measurement:0.000V~±71.00V (2-range composition) | |
| temperature measurement -10.0ºC~60.0ºC(Single range composition) | |
| Maximum input voltage | DC 70V (between+measuring terminal and - measuring terminal), no AC input |
| Measurement method | Internal resistance measurement: 1KHz AC 4-terminal test method, open circuit terminal voltage 3V max Measuring current: 2.0mA~200mA (different measuring currents for different range gears) Temperature measurement: NTC temperature sensor (10K Ω at 26 ºC) A/D conversion mode: successive approximation Display update frequency: 5 times/second |
| response time | 200ms |
| Measuring time | About 2 seconds |
| LCD size | 70.1mm*52.6mm 3.5inch(320 * 240 resolution 16 bit true color screen) |
| Instrument size | 190mm*121mm*51mm |
| USB interface | With USB interface, the stored data can be uploaded to the computer for saving and printing |
| Bluetooth connectivity | have |
| Retention and storage functions | Manual hold and storage, automatic hold and storage |
| Measurement judgment function | The judgment threshold of PASS, WARNING and FAIL can be preset |
| Battery voltage | The battery power is displayed in 5 bars, and the prompt for charging is given when the battery voltage is low |
| Automatic shutdown | There is no operation when the machine is turned on, and it will automatically turn off after about 15 minutes (it can be turned off in the setting) |
| power waste | 300mA MIN / 500mA MAX |
| weight | Instrument: 480g (including battery) |
| Operating temperature and humidity | -10ºC~40ºC; Below 80% RH |
| Storage temperature and humidity | -20ºC~60ºC; Below 70% RH |
| insulation resistance | Above 20M Ω (500V between circuit and shell) |
| Withstand voltage | AC 3700V/RMS(Between circuit and housing) |
| External magnetic field | |
| External electric field | |
| Suitable for safety regulations | IEC 61010 |
