IEC61032 Figure1 Sphere Ø50mm With Handle IP1X Test Probe A
- Shenzhen
- T/T
- 2 days
You May Like
-
IEC60068-2-75 Six Energies 0.14J-1.0J Stainless Steel Shell Adjustable Spring Impact Hammer
-
IEC60068-2-75 Single Energy 0.14J Impact Test Spring Hammer Apparatus IK01 Code
-
IEC60068-2-75 IK02 Single Impact Force 0.2J Spring Impact Hammer
-
IEC60068-2-75 With a 10N Release Force 0.35J Spring Impact Hammer
-
IEC60068-2-75 IK04 Level Stainless Steel Shell 0.5J Spring Impact Hammer
-
Single Energy 0.7J Impact Spring Hammer According to IEC60068-2-75 Standard
Product Details
| Brand Name | JUSDATEST | Place of Origin | China | |
| Model Number | JSD-A |
Product Description
IP1X Probe A /Test Probe A
1. According to : IEC61032:1997 /IEC60529:2001 and UL
2.IP1X Probe A (Test Probe A) is necessary appliance for domestic and similar electrical appliance of against electric shock protection test.

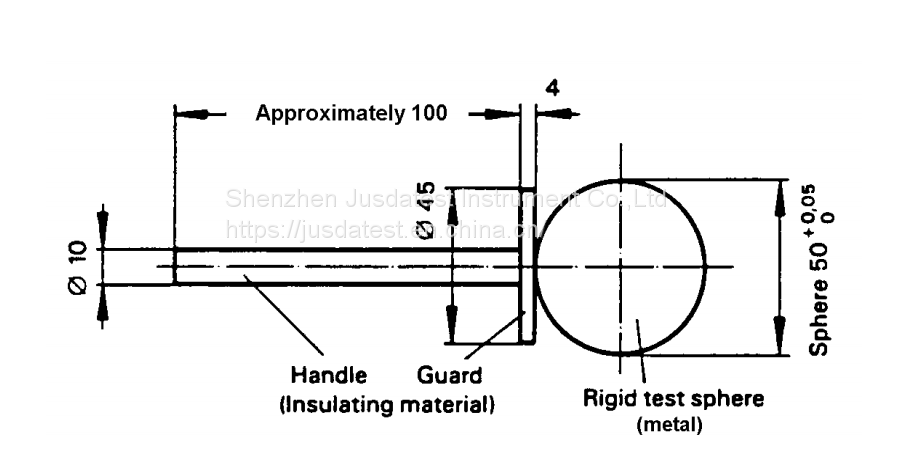

Technical Parameters:
1. Ball Diameter: 50mm
2. Baffle Plate Diameter: 45mm
3.Baffle Plate Thickness:4mm
4. Handle Diameter: 10mm
5. Handle Length :100mm
6.According to IEC61032 figure 1 (the Test probe A), table 6
Application:
1、Sphere can not touch the live parts or the hazardous parts.
2、 In the testing requirements of preventing from approaching to the hazardous parts, the test steel ball without force needs to be used with pull and push dynamometers ,the sphere body needs to exert thrust of 50±5N to the protective covering.
