1.8ton CPD18 Battery Curtis 48v Forklift Electric Motor Electric Forklift Truck for Sale
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
3 Ton Battery Forklift Pallet Truck With 3m Height With Cheap PriceNegotiableMOQ: 1 -
Hot Sale Chinese 3.5ton Battery Forklift Pallet Truck With 3m Height With Cheap PriceNegotiableMOQ: 1
-
Hot Sale Chinese 2ton LPG/GASOLINE Forklift With Cheap PriceNegotiableMOQ: 1
-
Hot Sale Chinese 3.5ton LPG/GASOLINE Forklift With Cheap PriceNegotiableMOQ: 1
-
Heli Small Gas LPG Forklift CPQYD40 With Competitive PriceNegotiableMOQ: 1
Product Description
1.8ton CPD18 battery Curtis 48v forklift electric motor 1.8 ton electric forklift truck
1.8ton electric forklift
1) China top brand battery, 48V/400Ah, 48V/490Ah, water automatic filling system is poptional.
2) Mast optional: 3/4/4.5/5/5.5/6/7m duplex mast, 3.6/4/4.5/5/5.5/6m triplex mast, 3/3.3/3.5/4/m duplex full free mast.
3) Transmission: Automatic/manual;
4) Tire: pneumatic/Solid/non-mark solid;
5) Forks: 1070/1220/1370/1520/1670/1820/1970mm;
6) Attachments: Side shifter, fork positoner, fork sleeve, paper roller clamp, bale clamp, drum clamp, load extender, rotator,
fork clamps, push/pull, etc..
7) Additional: Cabin, heating, fan, air conditioner, high exhaust, paper fold, USB, camera & image, suspension seat, etc.
1.8ton electric forklift
1) China top brand battery, 48V/400Ah, 48V/490Ah, water automatic filling system is poptional.
2) Mast optional: 3/4/4.5/5/5.5/6/7m duplex mast, 3.6/4/4.5/5/5.5/6m triplex mast, 3/3.3/3.5/4/m duplex full free mast.
3) Transmission: Automatic/manual;
4) Tire: pneumatic/Solid/non-mark solid;
5) Forks: 1070/1220/1370/1520/1670/1820/1970mm;
6) Attachments: Side shifter, fork positoner, fork sleeve, paper roller clamp, bale clamp, drum clamp, load extender, rotator,
fork clamps, push/pull, etc..
7) Additional: Cabin, heating, fan, air conditioner, high exhaust, paper fold, USB, camera & image, suspension seat, etc.
Model | CPD18 |
Operation type | Drive in seat |
Load capacity | 1800KG |
Load center | 500mm |
Weight with battery | 3200kg |
Tire Type,Driving wheel/Load wheel | Pneumatic Trie |
Main Information | ||||||
1.1 | Brand | WMTCNC | ||||
1.2 | Model | CPD18 | ||||
1.4 | Operation type | Drive in seat | ||||
1.5 | Load capacity | kg | 1800 | |||
1.6 | Load center | mm | 500 | |||
2.1 | Weight with battery | kg | 3200 | |||
Tire,chassis | ||||||
3.1 | Tire Type,Driving wheel/Load wheel | |||||
Size | ||||||
4.1 | Mast tilt,Forward/backward | α/β（°） | 6/12 | |||
4.2 | Mast height after mast fall | mm | 1995 | |||
4.3 | Free lift height | mm | 140 | |||
4.4 | Standard Mast height | mm | 3000 | |||
4.7 | Overhead guard height | mm | 2100 | |||
4.8 | Overall length | mm | 2035 | |||
4.9 | Vehicle width | mm | 1090 | |||
4.1 | Fork size | mm | 1070*122*45 | |||
4.12 | Channel width | mm | 3797 | |||
4.13 | Turning radius | mm | 1997 | |||
Performance | ||||||
5.1 | Walking speed,loaded/withoutload | km/h | 13/15 | |||
5.2 | lifting speed,loaded/load | m/s | 240/450 | |||
5.3 | Dropping speed loaded/without load | m/s | 480/420 | |||
5.6 | Maximum traction,loaded | N | 15000 | |||
5.8 | Max grade ability,loaded/without load | % | 12/15 | |||
Drive | ||||||
6.1 | Drive motor power | kw | 8 | |||
6.2 | Drive motor power | kw | 7.5 | |||
6.4 | Level voltage/Capacitance | V/Ah | 48/450 | |||
Others | ||||||
7.1 | Drive System | AC | ||||
7.2 | Electrical control system | Curtis from America | ||||
Electric Warehouse Forklift detail:
As a professional manufacturer of forklift, we also can offer you customized service,
The following items are optional:
Container mast, for example, 2-stage full free mast of 3m, 3-stage full free mast of 4.5m/ 4.8m
Side shifter, fork positioner, longer forks, fork extension
For the details of customized configurations and options, please contact with us.
WMT CNC professional service will be impressed on you.
The following items are optional:
Container mast, for example, 2-stage full free mast of 3m, 3-stage full free mast of 4.5m/ 4.8m
Side shifter, fork positioner, longer forks, fork extension
For the details of customized configurations and options, please contact with us.
WMT CNC professional service will be impressed on you.
Detailed Images
WMT CNC Forklift is widely used in the warehouse ,mini enterprise port, wharf, industrial, station, and others.
The quality of our Vmax forklift has been recognized by our customers from all over the World
The quality of our Vmax forklift has been recognized by our customers from all over the World
Main part

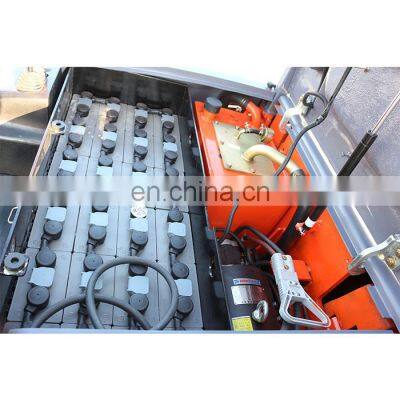

Name:Lead acid battery
Brand:Torch
Original:China Shangdong
1500times full charging low main tenance,short time charing,etc...
Main part
Name:Transmission
Brand:Zheng cung
Original:China
China top prefessional transmissiun,precise,
Original:China
China top prefessional transmissiun,precise,
gear and long life usage
Main Part:

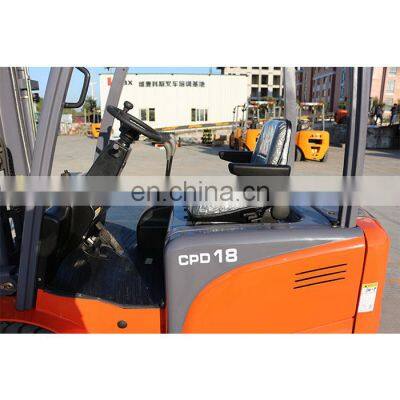

Name:Operation type
Easy opreating steering wheel,fast electronic shift,convenien handel,micro brake& foot brake with hydraulic pedal etc.
Main Features:
Name:Wide view mast
Brand:WMTCNC
Original:China
sTRONG U-STEEL,lifting cylinder chain,dearing,etc
