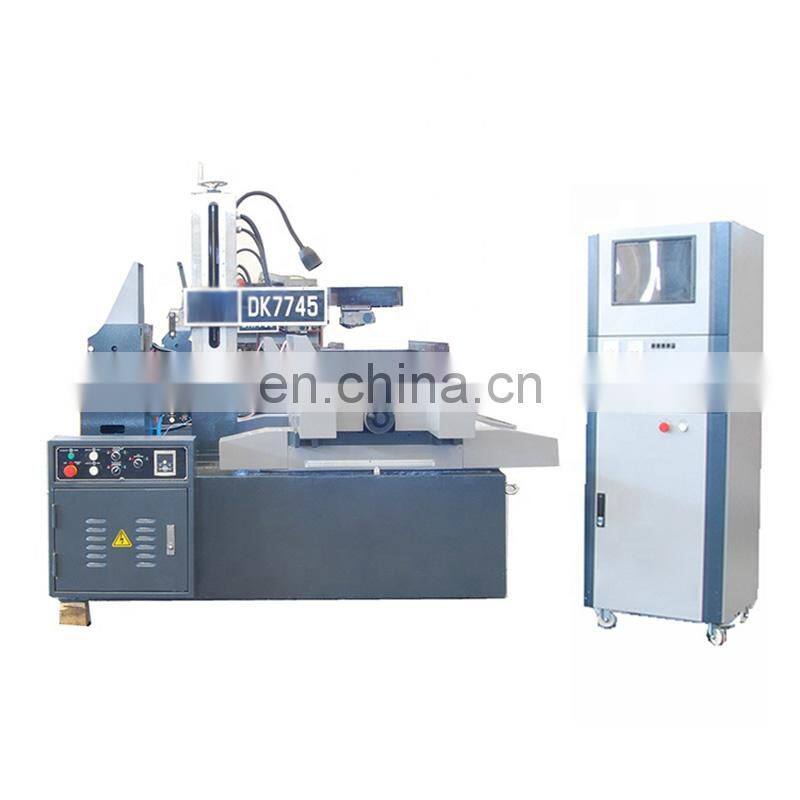

DK7745 Fast Speed Single Cut China CNC Wire Cutting Machine With Competitive Price
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Chinese Hot Sale CNC Wire Cutting Machine DK7750HNegotiableMOQ: 1 -
High Accuracy Molybdenum Wire Cutting DK7755 Wire EDM Machine With CENegotiableMOQ: 1
-
DK7632 High PrecisionCNC EDM Wire Cutting Machine With Slow Speed for Metal ProcessingNegotiableMOQ: 1
-
High Accuracy DK7750J Molybdenum CNC EDM Wire Cut MachineNegotiableMOQ: 1
-
Small Edm Machine High Accuracy ZNC-450 ZNC EDM Die Sinking Machine With LCD Control CabinetNegotiableMOQ: 1
Features:
his series of machine tools are used with a matched impulse electric cabinet.
Z-axis is driven by Japan Sanyo DC servo motor, with a Z-axis numerical control features, X Y axis adopts precise ball screw, and precision optical grating digital display shows the coordinate which makes coordinates have high positioning accuracy.
Electric cabinet adopts the most advanced industry-specific industrial control board，strong function, good stability, simple operation, as long as input a few parameters such as Z-axis depth，it will select a set of suitable data from the expert database system that matches the processing, and process from the rough processing to finish once automatically.
Technical parameter/Model |
unit |
DK7745 |
Worktable size |
mm |
810*570 |
Worktable travel |
mm |
450*550 |
Max cutting thickness |
mm |
400 |
Cutting angel |
° |
45° |
Max cutting speed(single) |
m㎡/min |
150 |
Max cutting speed(multi) |
m㎡/min |
85 |
Optimum roughness |
um |
<1 um |
Dia of molybdenum wire |
mm |
0.1-0.2 |
molybdenum wire moving speed |
m/s |
11.5 |
Power supply |
HZ V |
50HZ 220V/380V |
Precision |
mm |
<0.01 mm |
piece weight |
kg |
450 |
Power consumption |
Kw |
<1.2 |
Machine weight |
kg |
1800 |
Machine demensions |
mm |
1600*1240*1400 |
