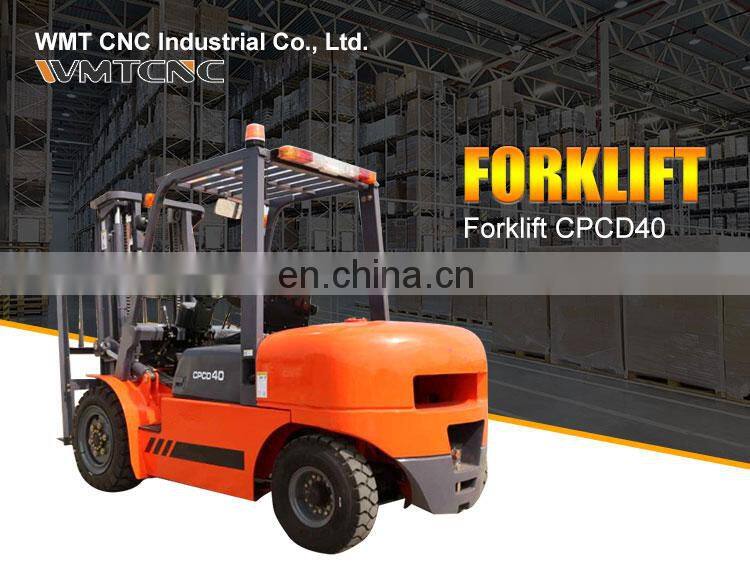

4 Ton Chinese Cheaper Diesel/Electric Forklift CPCD40 With CE

Jingjiang Fuji Technology Co., Ltd.
4Yrs
4 Ton Chinese Cheaper Diesel/Electric Forklift CPCD40 With CE thumbnail-1
4 Ton Chinese Cheaper Diesel/Electric Forklift CPCD40 With CE thumbnail-2
4 Ton Chinese Cheaper Diesel/Electric Forklift CPCD40 With CE thumbnail-3
4 Ton Chinese Cheaper Diesel/Electric Forklift CPCD40 With CE thumbnail-4
4 Ton Chinese Cheaper Diesel/Electric Forklift CPCD40 With CE photo-1

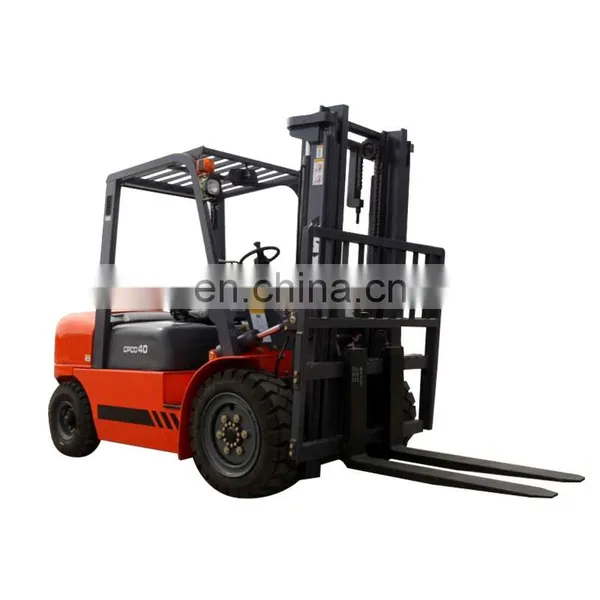

4 Ton Chinese Cheaper Diesel/Electric Forklift CPCD40 With CE photo-2

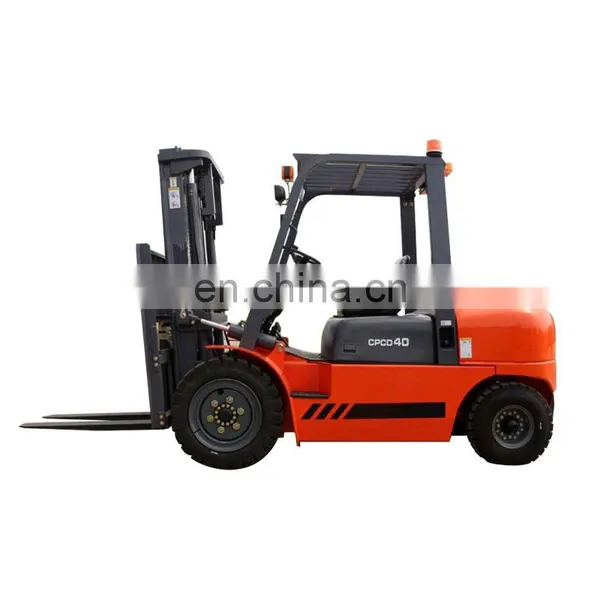

4 Ton Chinese Cheaper Diesel/Electric Forklift CPCD40 With CE photo-3

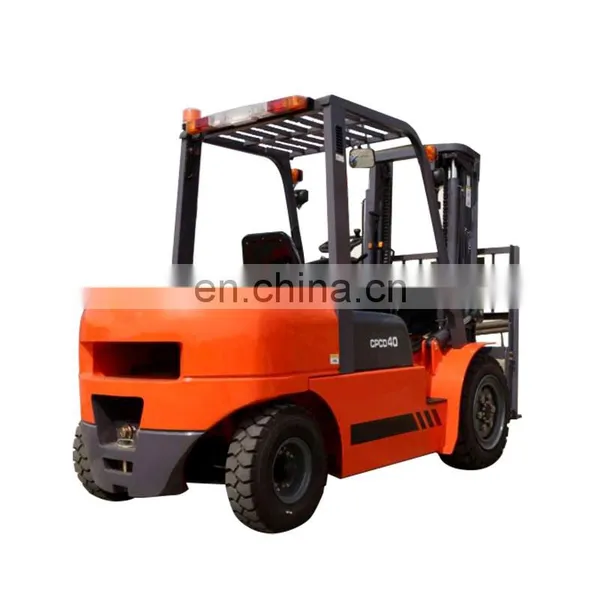

4 Ton Chinese Cheaper Diesel/Electric Forklift CPCD40 With CE photo-4
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

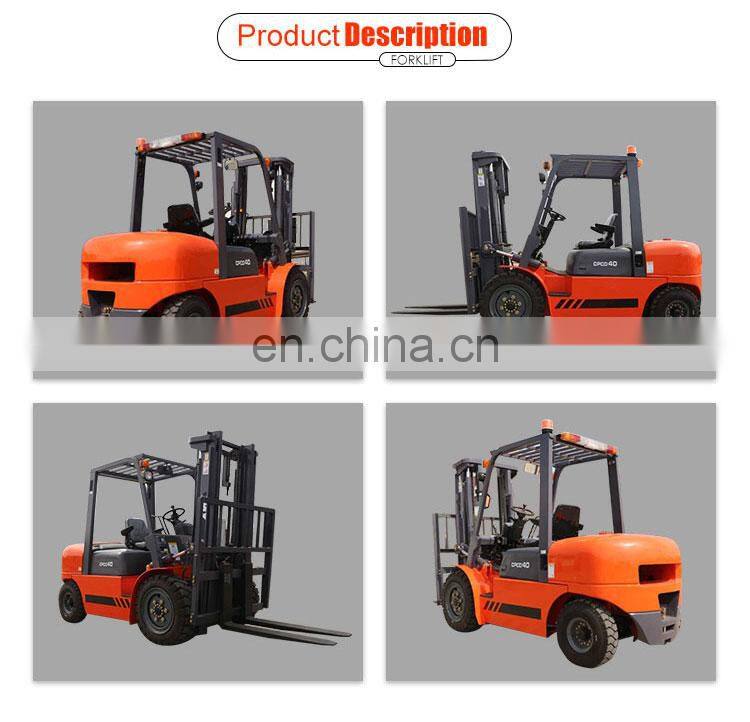

4 Ton Chinese cheaper Diesel/Electric Forklift CPCD40 with CE

                 SPECIFICATIONS of 4ton Diesel Forklift

Main Information
1 Manufacturer
2 Model Unit  CPCD40
3 Power type   Diesel
4 Rated capacity  kg 4000
5 Load center mm 500
6 Operator type   Drive in seat
Size
7 Max. lift height of mast with Load-backrest  mm 4275
8 Max.lift  height of fork mm 3000
9 Height of mast (standard) mm 2150
10 Free lift height(standard) mm 150
11 Height of Load-backrest mm 1235
12 Distance from seat to overhead guard   mm 1000
13  overhead guard height   mm 2105
14 Length with fork mm 3965/2895
15 Front overhang mm 500
16 Rear overhang mm 495
17 Wheel base mm 1900
18 The height of traction pin mm 330
19 Min. ground clearance mm 130
20 Overall width mm 1410
21 The distance between forks   mm 1290/260
22 Tread(front /rear)   mm 1160/1065
23 Min. Turning radius(outside) mm 2700
24 Min. Turning radius(inside) mm 230
25 Min. Intersecting aisle   mm 2685
26 Mast tilt angle deg 6° / 12°
27 Fork size mm 1070X130X50
Performance
28
Speeds		 Max.Drive speeds(with/without load) km/h 18/19
29 Lifting speeds (with load) mm/s 350/380
30 Lowering speeds(with /without full load) mm/s 350/400
31  Max. tractive force   KN 20/18
32 Max.grade ability (with/without full load) % 15/18
Weight
33 Total weight kg 5310
34 Weight Distribution full load (front/ rear)   kg 8380/930
35 Weight Distribution zero load(front / rear)   kg 2120/3190
Wheels and Tyres
36 Quantity of wheels      2 X / 2
37 Type of tyres     Penumatic tires
38 Tires Front    250-15-16PR
39 Rear   6.50-10-10PR
40 Driving Brake     hydraumatic pedal
41 Parking Brake     Mechanical manual
Control device for driving and transmitting
42 Battery V/AH 12 / 80
48 Fuel tank capacity   70
49 Number of speeds for transmission 1-1 Power shift transmission / 2-2 Hand shift transmission

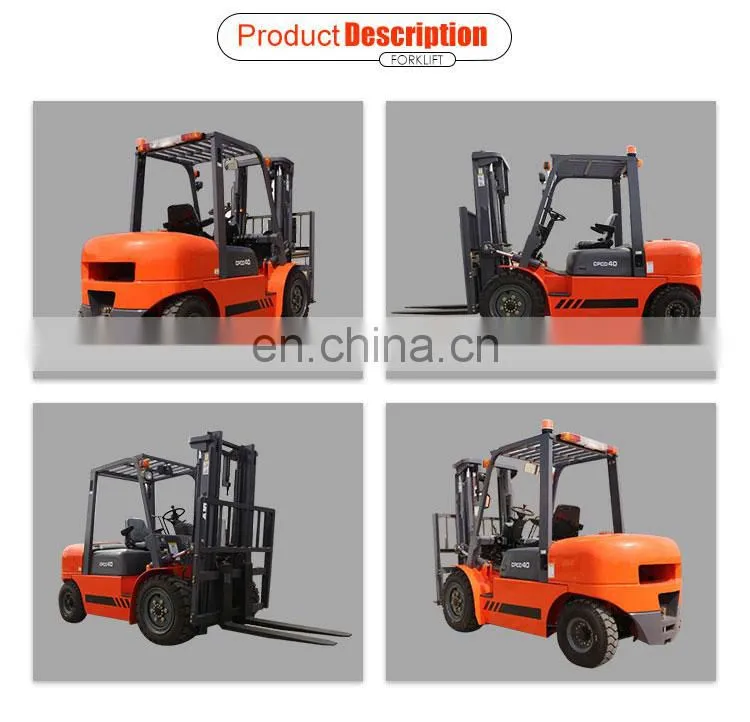

4 Ton Chinese cheaper Diesel/Electric Forklift CPCD40 with CE

4 Ton Chinese cheaper Diesel/Electric Forklift CPCD40 with CE

4 Ton Chinese cheaper Diesel/Electric Forklift CPCD40 with CE

4 Ton Chinese cheaper Diesel/Electric Forklift CPCD40 with CE

4 Ton Chinese cheaper Diesel/Electric Forklift CPCD40 with CE

4 Ton Chinese cheaper Diesel/Electric Forklift CPCD40 with CE

4 Ton Chinese cheaper Diesel/Electric Forklift CPCD40 with CE
