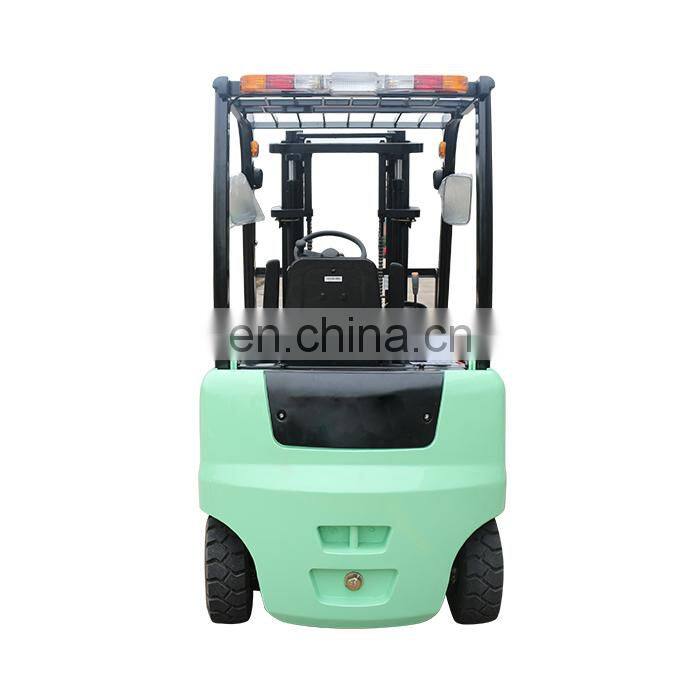

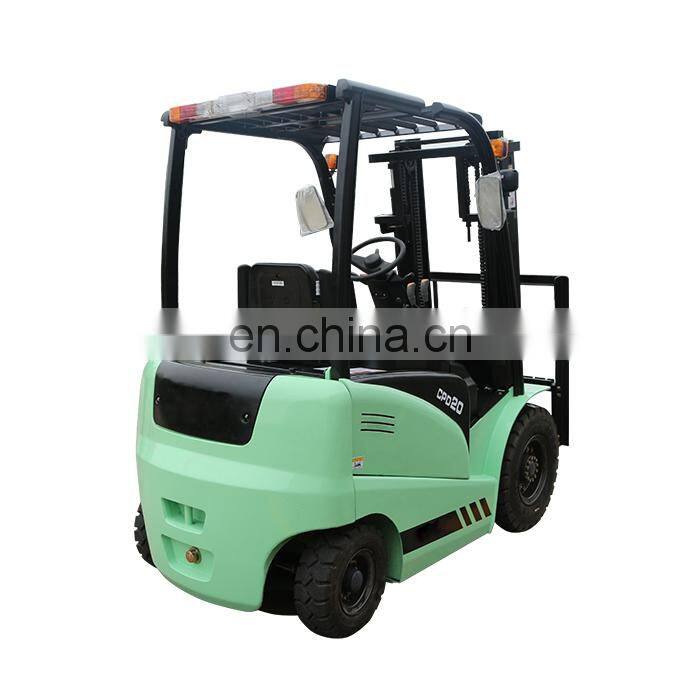

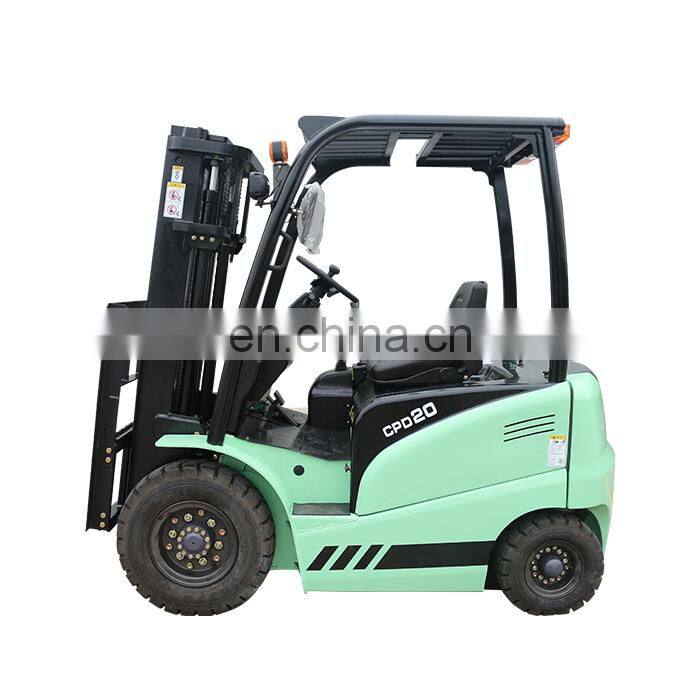

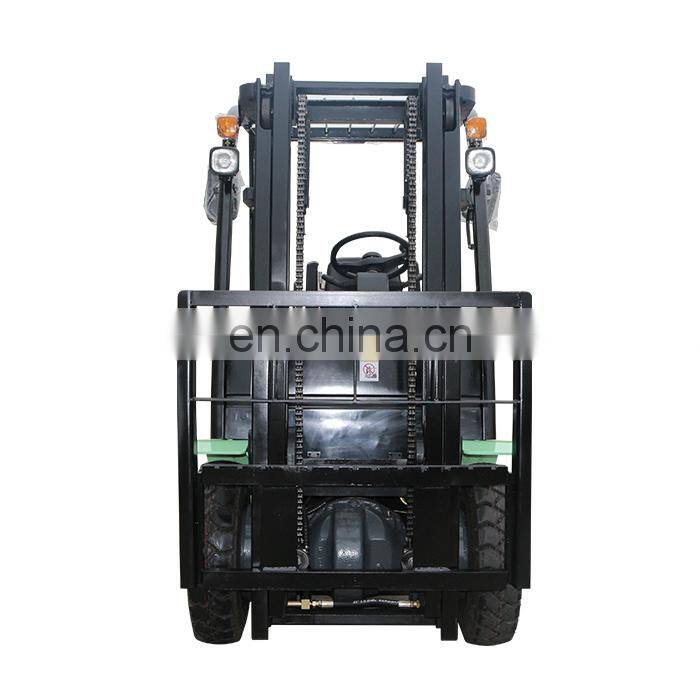

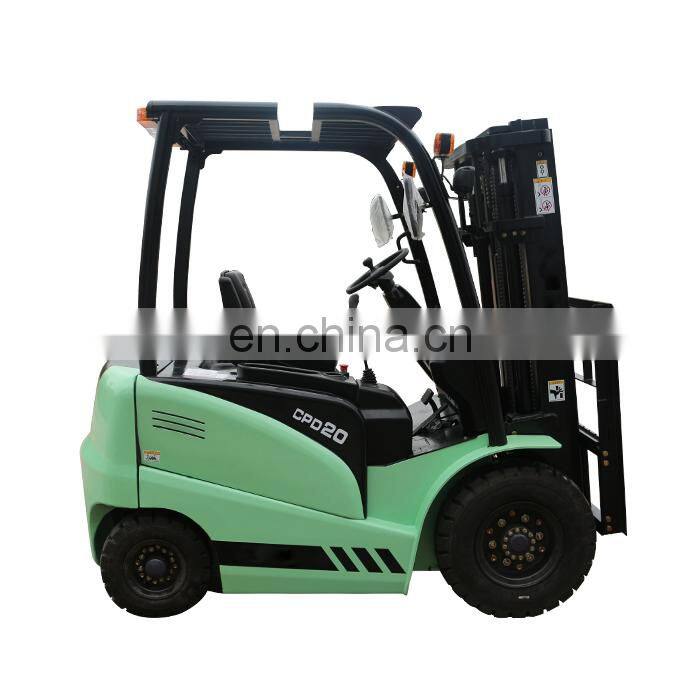

WMT 2022 New 2 Ton Electric Forklift Electric Motor Electric Forklift Truck for Sale
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
2.5ton Electric Forklift With Good Quality and Brand Made in China
-
CNC WIRE CUTTING MACHINE DK7335 EDM MACHINE METAL LATHE
-
DK7725M High Precision Cnc Wire Cutting Machines With Competitive Price
-
DK7732 High Quality CNC Wire EDM Machine With CE
-
DK7740 Wire Cutting Machine With High Precision for Metal Working
-
DK7745 Fast Speed Single Cut China CNC Wire Cutting Machine With Competitive Price
Product Description
Related Products
Product Description
Narrow place use mini 2ton Electric Forklift For Materials Handling mini equipment electric forklift 2.0 ton 2 ton electric forklift;
1) China top brand battery, 48V/400Ah, 48V/490Ah, water automatic filling system is poptional;
2) Mast optional: 3/4/4.5/5/5.5/6/7m duplex mast, 3.6/4/4.5/5/5.5/6m triplex mast, 3/3.3/3.5/4/m duplex full free mast.
3) Transmission: Automatic/manual;
4) Tire: pneumatic/Solid/non-mark solid;
5) Forks: 1070/1220/1370/1520/1670/1820/1970mm;
6) Attachments: Side shifter, fork positoner, fork sleeve, paper roller clamp, bale clamp, drum clamp, load extender, rotator,
fork clamps, push/pull, etc..
7) Additional: Cabin, heating, fan, air conditioner, high exhaust, paper fold, USB, camera & image, suspension seat, etc.
2) Mast optional: 3/4/4.5/5/5.5/6/7m duplex mast, 3.6/4/4.5/5/5.5/6m triplex mast, 3/3.3/3.5/4/m duplex full free mast.
3) Transmission: Automatic/manual;
4) Tire: pneumatic/Solid/non-mark solid;
5) Forks: 1070/1220/1370/1520/1670/1820/1970mm;
6) Attachments: Side shifter, fork positoner, fork sleeve, paper roller clamp, bale clamp, drum clamp, load extender, rotator,
fork clamps, push/pull, etc..
7) Additional: Cabin, heating, fan, air conditioner, high exhaust, paper fold, USB, camera & image, suspension seat, etc.
Model | CPD20 |
Operation type | Drive in seat |
Load capacity | 2000KG |
Load center | 500mm |
Weight with battery | 4214kg |
Tire Type,Driving wheel/Load wheel | Pneumatic Trie |
Main Information | ||||||
1.1 | Brand | WMTCNC | ||||
1.2 | Model | CPD20 | ||||
1.4 | Operation type | Drive in seat | ||||
1.5 | Load capacity | kg | 2000 | |||
1.6 | Load center | mm | 500 | |||
2.1 | Weight with battery | kg | 4214 | |||
Tire,chassis | ||||||
3.1 | Tire Type,Driving wheel/Load wheel | |||||
Size | ||||||
4.1 | Mast tilt,Forward/backward | α/β（°） | 6/12 | |||
4.2 | Mast height after mast fall | mm | 1995 | |||
4.3 | Free lift height | mm | 150 | |||
4.4 | Standard Mast height | mm | 3000 | |||
4.7 | Overhead guard height | mm | 2098 | |||
4.8 | Overall length | mm | 2353 | |||
4.9 | Vehicle width | mm | 1170 | |||
4.1 | Fork size | mm | 1070*122*45 | |||
4.12 | Channel width | mm | 4040 | |||
4.13 | Turning radius | mm | 2172 | |||
Performance | ||||||
5.1 | Walking speed,loaded/withoutload | km/h | 12/14 | |||
5.2 | lifting speed,loaded/load | m/s | 320/450 | |||
5.3 | Dropping speed loaded/without load | m/s | 476/426 | |||
5.6 | Maximum traction,loaded | N | 18000 | |||
5.8 | Max grade ability,loaded/without load | % | 13/15 | |||
Drive | ||||||
6.1 | Drive motor power | kw | 11 | |||
6.2 | Drive motor power | kw | 12 | |||
6.4 | Level voltage/Capacitance | V/Ah | 48/630 | |||
Others | ||||||
7.1 | Drive System | AC | ||||
7.2 | Electrical control system | Curtis from America | ||||
Electric Warehouse Forklift detail:
As a professional manufacturer of forklift, we also can offer you customized service,
The following items are optional:
Container mast, for example, 2-stage full free mast of 3m, 3-stage full free mast of 4.5m/ 4.8m
Side shifter, fork positioner, longer forks, fork extension
For the details of customized configurations and options, please contact with us.
WMT CNC professional service will be impressed on you.
The following items are optional:
Container mast, for example, 2-stage full free mast of 3m, 3-stage full free mast of 4.5m/ 4.8m
Side shifter, fork positioner, longer forks, fork extension
For the details of customized configurations and options, please contact with us.
WMT CNC professional service will be impressed on you.
Detailed Images
WMT CNC Forklift is widely used in the warehouse ,mini enterprise port, wharf, industrial, station, and others.
The quality of our Vmax forklift has been recognized by our customers from all over the World
The quality of our Vmax forklift has been recognized by our customers from all over the World

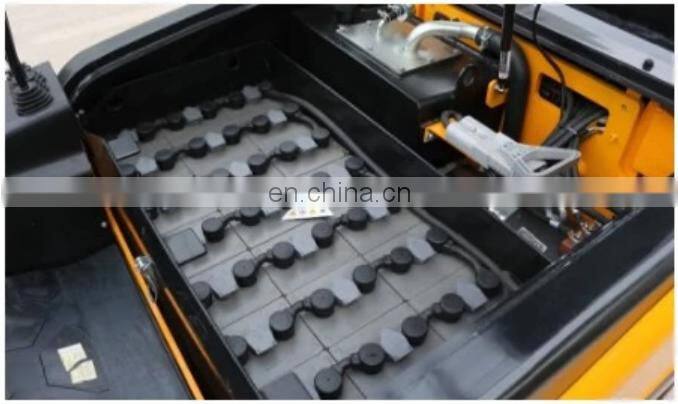

Main part
Name: Lead acid battery
Brand: Torch
Original: China Shangdong
1500times full charging low main tenance, short time charing,etc...

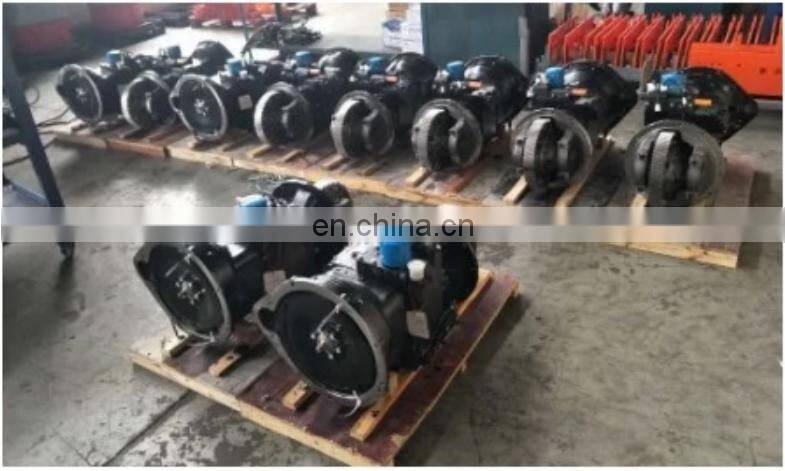

Main part
Name: Transmission
Brand: Zheng cung
Original: China
China top prefessional transmissiun, precise,
Original: China
China top prefessional transmissiun, precise,
gear and long life usage

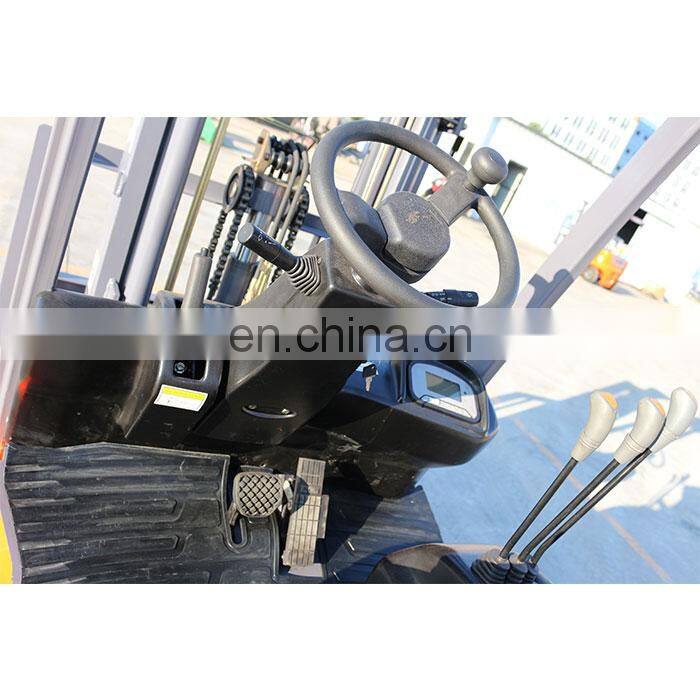

Main Part:
Name: Operation type
Easy opreating steering wheel, fast electronic shift, convenien handel, micro brake& foot brake with hydraulic pedal etc.

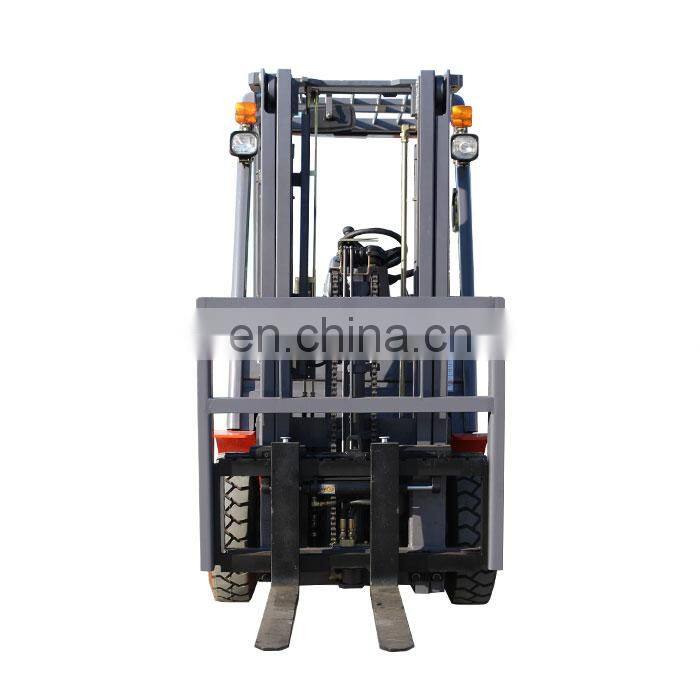

Main Features:
Name: Wide view mast
Brand: WMTCNC
Original: China
sTRONG U-STEEL,lifting cylinder chain, dearing, etc
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
