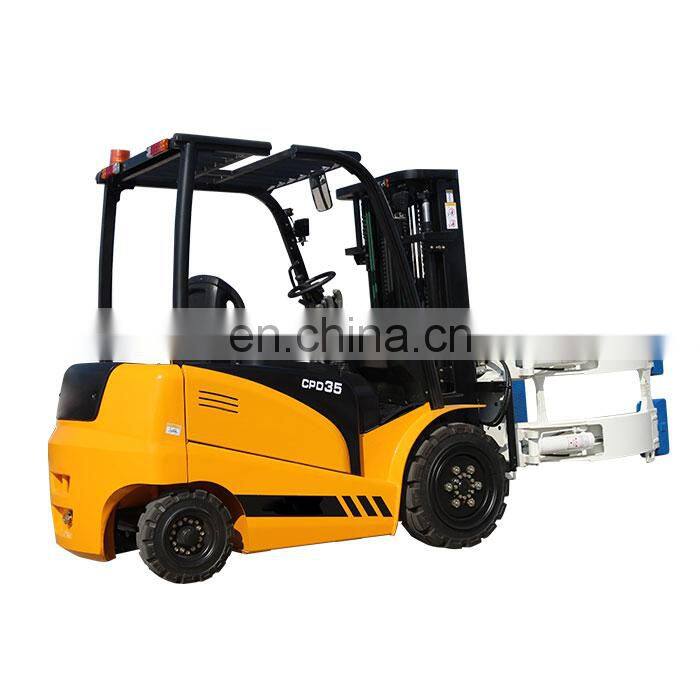

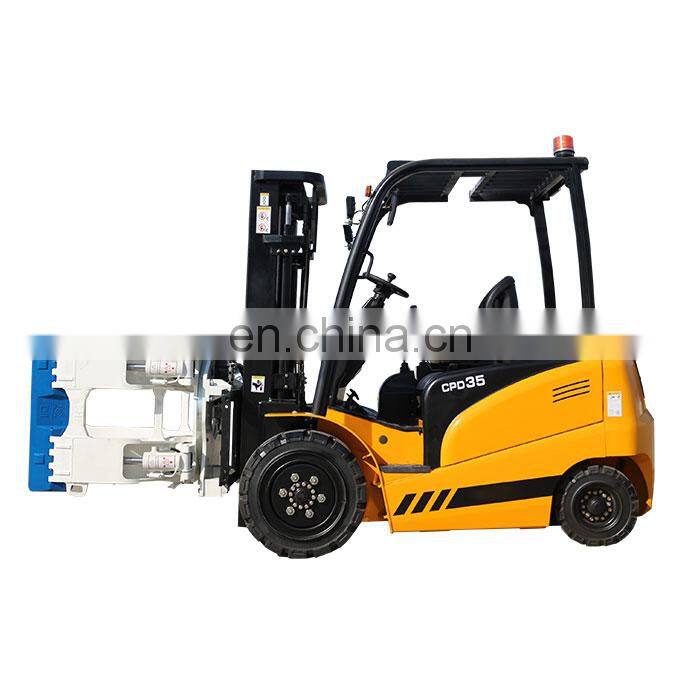

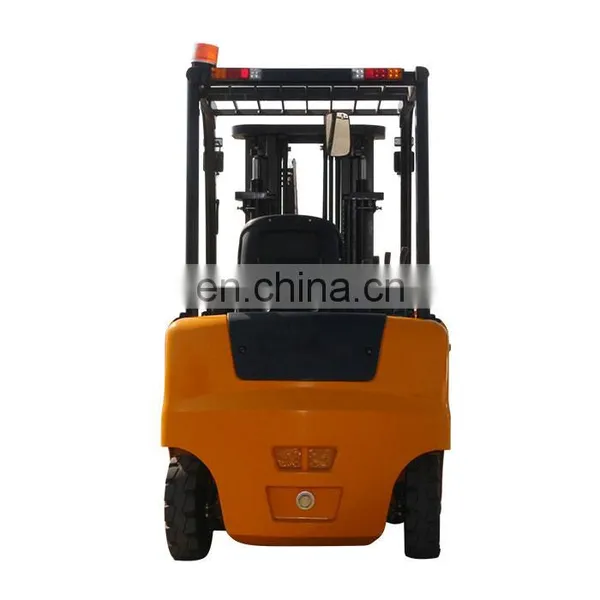

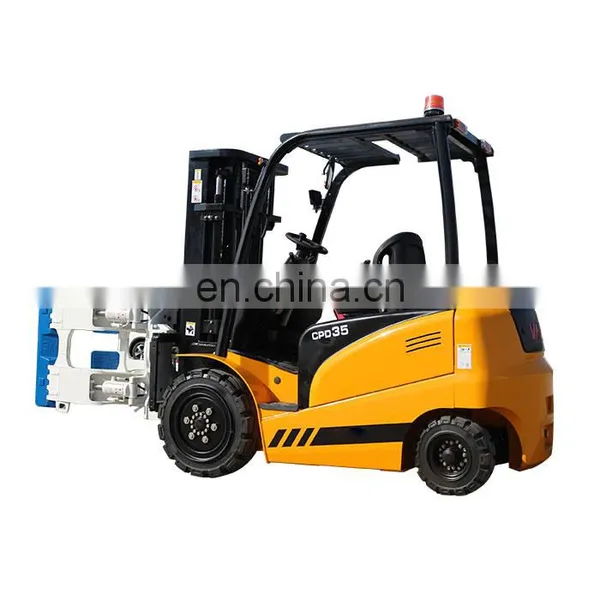

Hot Sale Chinese 3.5ton Battery Forklift Pallet Truck With 3m Height With Cheap Price
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Hot Sale Chinese 2ton LPG/GASOLINE Forklift With Cheap Price
-
Hot Sale Chinese 3.5ton LPG/GASOLINE Forklift With Cheap Price
-
Heli Small Gas LPG Forklift CPQYD40 With Competitive Price
-
CPQYD35 Hot Sale 3.5t Gasoline/LPG Electric Forklift With Attachment
-
2021 Good Quality 3.5 Ton Lpg/Gasoline Forklift Truck CPQYD35 With CE From China
-
WMT 2022 New 2 Ton Electric Forklift Electric Motor Electric Forklift Truck for Sale
Product Description
Product Description

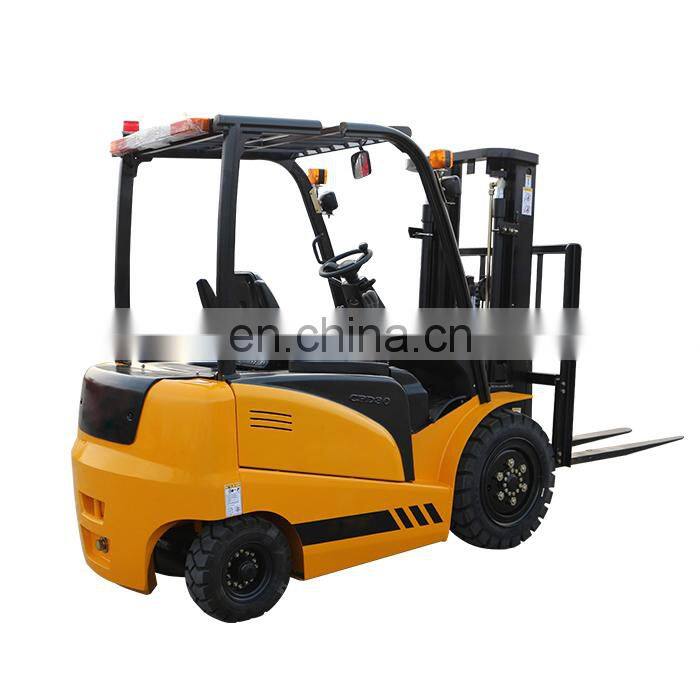

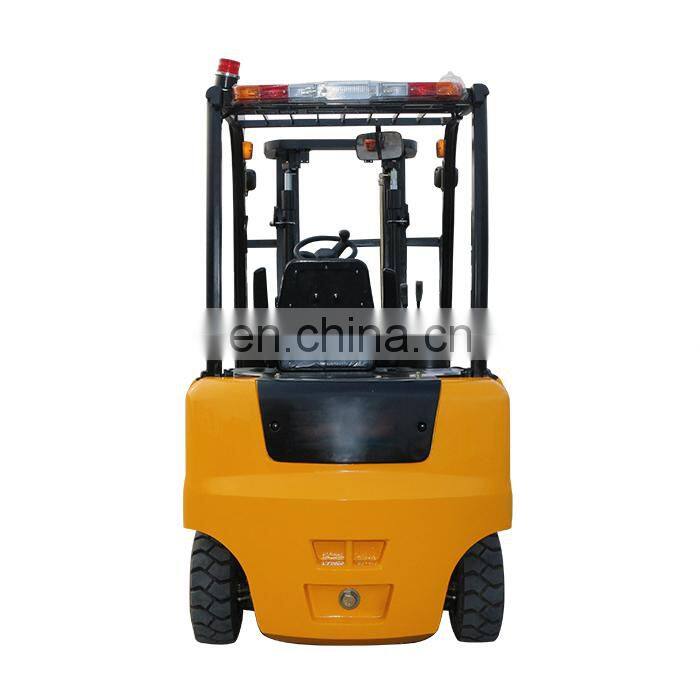

CE standard electric forklift Chinese good quality 3.5ton four wheels small electric forklift price
Integrated central control box the reliability of electric system
Ergonomical design ensures best operation
Energy-saving hydraulic system decreases fuel consumption
High-quality hydraulic hoses, no oil leakage
Wide-view mast design improves the productivity and safety
Integrated central control box the reliability of electric system
Ergonomical design ensures best operation
Energy-saving hydraulic system decreases fuel consumption
High-quality hydraulic hoses, no oil leakage
Wide-view mast design improves the productivity and safety
Model | CPD35 |
Operation type | Drive in seat |
Load capacity | 3500KG |
Load center | 500mm |
Weight with battery | 5010kg |
Tire Type,Driving wheel/Load wheel | Pneumatic Trie |
Main Information | ||||||
1.1 | Brand | WMTCNC | ||||
1.2 | Model | CPD35 | ||||
1.4 | Operation type | Drive in seat | ||||
1.5 | Load capacity | kg | 3500 | |||
1.6 | Load center | mm | 500 | |||
2.1 | Weight with battery | kg | 5010 | |||
Tire,chassis | ||||||
3.1 | Tire Type,Driving wheel/Load wheel | |||||
Size | ||||||
4.1 | Mast tilt,Forward/backward | α/β（°） | 6/12 | |||
4.2 | Mast height after mast fall | mm | 2025 | |||
4.3 | Free lift height | mm | 150 | |||
4.4 | Standard Mast height | mm | 3000 | |||
4.7 | Overhead guard height | mm | 2092 | |||
4.8 | Overall length | mm | 2507 | |||
4.9 | Vehicle width | mm | 1220 | |||
4.1 | Fork size | mm | 1070*122*45 | |||
4.12 | Channel width | mm | 4105 | |||
4.13 | Turning radius | mm | 2360 | |||
Performance | ||||||
5.1 | Walking speed,loaded/withoutload | km/h | 14/15 | |||
5.2 | lifting speed,loaded/load | m/s | 300/400 | |||
5.3 | Dropping speed loaded/without load | m/s | 390/260 | |||
5.6 | Maximum traction,loaded | N | 20000 | |||
5.8 | Max grade ability,loaded/without load | % | 14/15 | |||
Drive | ||||||
6.1 | Drive motor power | kw | 16.6 | |||
6.2 | Drive motor power | kw | 13.5 | |||
6.4 | Level voltage/Capacitance | V/Ah | 80/500 | |||
Others | ||||||
7.1 | Drive System | AC | ||||
7.2 | Electrical control system | Curtis from America | ||||
Electric Warehouse Forklift detail:
As a professional manufacturer of forklift, we also can offer you customized service,
The following items are optional:
Container mast, for example, 2-stage full free mast of 3m, 3-stage full free mast of 4.5m/ 4.8m

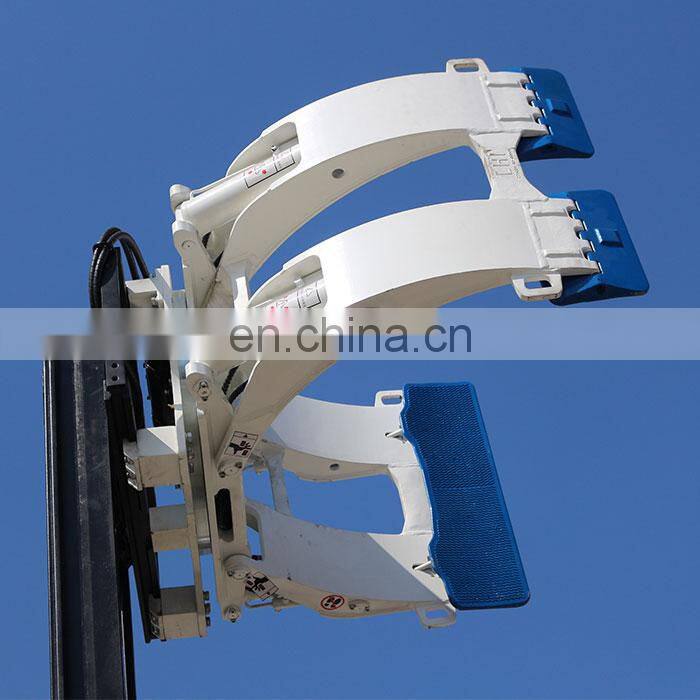

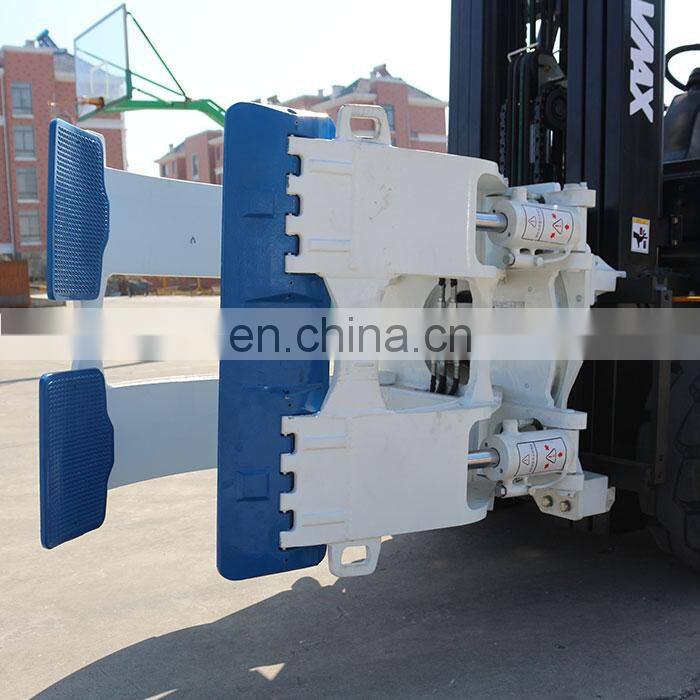

Side shifter, fork positioner, longer forks, fork extension
For the details of customized configurations and options, please contact with us.
WMT CNC professional service will be impressed on you.
The following items are optional:
Container mast, for example, 2-stage full free mast of 3m, 3-stage full free mast of 4.5m/ 4.8m
Side shifter, fork positioner, longer forks, fork extension
For the details of customized configurations and options, please contact with us.
WMT CNC professional service will be impressed on you.
Detailed Images
WMT CNC Forklift is widely used in the warehouse ,mini enterprise port, wharf, industrial, station, and others.
The quality of our Vmax forklift has been recognized by our customers from all over the World
The quality of our Vmax forklift has been recognized by our customers from all over the World
Main part
Name:Lead acid battery
Brand:Torch
Original:China Shangdong
1500times full charging low main tenance,short time charing,etc...
Main part
Name:Transmission
Brand:Zheng cung
Original:China
China top prefessional transmissiun,precise,
Original:China
China top prefessional transmissiun,precise,
gear and long life usage
Main Part:

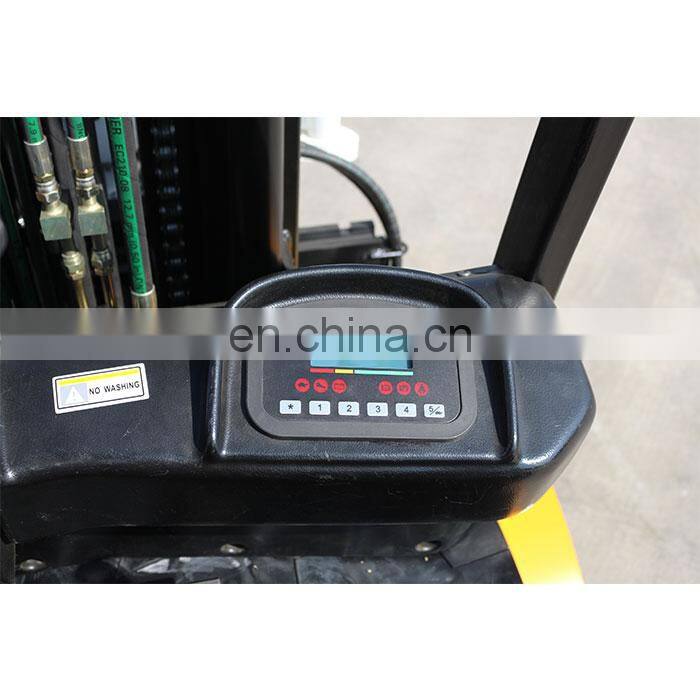

Name:Operation type
Easy opreating steering wheel,fast electronic shift,convenien handel,micro brake& foot brake with hydraulic pedal etc.
Main Features:

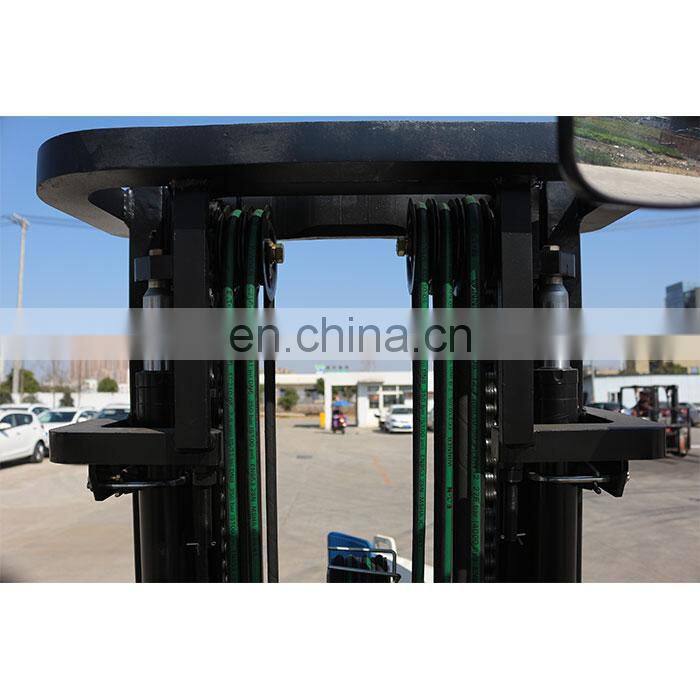

Name:Wide view mast
Brand:WMTCNC
Original:China
sTRONG U-STEEL,lifting cylinder chain,dearing,etc
