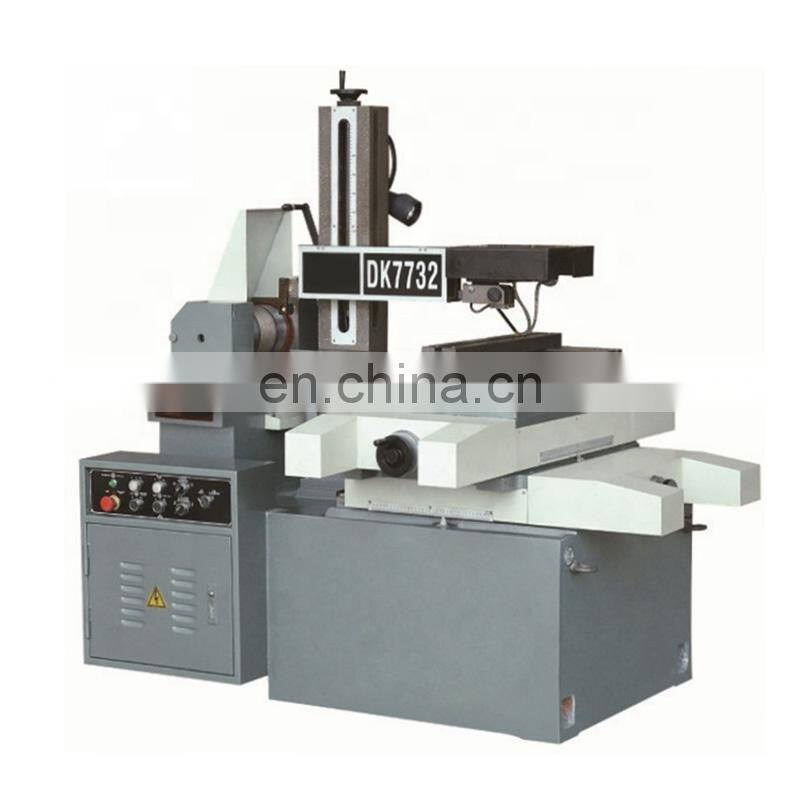

DK7732 High Quality CNC Wire EDM Machine With CE
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DK7740 Wire Cutting Machine With High Precision for Metal WorkingNegotiableMOQ: 1 -
DK7745 Fast Speed Single Cut China CNC Wire Cutting Machine With Competitive PriceNegotiableMOQ: 1
-
Chinese Hot Sale CNC Wire Cutting Machine DK7750HNegotiableMOQ: 1
-
High Accuracy Molybdenum Wire Cutting DK7755 Wire EDM Machine With CENegotiableMOQ: 1
-
DK7632 High PrecisionCNC EDM Wire Cutting Machine With Slow Speed for Metal ProcessingNegotiableMOQ: 1
Features:
Electric discharge machine DK7732 with good rigidity, high precision, low noise, reasonable price, and easy to operate and maintain. And it has a four-axis linkage, wire breaking protection. Especially suitable for mold processing.
Specification | Unit | DK7732M |
Maximum workiece size | mm | 580x500 |
Stroke(X/Y) | mm | 400x320 |
Maximum cutting thickness | mm | 260 |
Maximum taper | / | ±10°/60mm |
Molybdenum wire diameter | mm | φ0.13-φ0.18 |
Wire speed | m/min | Max.speed 600 |
Machine net weight | Kg | 1700 |
Machine dimension | mm | 1900x1750x1900 |
Maximum workpiece weight | kg | 350 |
Water tank filtration precision | mm | 0.005 |
Water tank volume | L | 110 |
Maximum cutting speed | mm2/min | 200 |
Best surface roughness | μm | ≤Ra0.8 |
Maximum working current | A | 6 |
Power | KVA | 2 |
