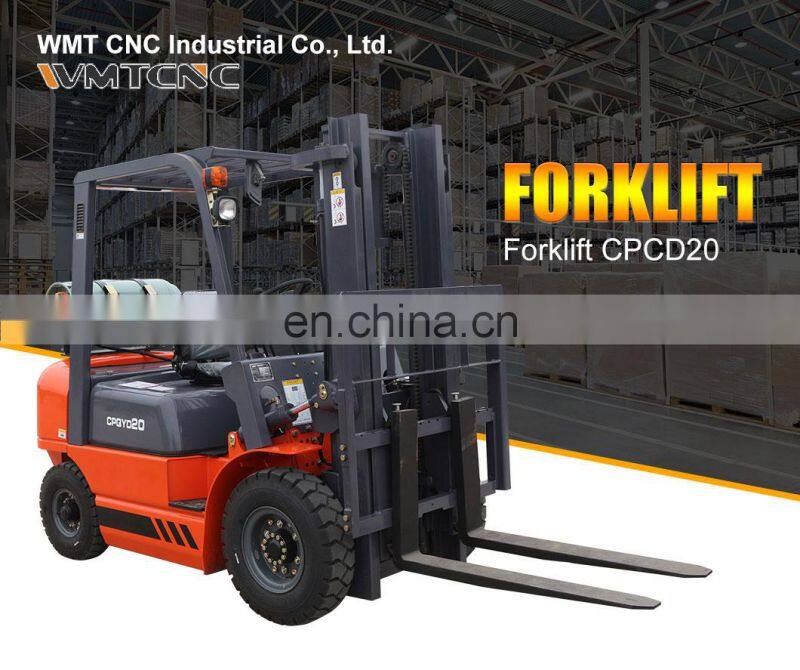

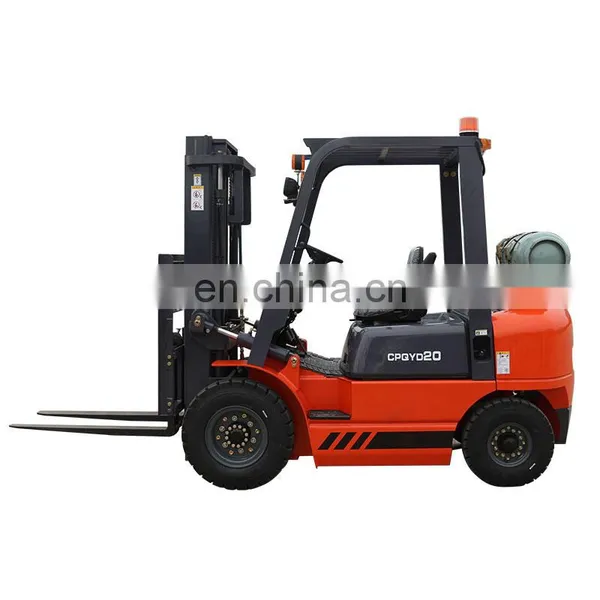

Hot Sale Chinese 2ton LPG/GASOLINE Forklift With Cheap Price

Hot Sale Chinese 2ton LPG/GASOLINE Forklift With Cheap Price thumbnail-1
Hot Sale Chinese 2ton LPG/GASOLINE Forklift With Cheap Price thumbnail-2
Hot Sale Chinese 2ton LPG/GASOLINE Forklift With Cheap Price thumbnail-3
Hot Sale Chinese 2ton LPG/GASOLINE Forklift With Cheap Price thumbnail-4
Hot Sale Chinese 2ton LPG/GASOLINE Forklift With Cheap Price thumbnail-5
Hot Sale Chinese 2ton LPG/GASOLINE Forklift With Cheap Price photo-1

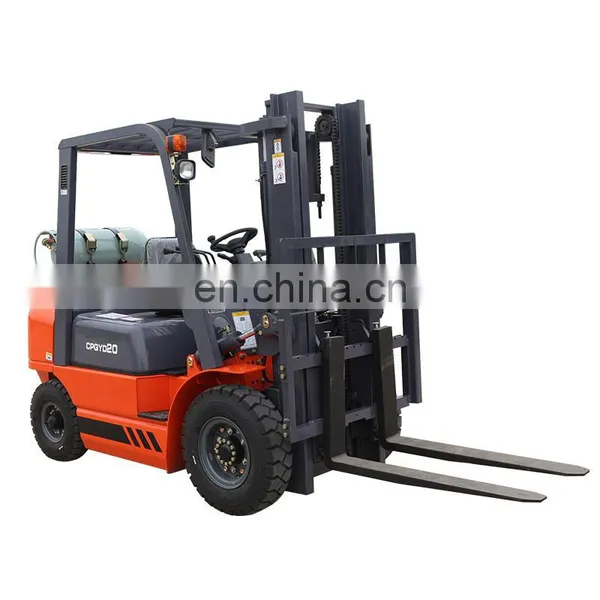

Hot Sale Chinese 2ton LPG/GASOLINE Forklift With Cheap Price photo-2

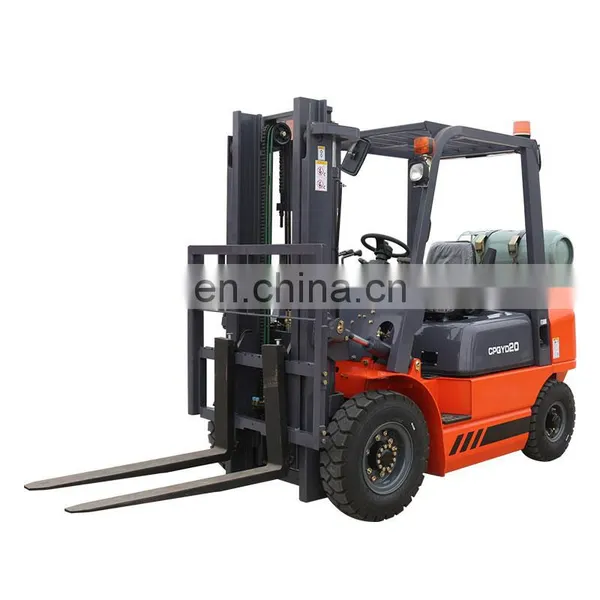

Hot Sale Chinese 2ton LPG/GASOLINE Forklift With Cheap Price photo-3

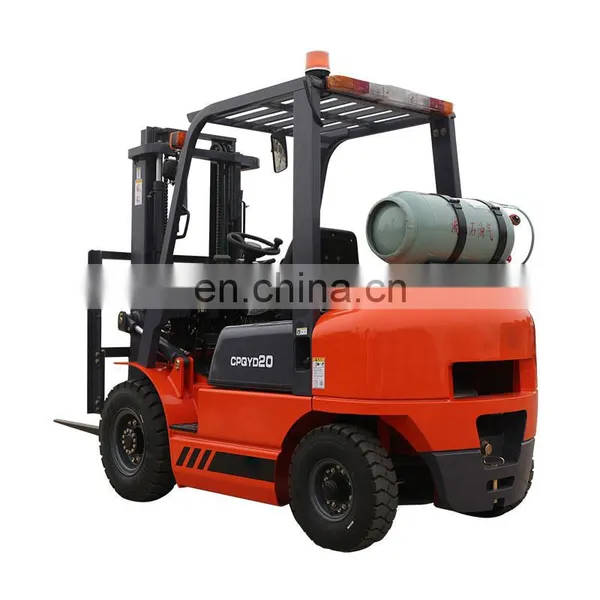

Hot Sale Chinese 2ton LPG/GASOLINE Forklift With Cheap Price photo-4

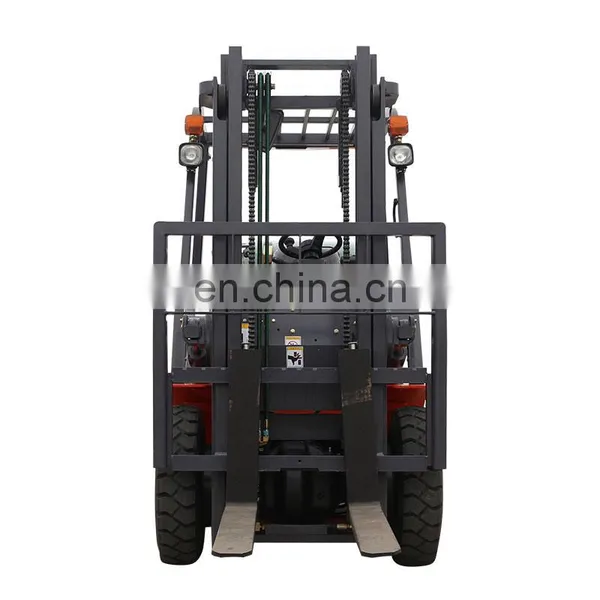

Hot Sale Chinese 2ton LPG/GASOLINE Forklift With Cheap Price photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Contact Supplier Request Quote Chat Now
Jingjiang Fuji Technology Co., Ltd.
Gold Verified Supplier
4Yrs
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

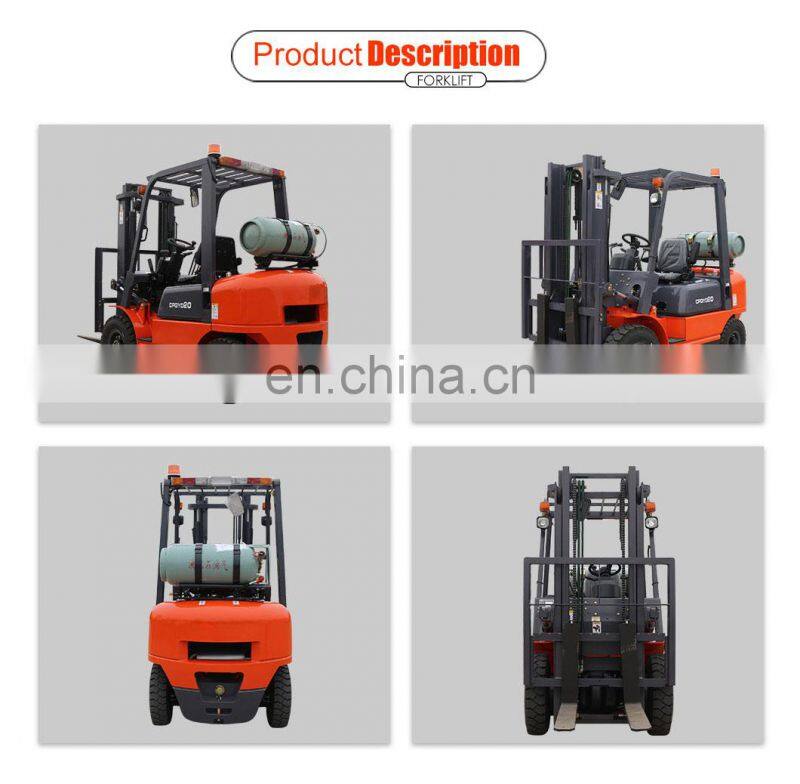

Product Description
Main Information
1
Manufacturer
WMTCNC
2
Model
Unit
CPQD20
CPQYD20
3
Power type
LPG&Gasoline
4
Rated capacity
kg
2000
5
Load center
mm
500
6
Operator type
Drive in seat
Size
7
Max. lift height of mast with Load-backrest
mm
4030
8
Max.lift height of fork(standard)
mm
3000
9
Height of mast (standard)
mm
2000
10
Free lift height(standard)
mm
170
11
Height of Load-backrest
mm
1010
12
Distance from seat to overhead guard
mm
1000
13
overhead guard height
mm
2070
14
Length with fork/with out fork
mm
2502
15
Front overhang
mm
477
16
Rear overhang
mm
420
17
Wheel base
mm
1600
18
The height of traction pin
mm
290
19
Min. ground clearance
mm
110
20
Overall width
mm
1170
21
The distance between forks
mm
1024/200
22
Tread(front /rear)
mm
970/970
23
Min. Turning radius(outside)
mm
2170
24
Min. Turning radius(inside)
mm
160
25
Min. Intersecting aisle
mm
2200
26
Mast tilt angle
deg
6° / 12°
27
Fork size
mm
920x100x45
Performance
28

Speeds
Max.Drive speeds(with/without load)
km/h
17/19
29
Lifting speeds (with load)
mm/s
530/550
30
Lowering speeds(with /without full load)
mm/s
450/550
31
Max. tractive force
KN
20/15
21/15
32
Max.grade ability (with/without full load)
%
21/20
27/20
Weight
33
Total weight
kg
3320
34
Weight Distribution full load (front/ rear)
kg
4788/532
35
Weight Distribution zero load(front / rear)
kg
1328/1992
Wheels and Tyres
36
Quantity of wheels
2 X / 2
37
Type of tyres
Penumatic tires
38
Tires
Front
7.0-12-12PR
39
Rear
6.00-9-10PRR
40
Driving Brake
Hydraumatic pedal
41
Parking Brake
Mechanical manual
Control device for driving and transmitting
42
Battery
V/AH
12/80
43
Engine (standard)
Model
GQ-4Y
44
Rated output
kw/rpm
47/2800
45
Rated torque
N.m/rpm
154/1800
46
No.of cylinder
4-90X86
47
Displacement
L
2.237
48
Fuel tank capacity
L
60
49
Number of speeds for transmission
2-2 Hand shift transmission /
1-1 Power shift transmissio

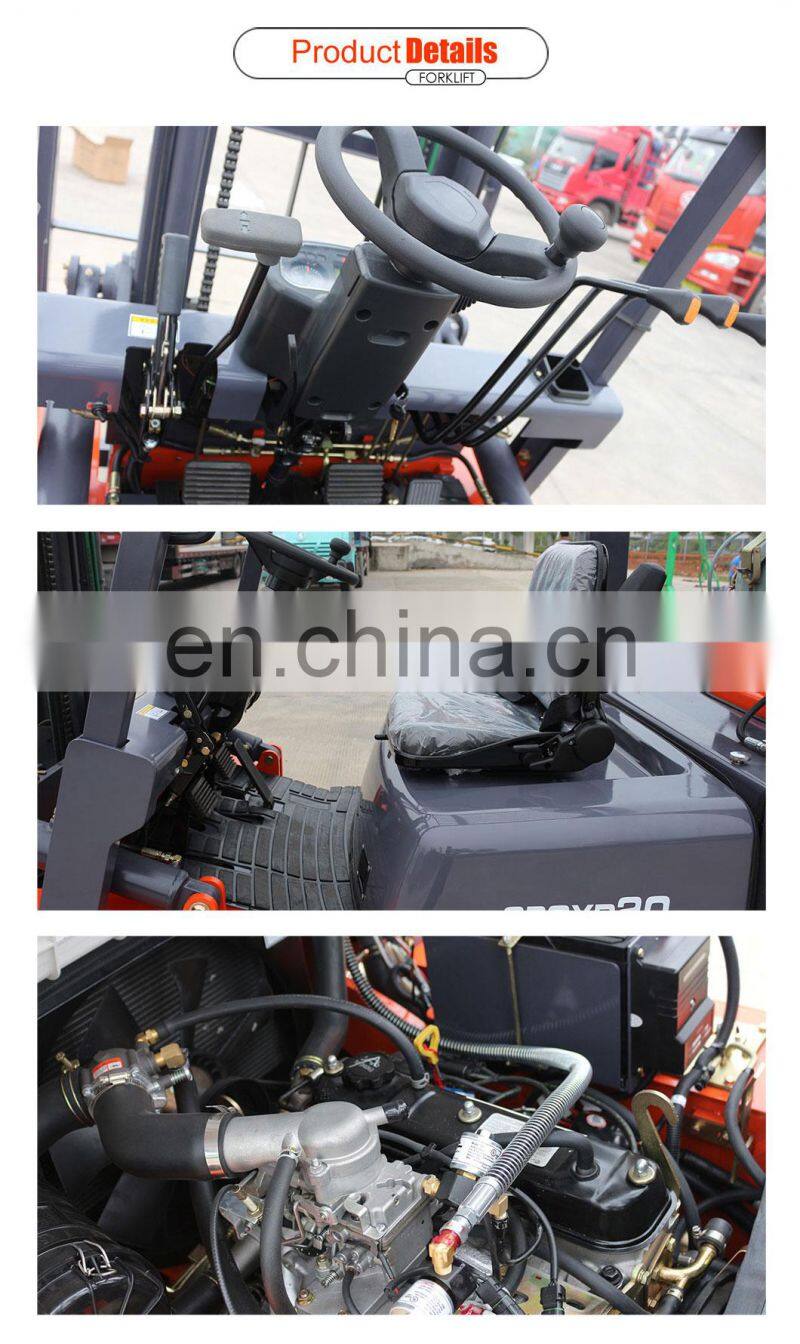

Detailed Images
