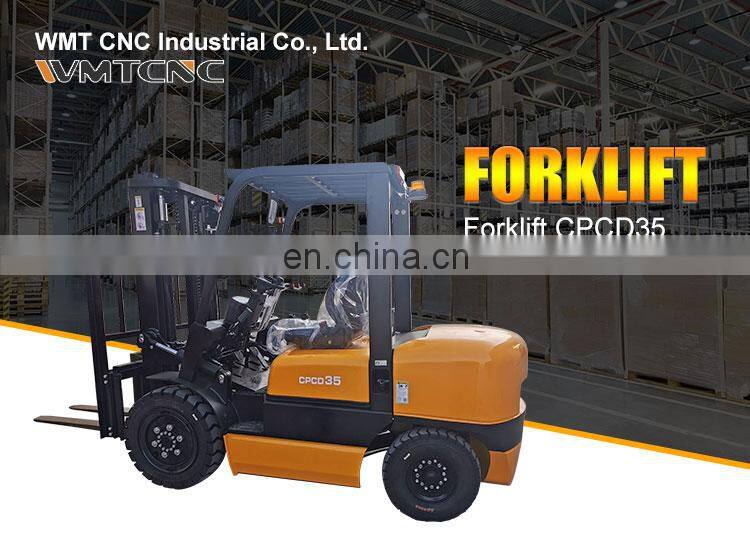

3.5 Ton Chinese Cheaper Diesel/Electric Forklift Price CPCD35

Jingjiang Fuji Technology Co., Ltd. Gold Verified Supplier

4Yrs

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Business Type:

Manufacturer

Year Established:

2018

Factory Size:

Below 1,000 square meters

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

SPECIFICATIONS of 3.0ton and 3.5Ton Diesel Forklift
Main Information
1	Manufacturer
2	Model		Unit	CPCD35
3	Power type			Diesel
4	Rated capacity		kg	3500
5	Load center		mm	500
6	Operator type			Drive in seat
Size
7	Max. lift height of mast with Load-backrest		mm	4262
8	Max.lift height of fork		mm	3000
9	Height of mast (standard)		mm	2180
10	Free lift height(standard)		mm	170
11	Height of Load-backrest		mm	1235
12	Distance from seat to overhead guard		mm	1000
13	overhead guard height		mm	2090
14	Length with fork		mm	3763/2693
15	Front overhang		mm	498
16	Rear overhang		mm	495
17	Wheel base		mm	1700
18	The height of traction pin		mm	310
19	Min. ground clearance		mm	135
20	Overall width		mm	1225
21	The distance between forks		mm	1060/250
22	Tread(front /rear)		mm	1000/970
23	Min. Turning radius(outside)		mm	2420
24	Min. Turning radius(inside)		mm	200
25	Min. Intersecting aisle		mm	2400
26	Mast tilt angle		deg	6° / 12°
27	Fork size		mm	1070X125X45
Performance
28	Speeds	Max.Drive speeds(with/without load)	km/h	19/19
29		Lifting speeds (with load)	mm/s	330/370
30		Lowering speeds(with /without full load)	mm/s	350/400
31	Max. tractive force		KN	20/16.3	20/16.3
32	Max.grade ability (with/without full load)		%	15/20	16.5.20
Weight
33	Total weight		kg	4700
34	Weight Distribution full load (front/ rear)		kg	7380/820
35	Weight Distribution zero load(front / rear)		kg	1880/2820
Wheels and Tyres
36	Quantity of wheels			2 X / 2
37	Type of tyres
38	Tires	Front		28X9-15-12PR
39		Rear		6.50-10-10PR
40	Driving Brake			hydraumatic pedal
41	Parking Brake			Mechanical manual
Control device for driving and transmitting
42	Battery		V/AH
49	Number of speeds for transmission			1-1 Power shift transmission
