XL6230 High Rigid Metal Milling Machine for Metal Working
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
XL6336 Horizontal Type Universal Milling Machine With CE ProtectionNegotiableMOQ: 1 -
XL6032C High Rigid Metal Milling Machine for Metal WorkingNegotiableMOQ: 1
-
XL8145 Horizontal Type Universal Milling Machine With CE ProtectionNegotiableMOQ: 1
-
XL8132 High Rigid Metal Milling Machine for Metal WorkingNegotiableMOQ: 1
-
X5746 X5750 High Rigid Metal Milling Machine for Metal WorkingNegotiableMOQ: 1
Product Description
XL6230、XL6230B UNIVERSAL MILLING MACHINE FEATURES:
1. Using one servo motor to control work table’s auto feed on XYZ axes, high torque, energy saving and stable
2. Milling head can swivel 360°, can realize horizontal processing; Full set grind gear guarantee low noise and long service life.
1. Using one servo motor to control work table’s auto feed on XYZ axes, high torque, energy saving and stable
2. Milling head can swivel 360°, can realize horizontal processing; Full set grind gear guarantee low noise and long service life.
Specification |
Unit |
XL6230 |
XL6230C |
|
Table size |
mm |
1270*300 |
1370*300 |
|
X/Y/Z travel |
mm |
720*280*400 |
1000*360*400 |
|
Max rotary angle of table |
° |
Optional±45° |
||
Max table weight |
Kg |
300 |
||
T-slots（NO./width/pitch） |
mm |
3*14*80 |
||
Spindle speed series and range |
rpm |
V 45-1660（11steps） |
||
distance between spindle nose and table surface |
mm |
100-500 |
||
Spindle taper |
7:24 IS040, |
|||
table rapid speed（X/Y/Z） |
mm |
1335、1335、1000 |
||
Table feed（X/Y/Z） |
mm |
X、Y：30-830 |
||
Z：23-625 |
||||
Main motor power |
KW |
3Kw |
||
Feed motor |
KW |
3 axes using a 10N.m servo motor，auto feed and change speeds variably |
||
(3 axes driven by one servo motor) |
||||
Dimensions |
mm |
1730*1760*1700 |
1830*1760*1700 |
|
Machine weight |
kg |
1550 |
1700 |
|

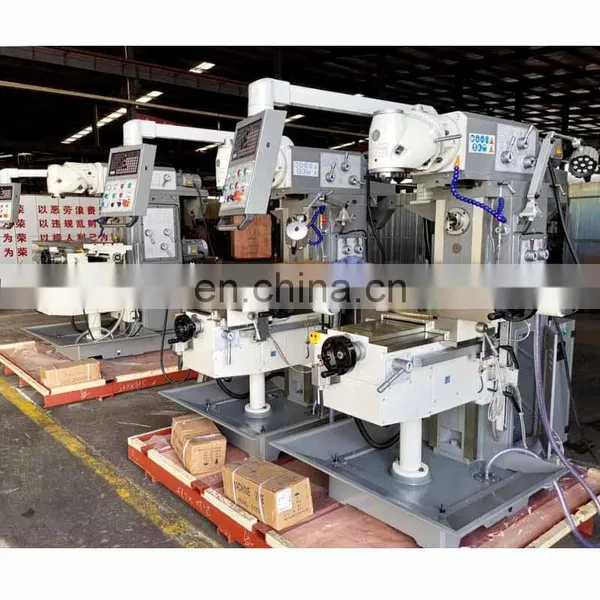

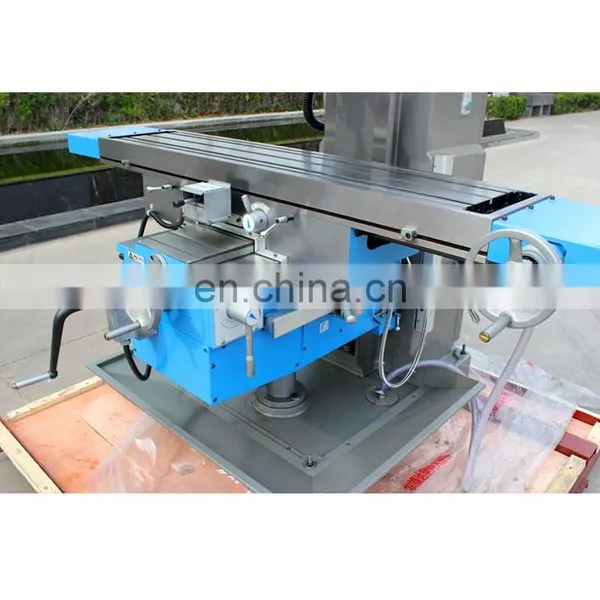

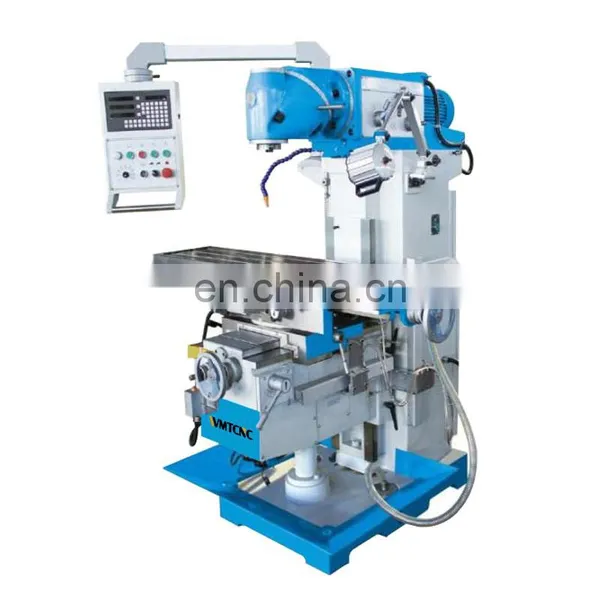

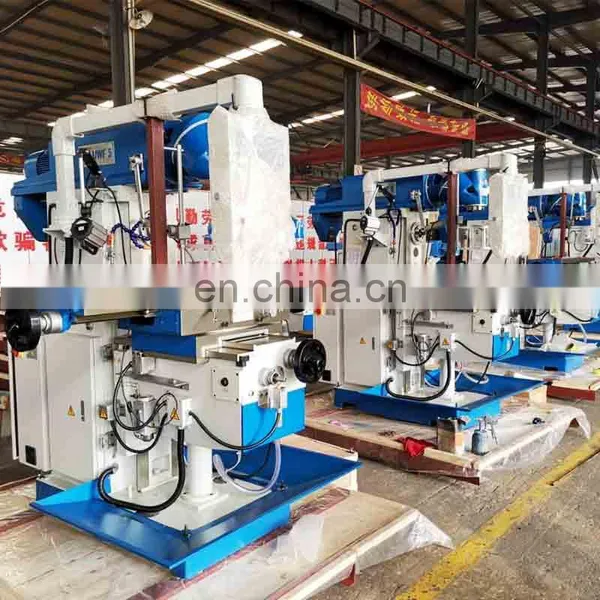

Detailed Images
Optional Accessories:
SINO DRO
Spindle guard
CE Schneider Electric
Aluminum Hang arm
160 milling vice
ISO40-40mm milling arbor
Rotary table ±45°
LED lamb
SINO DRO
Spindle guard
CE Schneider Electric
Aluminum Hang arm
160 milling vice
ISO40-40mm milling arbor
Rotary table ±45°
LED lamb
Company Profile
Professional Service
Customers' Feedback
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
