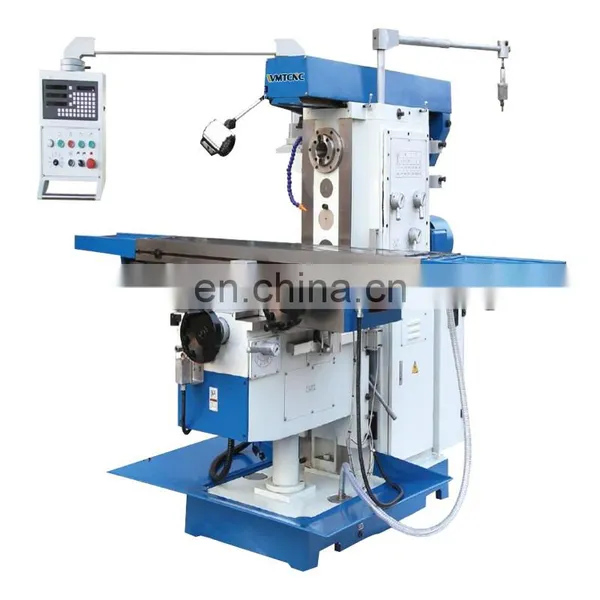

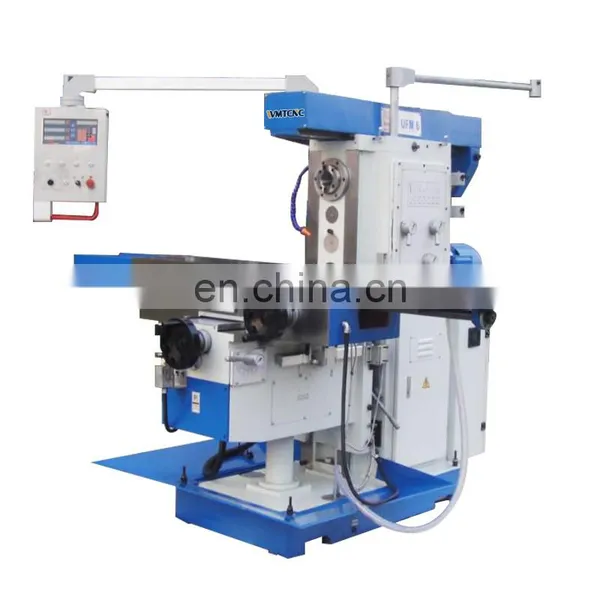

XL6032C High Rigid Metal Milling Machine for Metal Working
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
XL8145 Horizontal Type Universal Milling Machine With CE ProtectionNegotiableMOQ: 1 -
XL8132 High Rigid Metal Milling Machine for Metal WorkingNegotiableMOQ: 1
-
X5746 X5750 High Rigid Metal Milling Machine for Metal WorkingNegotiableMOQ: 1
-
Industrial Type Bench Drilling Machine 12mm Drill Capacity Z4112 Z4112B Bench Drill Press With Metal WorkingNegotiableMOQ: 1
-
Stand Drilling Machine Press Z4116 Z4116B Drill Press Zj4116 Industrial Type Bench Drilling MachineNegotiableMOQ: 1
Product Description
XL6032C XL6032CL Universal Milling Machine Features:
1. Extremely rigid machine bed made of high-strength HT-250 cast-iron with heavy ribbing;
2. Precision-ground guide ways with hardened surfaces for long-term accuracy and wear-resistance;
3. Large work area of 1600x 320 mm and up to 450 kg table load capacity;
4. Quiet, precision-made head stock gears with hardened and ground gears;
5. Powerful axis servo-motors allow infinite adjustment of feeds on all 3 axes;
6. 5.5 kW main drive guarantees high torque;
7. Coolant system and chip tray are Included.
1. Extremely rigid machine bed made of high-strength HT-250 cast-iron with heavy ribbing;
2. Precision-ground guide ways with hardened surfaces for long-term accuracy and wear-resistance;
3. Large work area of 1600x 320 mm and up to 450 kg table load capacity;
4. Quiet, precision-made head stock gears with hardened and ground gears;
5. Powerful axis servo-motors allow infinite adjustment of feeds on all 3 axes;
6. 5.5 kW main drive guarantees high torque;
7. Coolant system and chip tray are Included.
Specification |
Unit |
XL6032C |
XL6032CL |
Table size |
mm |
1325×320 |
1600×320 |
Table Travel (X,Y,Z) |
mm |
1100、300、450mm |
1300、300、450mm |
Spindle taper |
7:24 ISO50 |
7:24 ISO50 |
|
Rapid speed of table (X,Y,Z) |
mm/min |
1200、800、600 |
1200、800、600 |
Table feed (X,Y,Z) 8 steps |
mm/min |
X: 30-750 Y: 20-500 Z: 15--375 |
X: 30-750 Y: 20-500 Z：15--375 |
T-slots（NO./Width/Pitch) |
mm |
3/18/80 |
3/18/80 |
Spindle speed range |
rpm |
12 steps 60-1800 |
12 steps 60-1800 |
Distance between spindle nose and table surface |
mm |
20-420 |
20-420 |
T-slots （NO.:/Width/pitch） |
3/18/80 |
3/18/80 |
|
Arm travel |
mm |
500 |
500 |
Distance between spindle axis and colomn guide way |
mm |
175 |
175 |
Main motor |
kw |
5.5 |
5.5 |
X,Y,Z to feed Ac servo motor torque |
N.m |
15 Nm (2.63KW) |
15 Nm (2.63KW) |
Overall size |
mm |
2520×2100×1870 |
2520×2100×1870 |
Net weight |
kg |
2450 |
2550 |

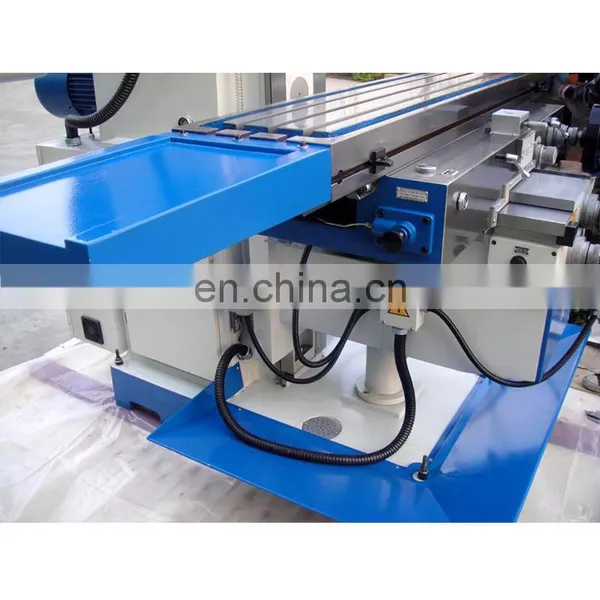

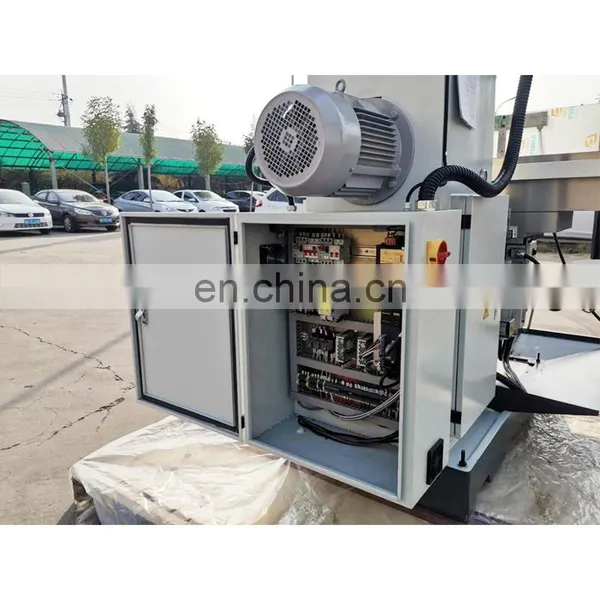

Detailed Images
Optional Accessories:
SINO DRO
CE Schneider Electric
Table cover
Automatic oil lubrication
Machine Vice QM160mm
Rotary work table ±45°
combined clamp M16
lamp LED
Aluminum suspension arm
SINO DRO
CE Schneider Electric
Table cover
Automatic oil lubrication
Machine Vice QM160mm
Rotary work table ±45°
combined clamp M16
lamp LED
Aluminum suspension arm
Company Profile
Professional Service
Customers' Feedback
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
