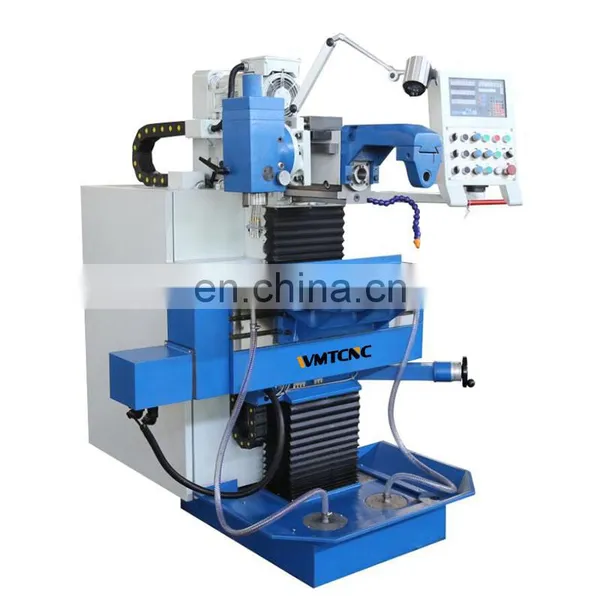

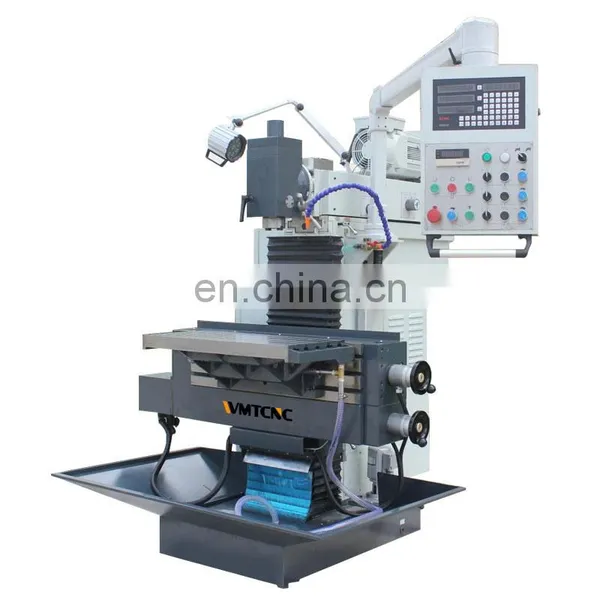

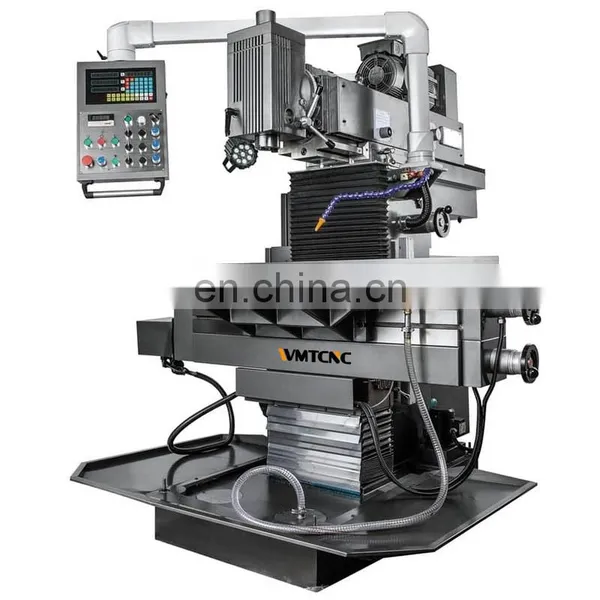

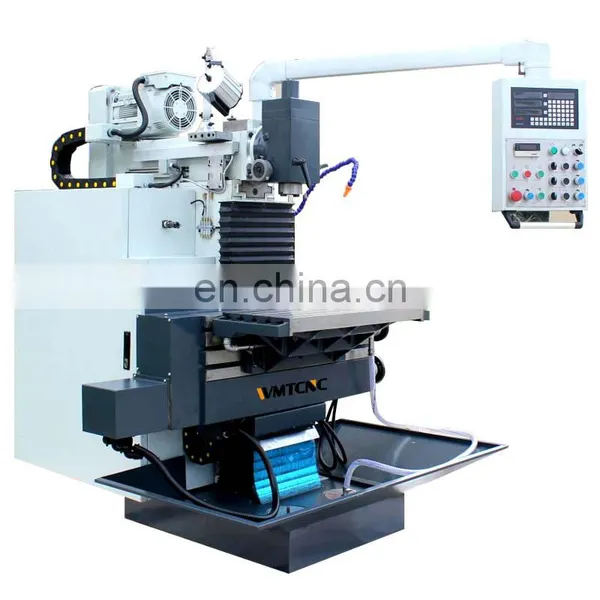

XL8145 Horizontal Type Universal Milling Machine With CE Protection
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
XL8132 High Rigid Metal Milling Machine for Metal WorkingNegotiableMOQ: 1 -
X5746 X5750 High Rigid Metal Milling Machine for Metal WorkingNegotiableMOQ: 1
-
Industrial Type Bench Drilling Machine 12mm Drill Capacity Z4112 Z4112B Bench Drill Press With Metal WorkingNegotiableMOQ: 1
-
Stand Drilling Machine Press Z4116 Z4116B Drill Press Zj4116 Industrial Type Bench Drilling MachineNegotiableMOQ: 1
-
Industrial Type Bench Drilling Machine Z4120B 20mm Drill Press Heavy Duty Drill PressNegotiableMOQ: 1
Product Description
XL8145 Universal Milling Machine Features:
1. Ball screws and servo motors adopted on X Y Z 3-axis for easy and precise feeds.
2. Infinitely variable vertical cutting head with a swivel ±90°and the spindle controlled by variable frequency motor.
3. Electronic handwheel adopted on X Y Z 3-axis ,easy operating.
4. Automatic oil lubrication, cooling system, Chip collector tray, CE Schneider Electric are standard.
1. Ball screws and servo motors adopted on X Y Z 3-axis for easy and precise feeds.
2. Infinitely variable vertical cutting head with a swivel ±90°and the spindle controlled by variable frequency motor.
3. Electronic handwheel adopted on X Y Z 3-axis ,easy operating.
4. Automatic oil lubrication, cooling system, Chip collector tray, CE Schneider Electric are standard.
Specification |
Unit |
XL8145 |
||
Work space dimensions |
mm |
850*450 |
||
Vertical table dimensions |
mm |
1190*250 |
||
T-slots,work table |
mm |
(7)14*63 |
||
T-slots,vertical table |
mm |
(3)14*63 |
||
Table load capacity |
Kg |
300 |
||
travels |
Longitudinal(X) |
mm |
600 |
|
Transverse(Y) |
mm |
450 |
||
Vertical(Z) |
mm |
450 |
||
Speed range |
rpm |
(2)40-2000 |
||
Spindle mount |
NT40 |
|||
Feeds X Y Z axis |
mm/min |
10-1000 |
||
Rapid feed |
mm/min |
1200 |
||
Quill stroke |
mm |
60 |
||
Main motor rating |
Kw |
5.5 |
||
Feed motor rating |
N.m |
X：10 |
||
Y：10 |
||||
Z：15 |
||||
Dimensions (L*W*H) |
mm |
1600*1800*2000 |
||
weight |
Kg |
1750 |
||

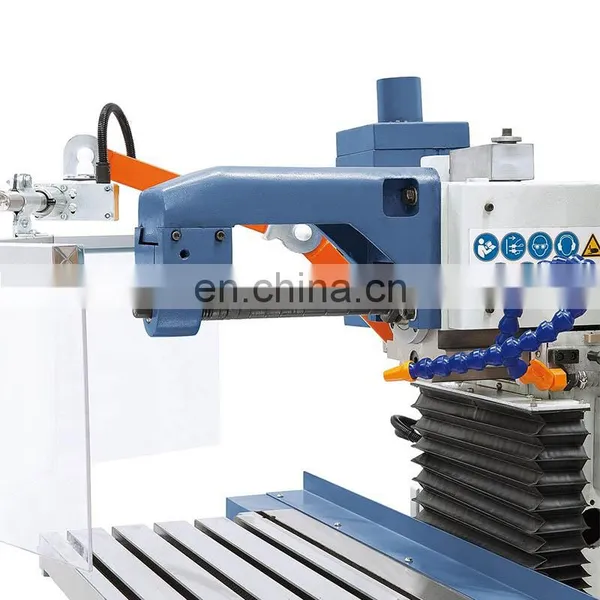

Detailed Images
Optional Accessories:
DRO
Spindle cover
Table cover
Universal swivel table XL8145
Dividing head F12100A
Machine Vice QM160mm
Drill chuck ISO40-B18
combined clamp M12
Company Profile
Professional Service
Customers' Feedback
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
