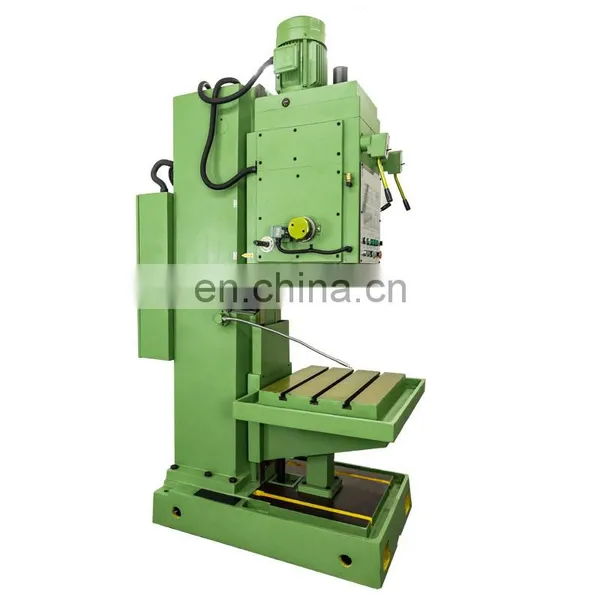

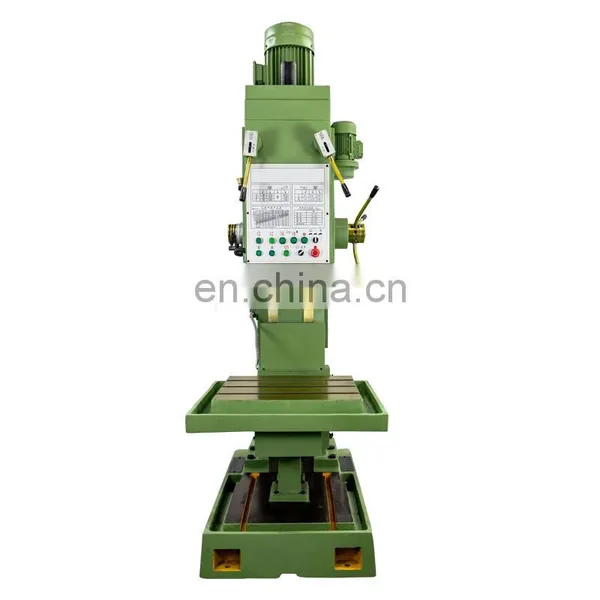

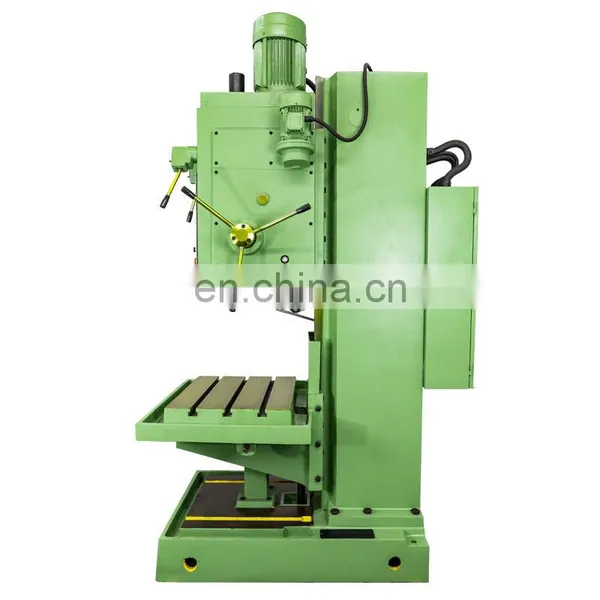

Large Drilling Machine Z5163B for Mechanic Power Feed
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Z5040 Multi-functional Vertical Drilling Machine With CE StandardNegotiableMOQ: 1 -
Variable Speed Milling Drilling Machine ZAY7045V Milling Machine for Metal WorkingNegotiableMOQ: 1
-
XL6230 High Rigid Metal Milling Machine for Metal WorkingNegotiableMOQ: 1
-
XL6336 Horizontal Type Universal Milling Machine With CE ProtectionNegotiableMOQ: 1
-
XL6032C High Rigid Metal Milling Machine for Metal WorkingNegotiableMOQ: 1
Product Description
Specification |
Z5163B |
Max. drilling diameter |
63mm |
Spindle taper |
MT5 |
Maximum spindle feed resistance |
30000N |
Maximum spindle torque N.M |
800 N.m |
The spindle span |
375mm |
Stroke of spindle quill |
250mm |
Spindle box travel(manual) |
250mm |
Spindle speed step |
9 |
Spindle speed range |
40-570rpm |
Spindle feed step |
6 |
Spindle feed range |
0.11-0.75mm/min |
Worktable size |
650x550mm |
Vertical travel |
300mm |
Max distance between spindle and table surface |
800mm |
Main motor power |
5.5kw |
Motor of cooling pumps |
40w |
Speed of cooling pumps |
12L/min |
Overall size |
1050x1200x2800mm |
Net weight |
2500kg |
Company Profile
Professional Service
Customers' Feedback
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
