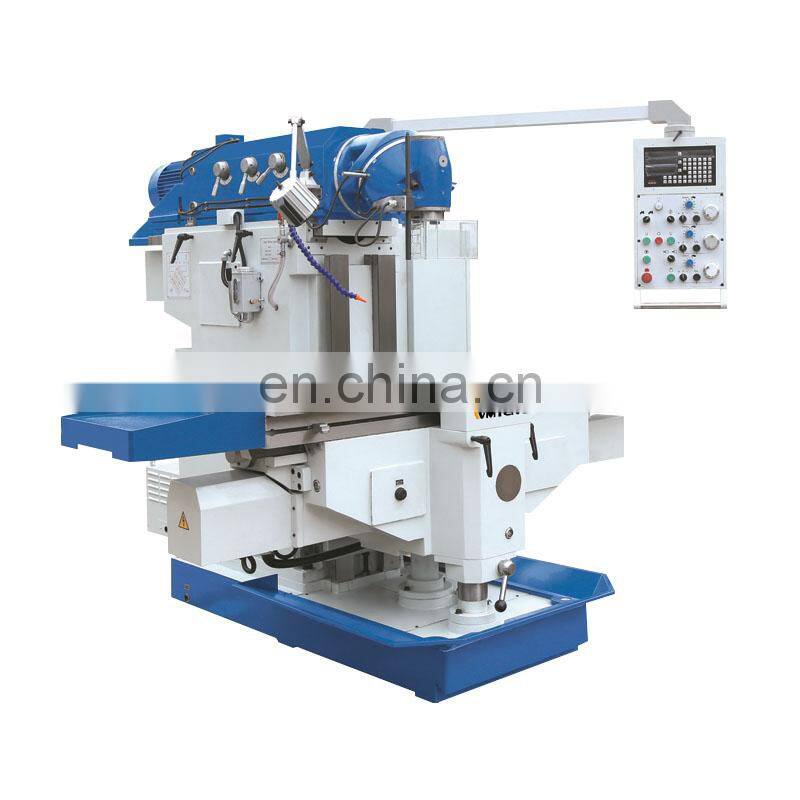

X5746 X5750 high rigid metal milling machine for metal working
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Industrial Type Bench Drilling Machine 12mm Drill Capacity Z4112 Z4112B Bench Drill Press with Metal Working
-
stand drilling machine press Z4116 Z4116B drill press zj4116 industrial type bench drilling machine
-
industrial type bench drilling machine Z4120B 20mm drill press heavy duty drill press
-
25mm drill press Z4125B hand drill press 380v drill press
-
Bench drill XZ4016 drilling and milling machine industrial type small table drill press machine
-
drill press 16mm auto-feed drilling machine JZB4116 bench drill press 4116
Product Description
Product Description
X5746 X5750 Universal Milling Machine Features:
1. Table 3 axes with ball screws, high precision;

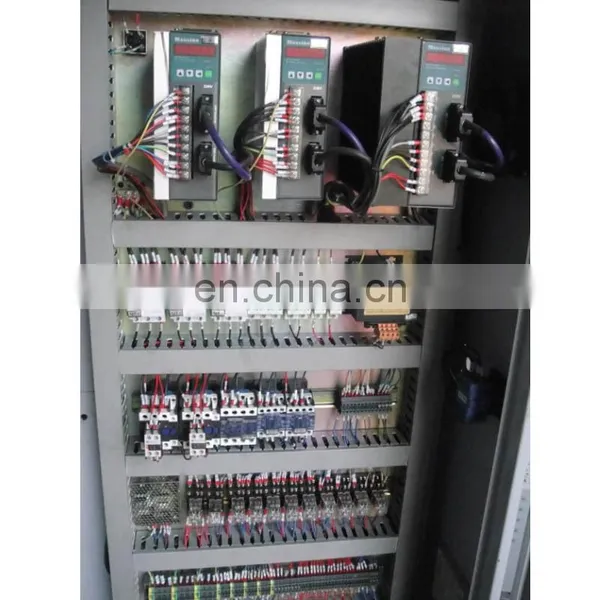

2. Table feeding with 3 separate servo motors, variable speeds, not interfere each other,high reliability,easy to operate;
3. Mechanical change speeds in head stock, powerful milling;
4. Table with an extra supporting column, big load, high accuracy;
5. Table with an extra supporting column, big load, high accuracy;
6. It can mill any angle surface through front half-sphere by swivelling milling head.
Specifications | Unit | X5746 | X5750 | X5750A | ||
Table size | mm | 460*1235 | 500*1600 | 500*2000 | ||
T-slots(NO./width/pitch) | mm | 5*18*80 | ||||
Table travel (X/Y/Z) | mm | 900*650*450 | 1200*700*500 | 1400*700*500 | ||
Swivel angle of milling head | 360° | |||||
Spindle taper | ISO40 | ISO50 | ISO50 | |||
Spindle speed range | rpm | (27) 30-2050 | ||||
Table feed(X/Y/Z) | mm/min | 10-1000/10-1000/6-640 | 10-1000/10-1000/5-500 | |||
Table rapid speed | mm/min | 2200/2200/1100 | ||||
Distance between spindle nose and table surface | mm | 50-500 | 50-550 | |||
Distance from spindle center line to column | mm | 36-686 | 45-745 | |||
Main motor power | Kw | 5.5 | 7.5 | 7.5 | ||
Feed motor | Kw | AC servo motor X/Y:18NM; Z: 27NM | ||||
Max load | Kg | 800 | 1800 | |||
Overall size | mm | 1835*2362*2090 | 2625*2460*2080 | 2625*2860*2080 | ||
weight | kg | 3600 | 4200 | 4500 | ||
Detailed Images

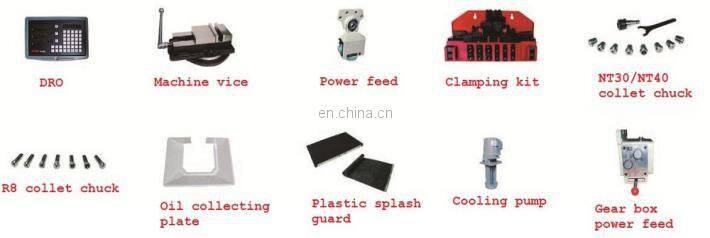

Optional Accessories:
Schneider electric components;
Aluminum alloy support arm;
3-axis DRO;
Spindle cover;
Work table cover;
LED work lamp;
Automatic Lubrication Pump.
Company Profile
Professional Service
Customers' Feedback
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
