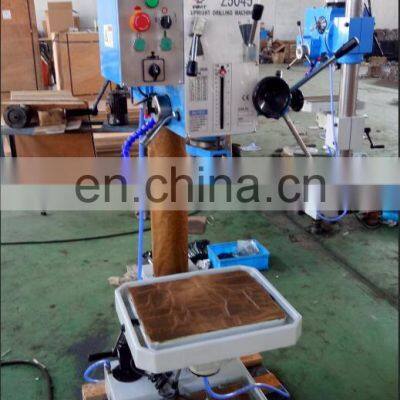

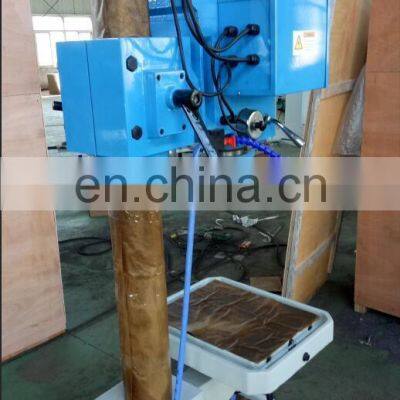

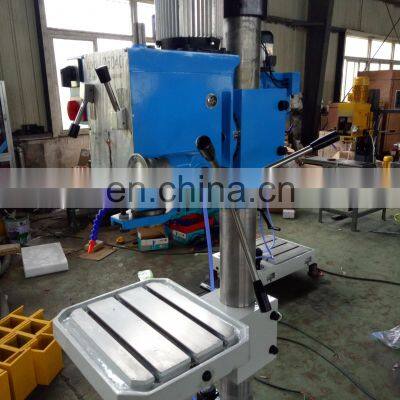

Z5045 Vertical Drilling Machine With CE
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Z5045/1 Vertical Drilling Machine With Spindle Auto-feedingNegotiableMOQ: 1 -
Z5045C High Precision Vertical Drilling Machine for Metal WorkingNegotiableMOQ: 1
-
ZX5325C China Vertical Mini Metal Milling Machine for SaleNegotiableMOQ: 1
-
ZX5325C Vertical Manual Mills Machinery From China Factory With Competitive PriceNegotiableMOQ: 1
-
Factory Direct Sell Vertical Drilling Machine Z5150B With Cheap PriceNegotiableMOQ: 1
Vertical Drilling Machine Z5032,Z5040,Z5045
1,Drilling,Milling and Tapping.
2,Headstock and worktable up and down perpendicularly.
3,Head swivels 360 ° horizontally
4.Gear driven lower noise
5,Positive spindle lock
Specification |
Z5032/1 Z5040/1 Z5045/1 |
Z5032 Z5040 Z5045 |
|
Max.drilling capacity |
Φ32mm/Φ40mm/Φ45mm |
||
Spindle taper |
MT3/MT4/R8 |
||
Spindle travel |
Φ130mm |
||
Step of spindle speed |
6 steps |
||
Range of spindle speed 50Hz |
80-1250rpm |
||
60Hz |
95-1500rpm |
||
Step of spindle auto-feeding |
6 steps |
/ |
|
Range of spindle auto-feeding amount |
0.06-0.30rpm |
/ |
|
Min.distance from spindle axis to column |
290mm |
||
Max.distance from spindle nose to worktable |
725mm |
700mm |
|
Max.distance from spindle nose to stand table |
1125mm |
||
Max.travel of headstock |
Φ250mm |
||
Swivel angle of headstock(horizontal/vertical) |
360° |
||
Max.travel of worktable bracket |
Φ600mm |
||
Worktable size of avaliablity |
380×300mm |
730×210mm |
|
Swivel angle of table horizontally |
360° |
||
Table leaned |
±45° |
/ |
|
Size of stand worktable of avaliability |
417×416mm |
||
Motor Power |
0.75kw/1.1kw/1.5kw |
0.75kw/1.1kw/1.5kw |
|
Speed of motor |
1400rpm |
1400rpm |
|
N.W/G.W |
440/490kgs |
470/530kgs |
|
Packing size |
1850×750×1000mm |
1850×950×1000mm |
|
Loading amount/20" container |
18pcs |
12pcs |
|
