X6132 Factory Direct Sales Universal Knee-type Milling Machine Price
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
X6228B China Universal Milling Machine With Swivel HeadNegotiableMOQ: 1 -
X6336 Chinese Vertical and Horizontal Dual-purpose Metal Milling MachineNegotiableMOQ: 1
-
Z3063X20/1 Metal Cutting Hydraulic Radial Drilling Machine With CENegotiableMOQ: 1
-
Z3063X20/1 China Hydraulic Radial Drilling Machine Metal DrillNegotiableMOQ: 1
-
ZN4025 Vertical Drilling Machine With Cheap PriceNegotiableMOQ: 1
Product Description
Specification | X6132 |
Table size | 320X1325 mm |
Max Longitudinal travel(manual/auto) | 700/680 mm |
Max transverse travel(manual/auto) | 255/240 mm |
Max vertical travel(manual/auto) | 320/300 mm |
Max rotary angle | ±45° |
Distance between spindle axis table | 30/350 mm |
Spindle speed step | 18 steps |
Spindle speed range | 30~1500 |
Feed range of table travel | 18 steps |
Range of Table Feeds：Longitudinal | 23.5-1180 mm/min |
Range of Table Feeds：Cross | 23.5-1180 mm/min |
Range of Table Feeds：Vertical | 8-394 mm/min |
Table Rapid Traverse： Longitudinal | 2300 mm/min |
Table Rapid Traverse：Feeds：Cross | 2300 mm/min |
Table Rapid Traverse： Vertical | 770 mm/min |
Spindle taper no | ISO50 7:24 |
Spindle bore | 29mm |
Main motor power | 7.5 |
Feed motor power | 1.5 |
Overall size (L x W x H) | 2294X1770X1610 |
N.W/G.W | 2650/2950 |

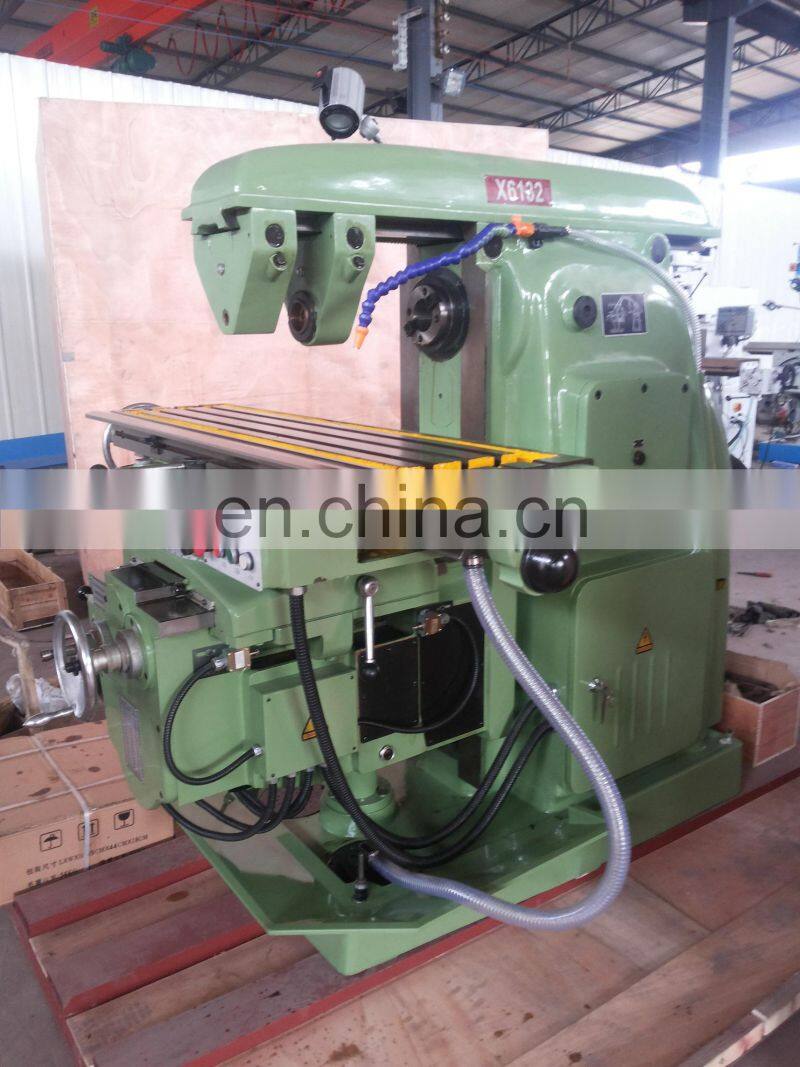

Detailed machine photos:
